Information Bus

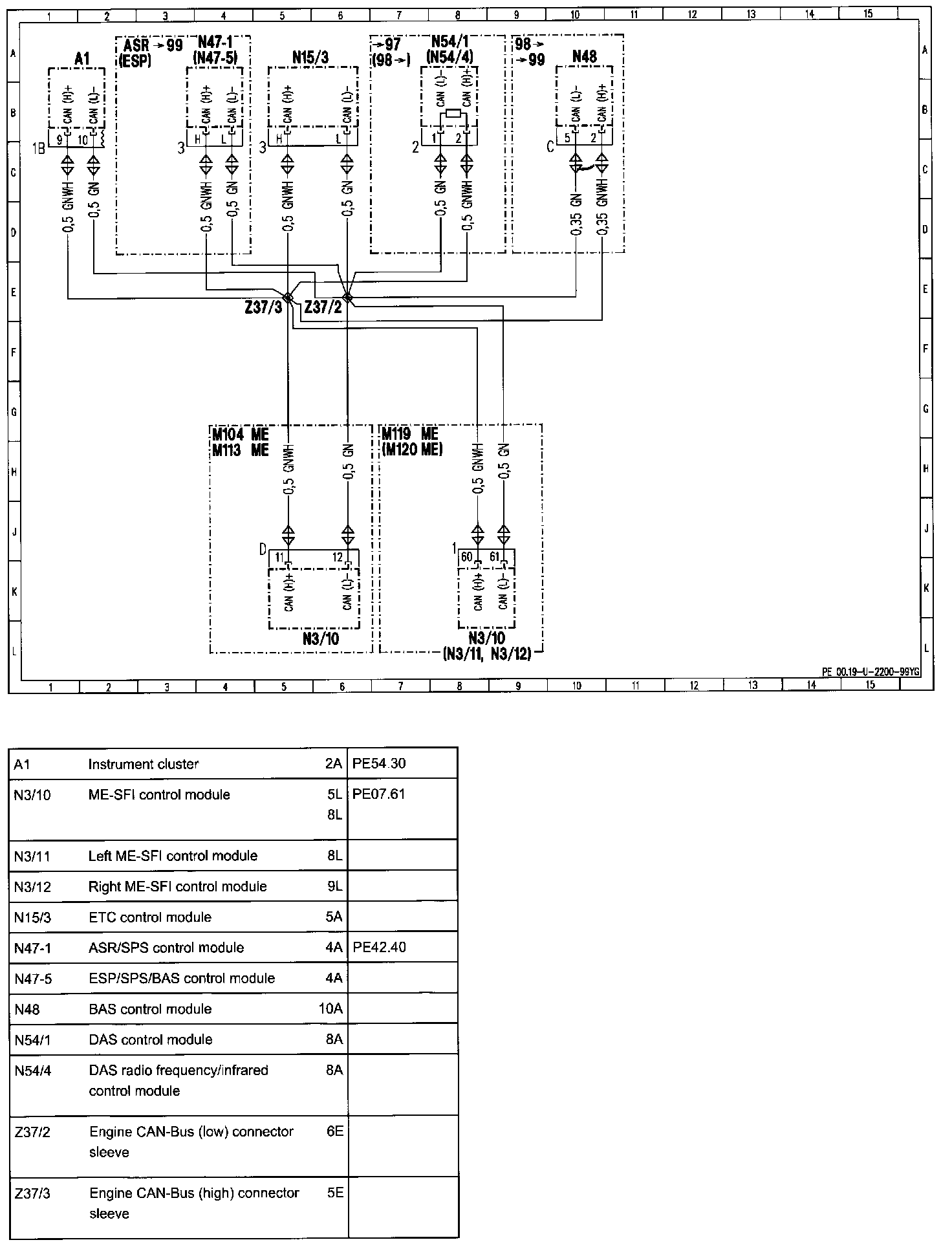

CAN Bus - Engine Compartment
PE00.19-U-2200YG:

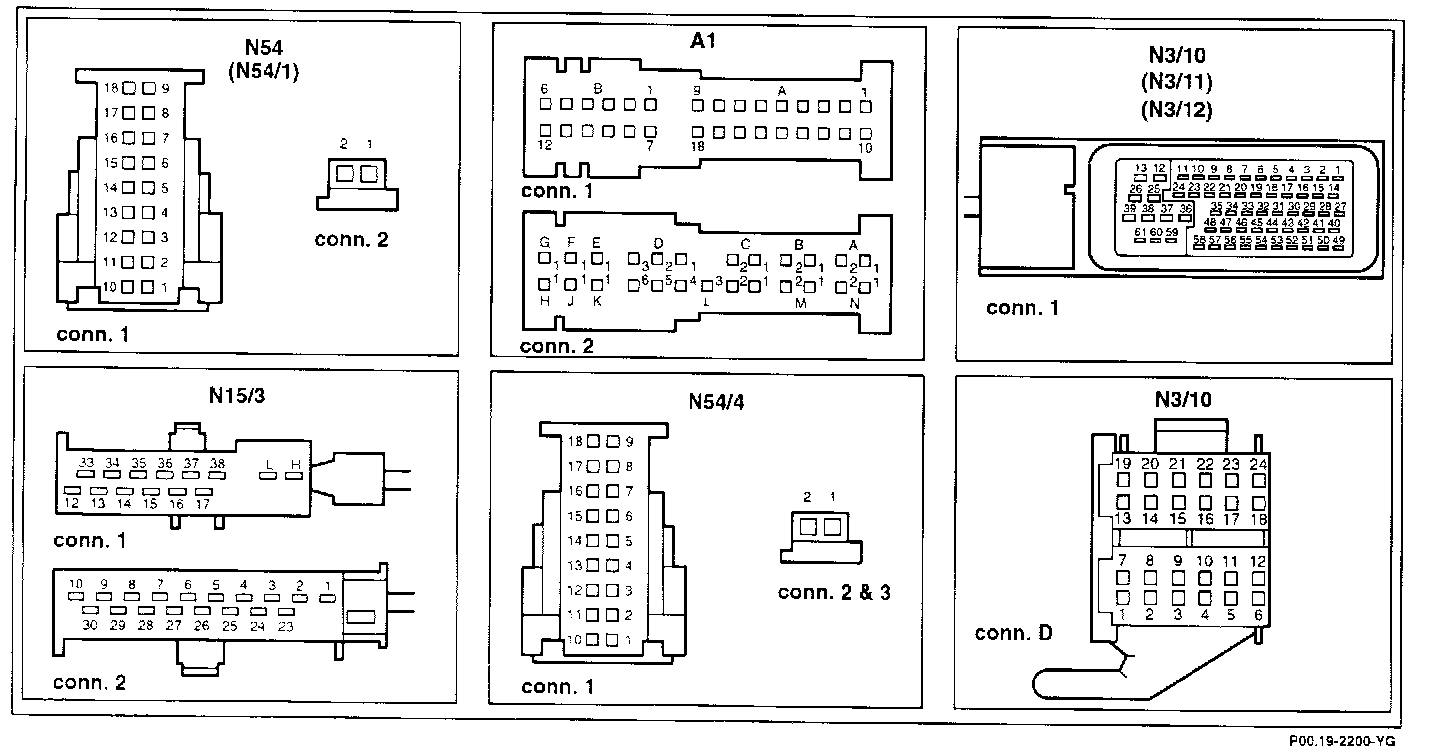

Connector Assignment:
Pin Information:
