Electronic Stability Program (ESP) PE42.45-U-2000YA

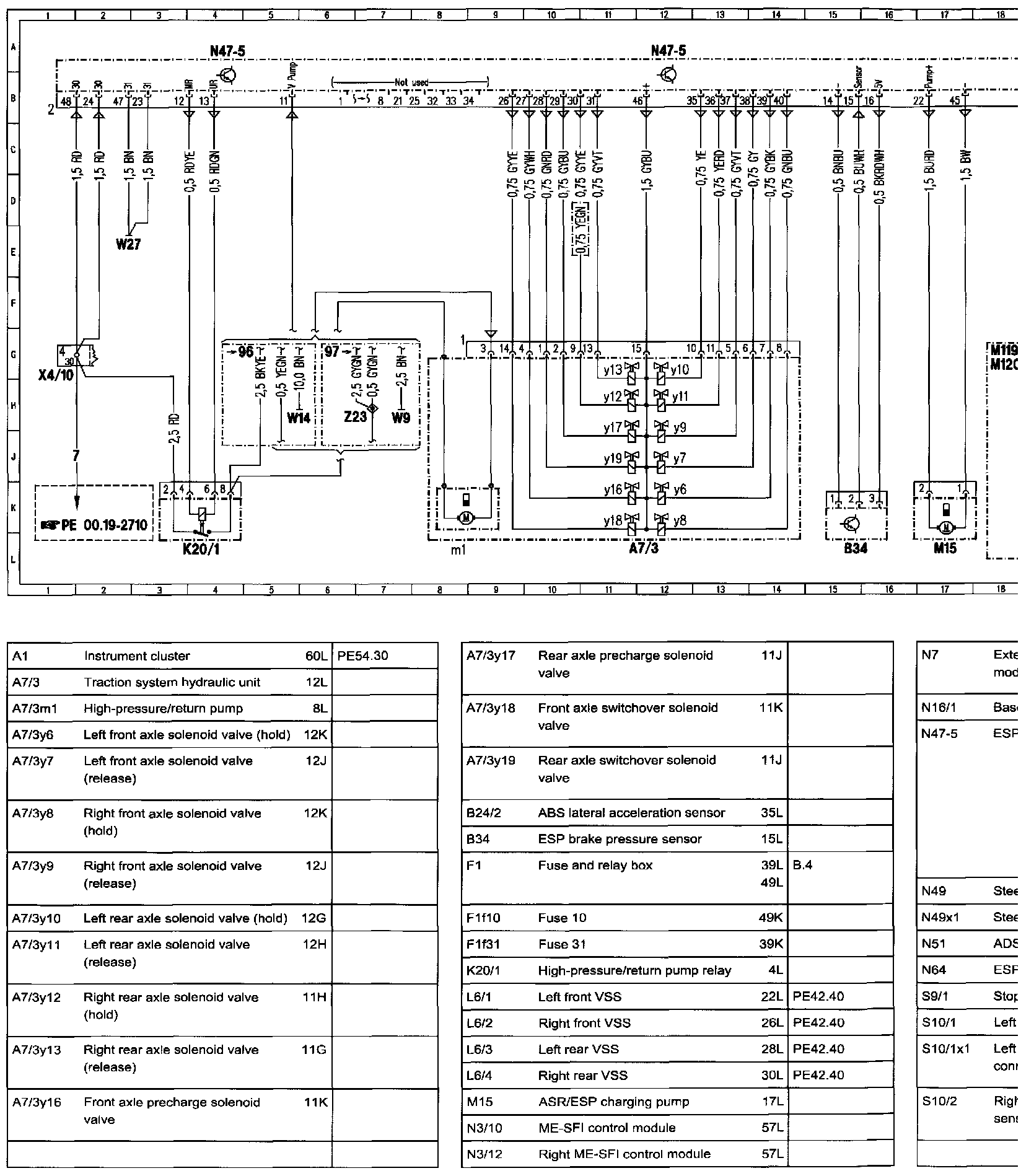

Wiring Diagram

3��%� �%�p�%���%PE42.45-U-2000YA:

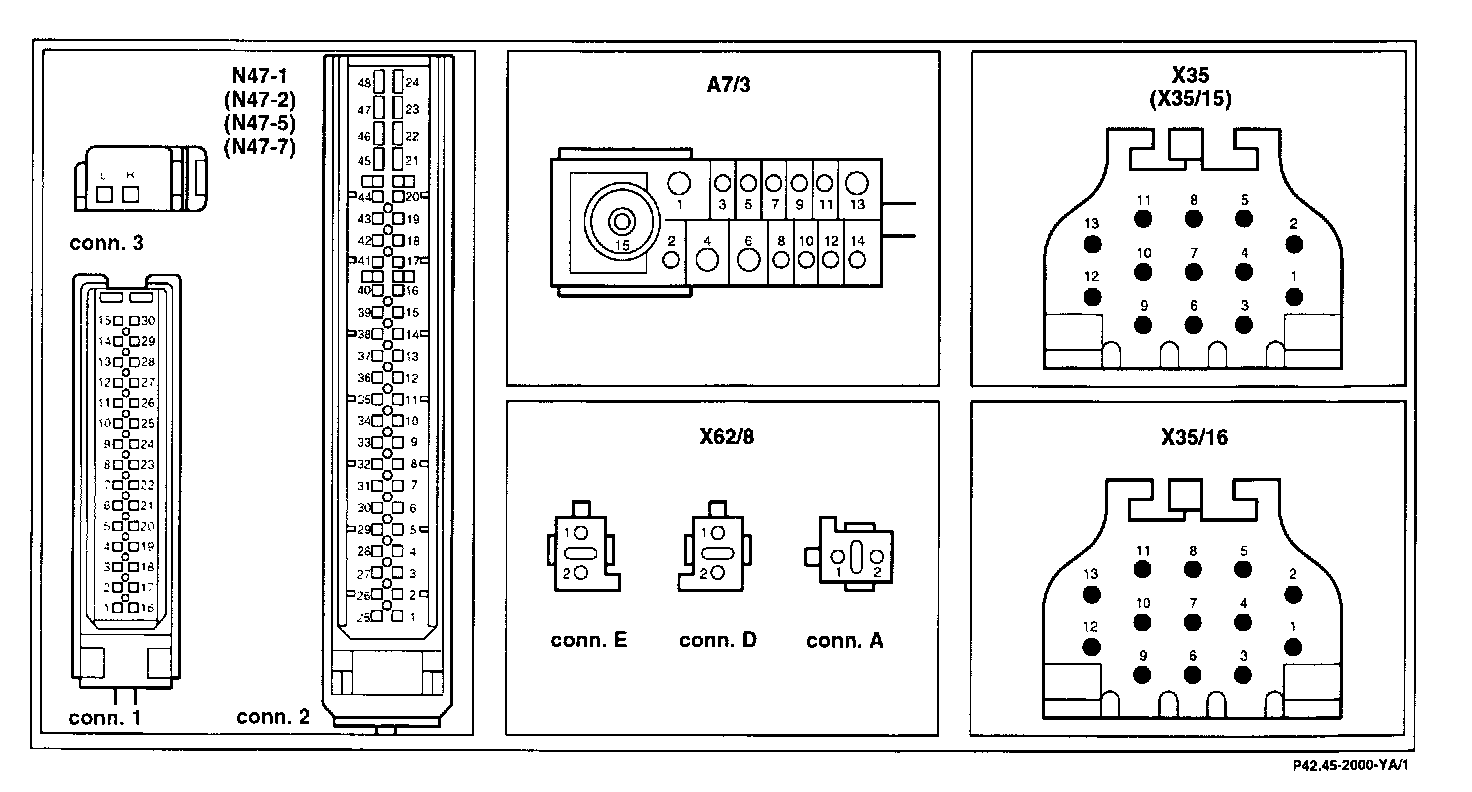

Connector Assignment:

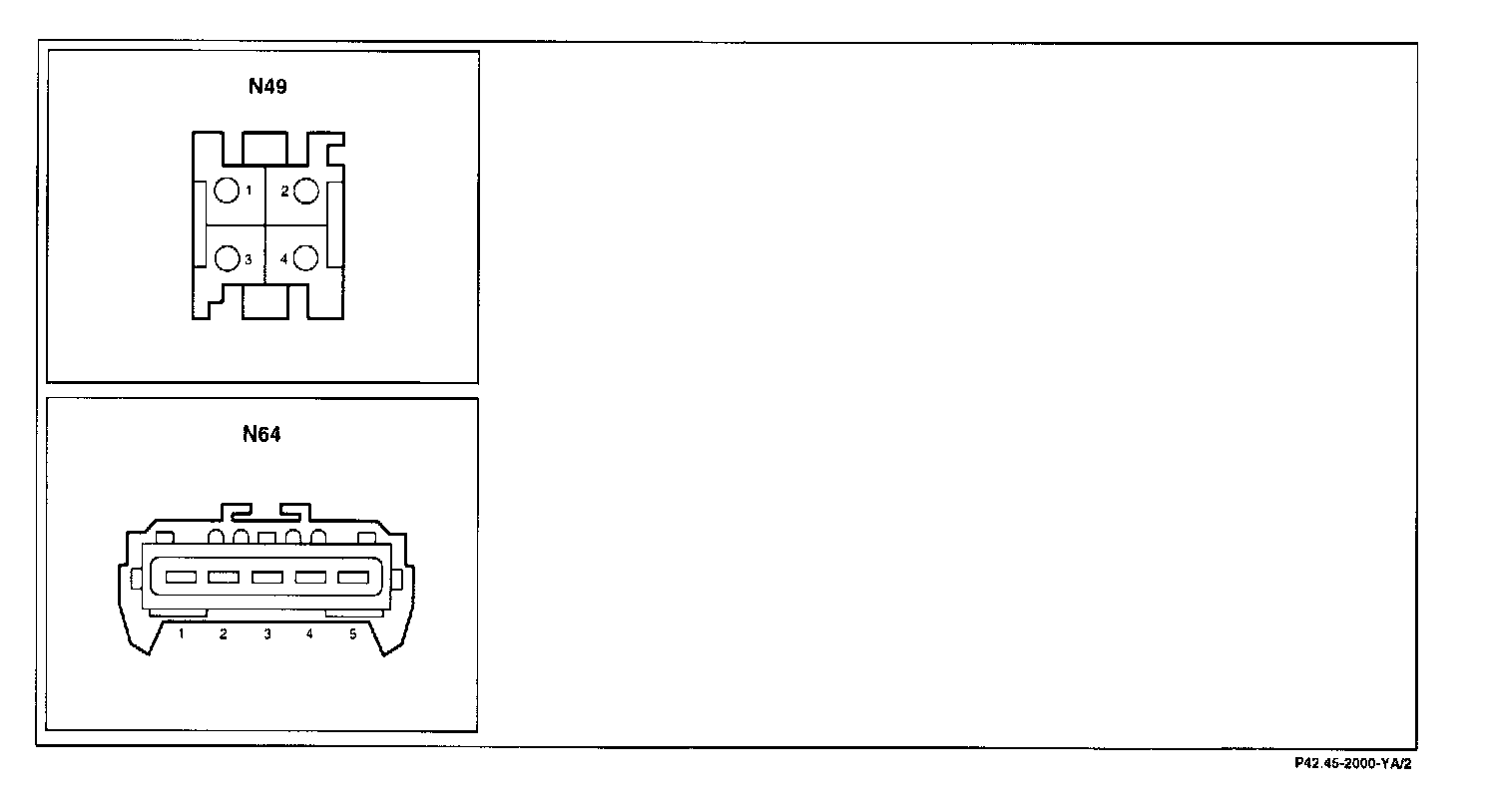

Connector Assignment:

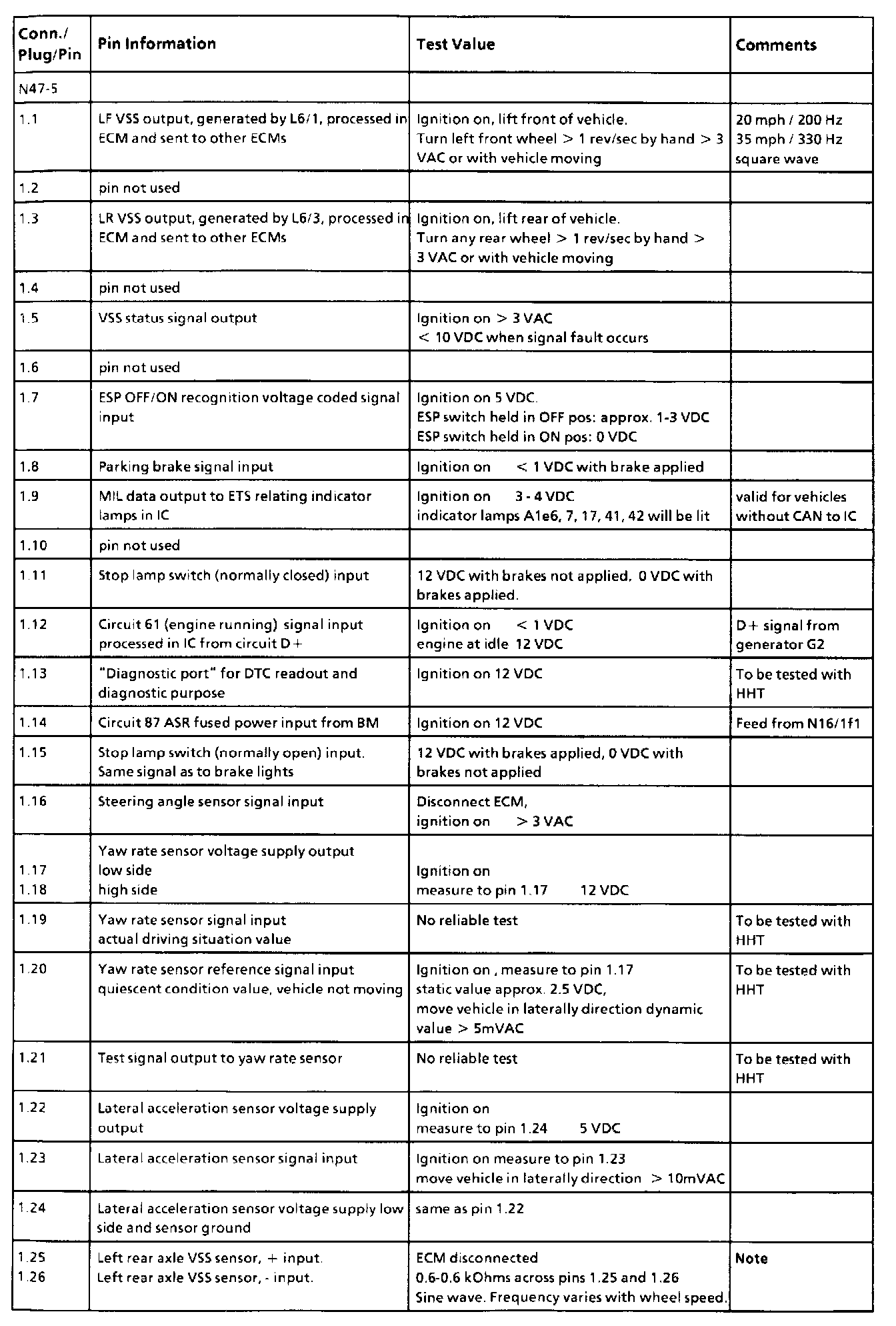

Pin Information, Part 1:

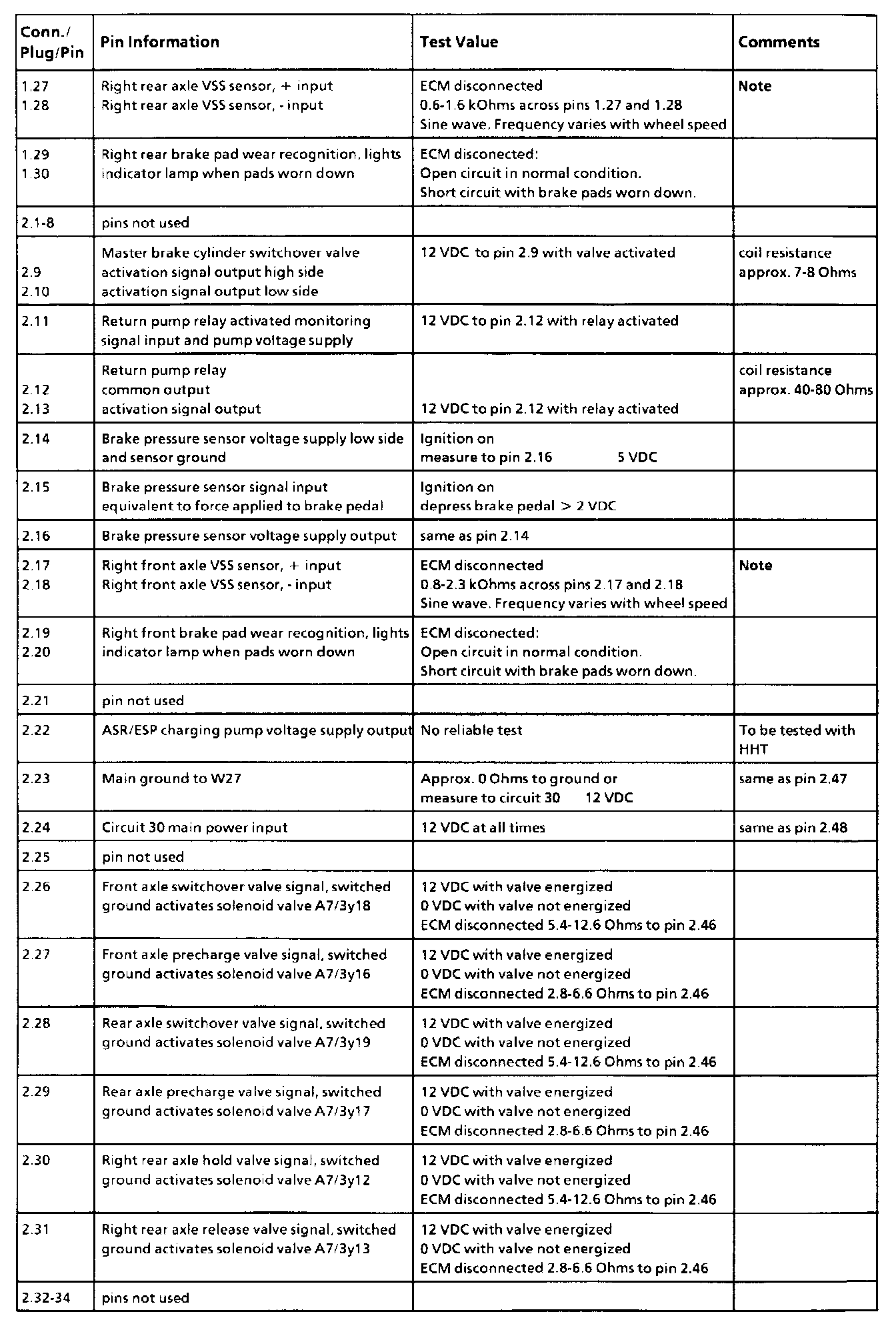

Pin Information, Part 2:

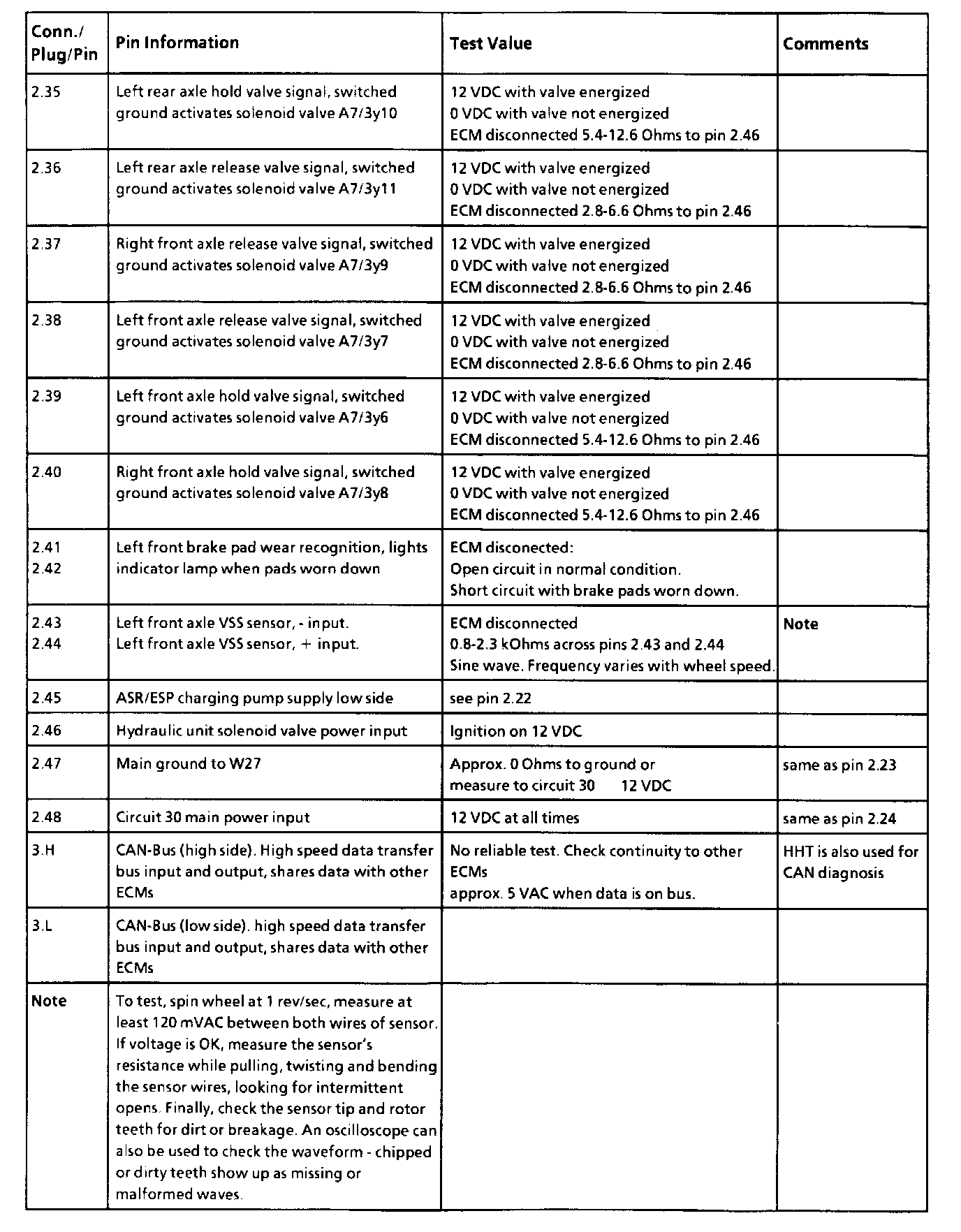

Pin Information, Part 3:






All values measured to ground unless otherwise noted.
