Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 1996 >> SL 500 (129.067) V8-5.0L (119.982) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Vehicles With ME-SFI >> Chassis/Body Mounted Components

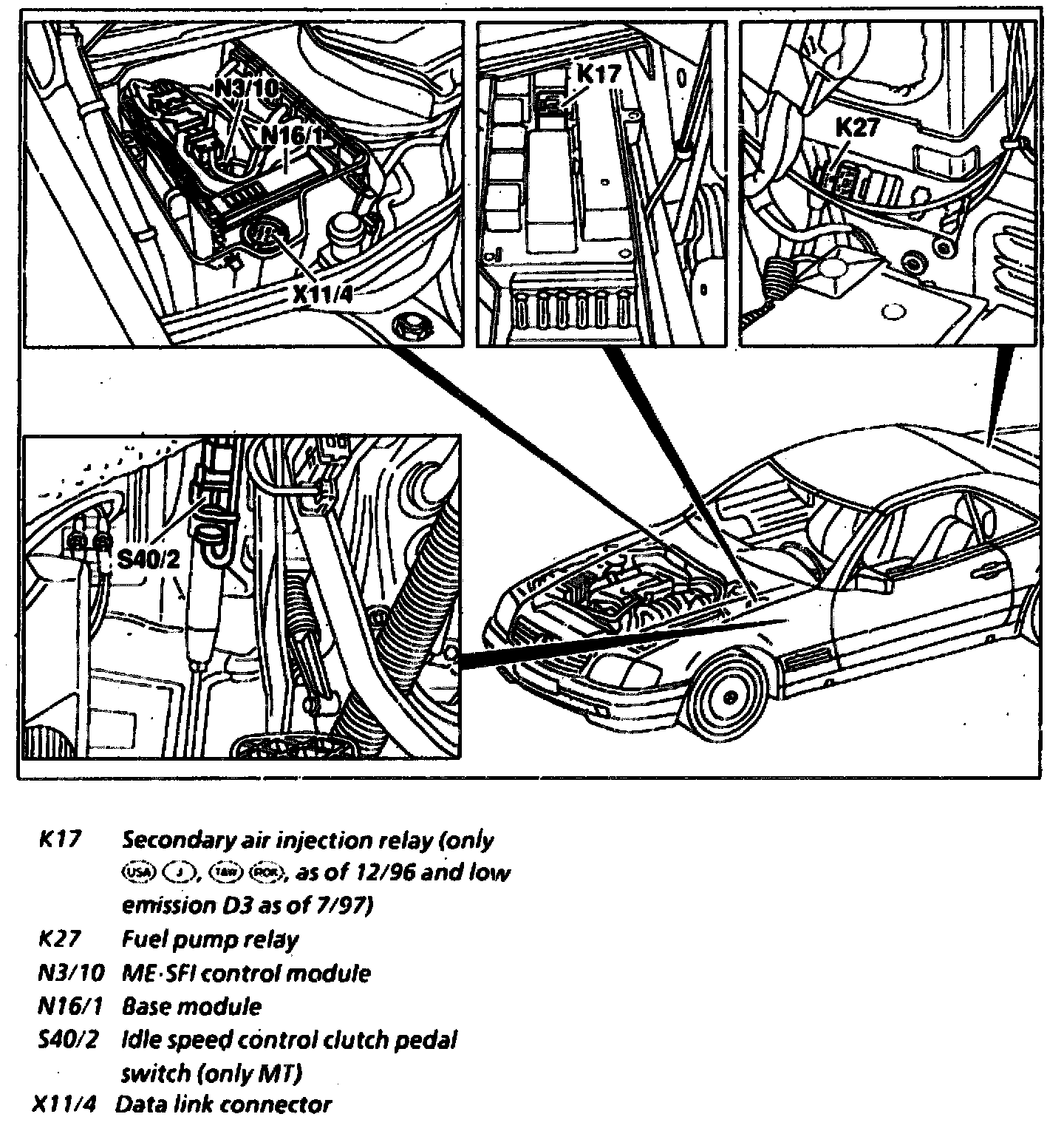

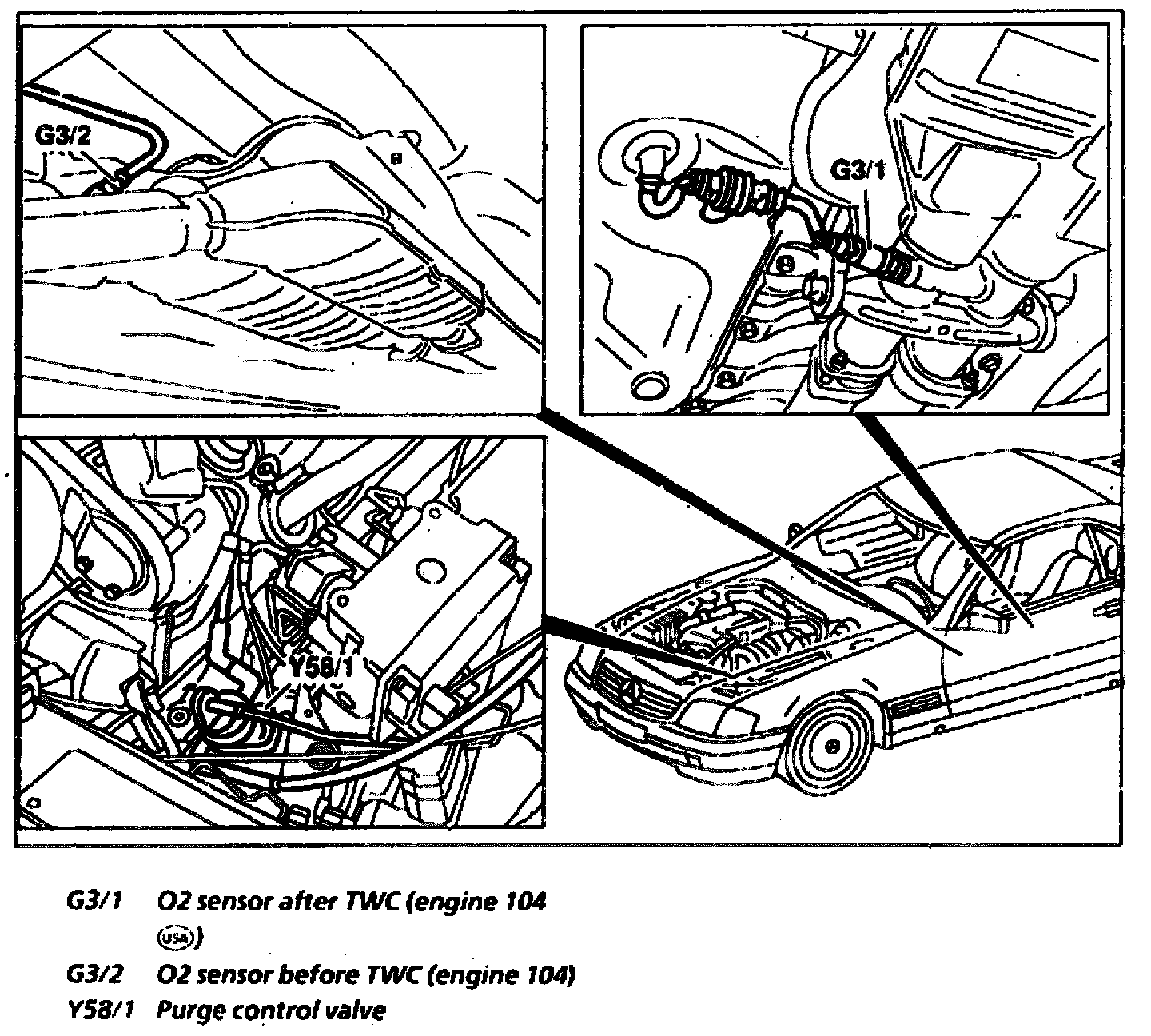

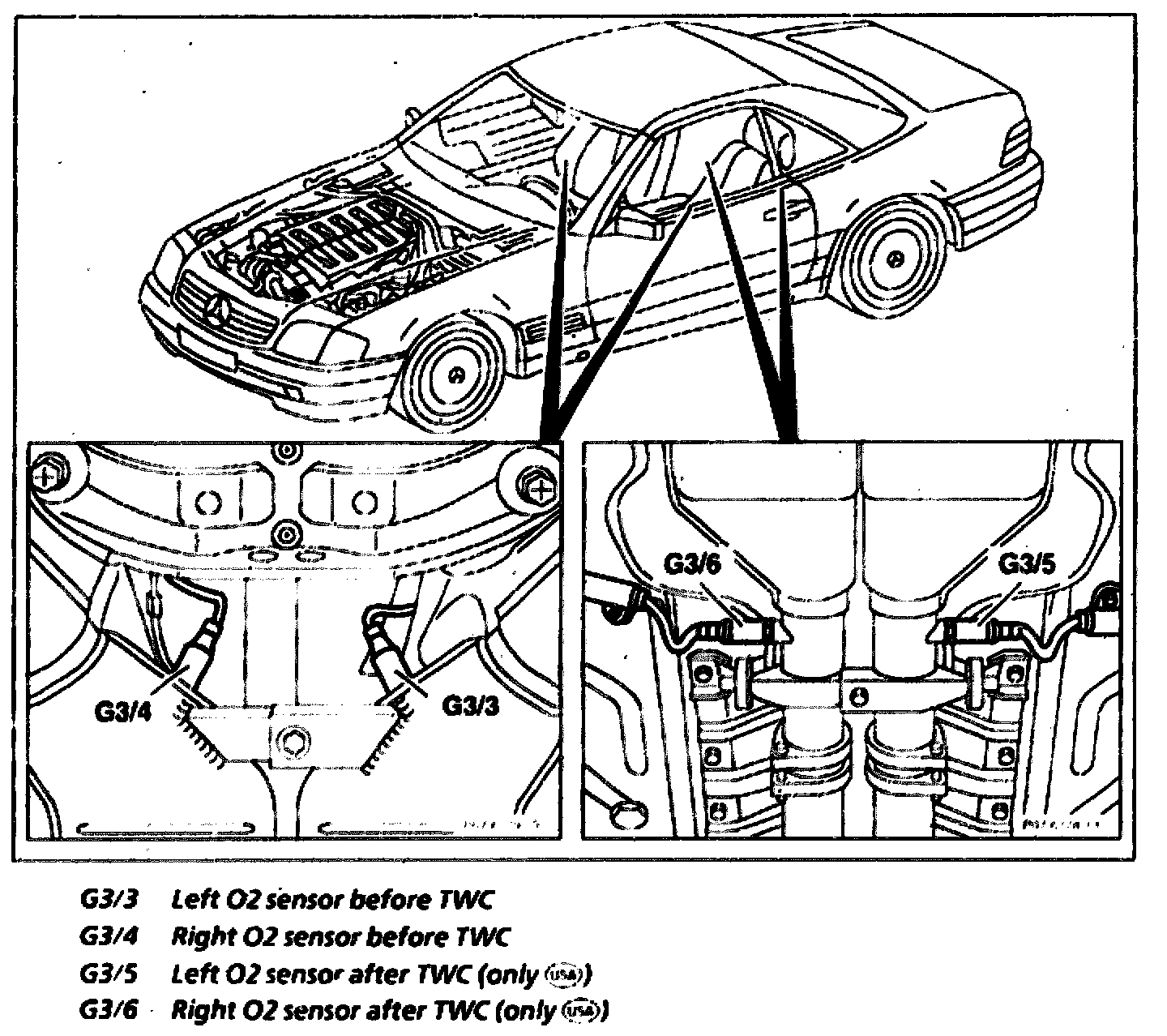

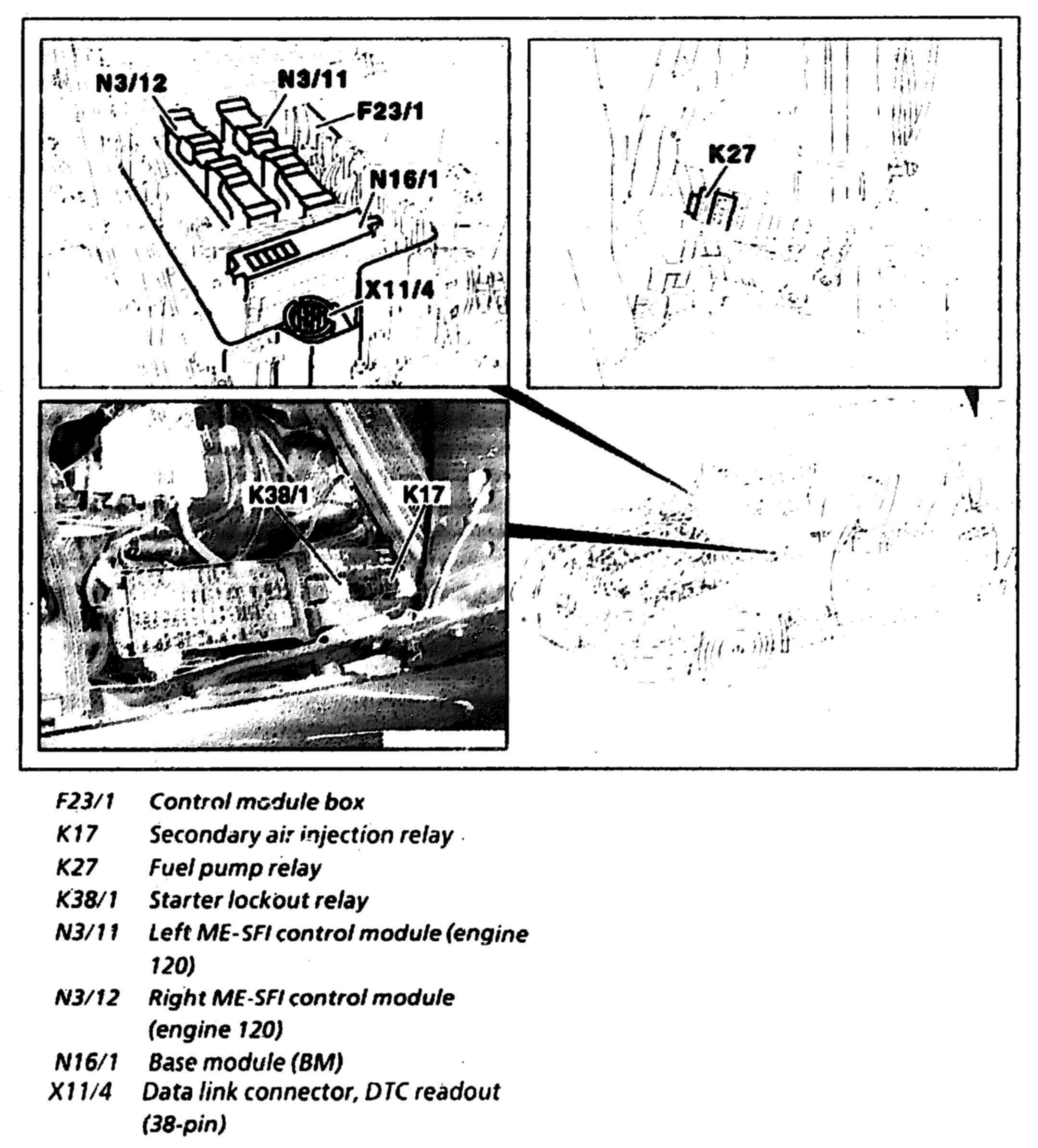

Chassis/Body Mounted Components



Model 129


























Engine 119, 120






Engine 112, 113
