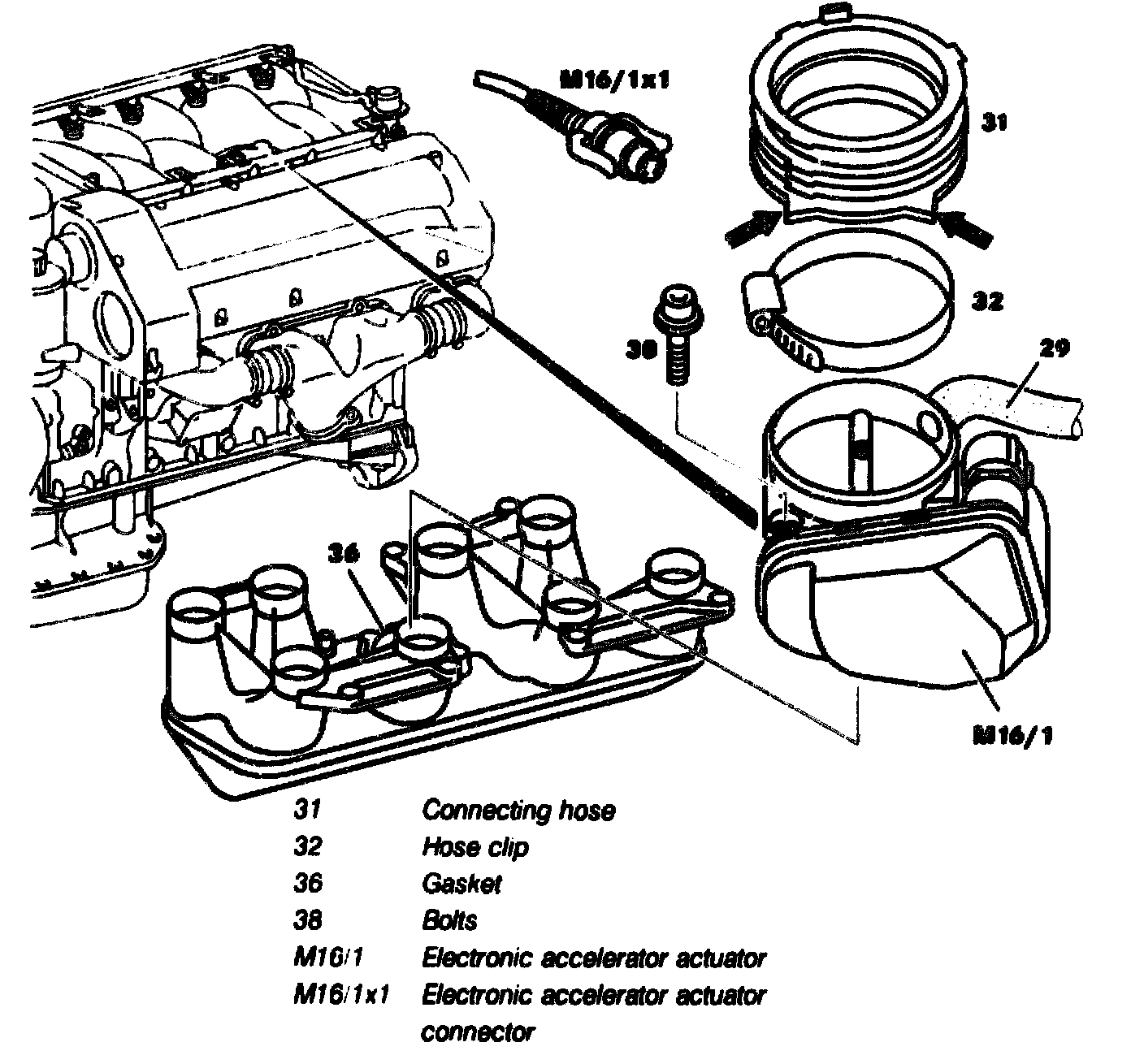

Electronic Accelerator Actuator With Flap Connection

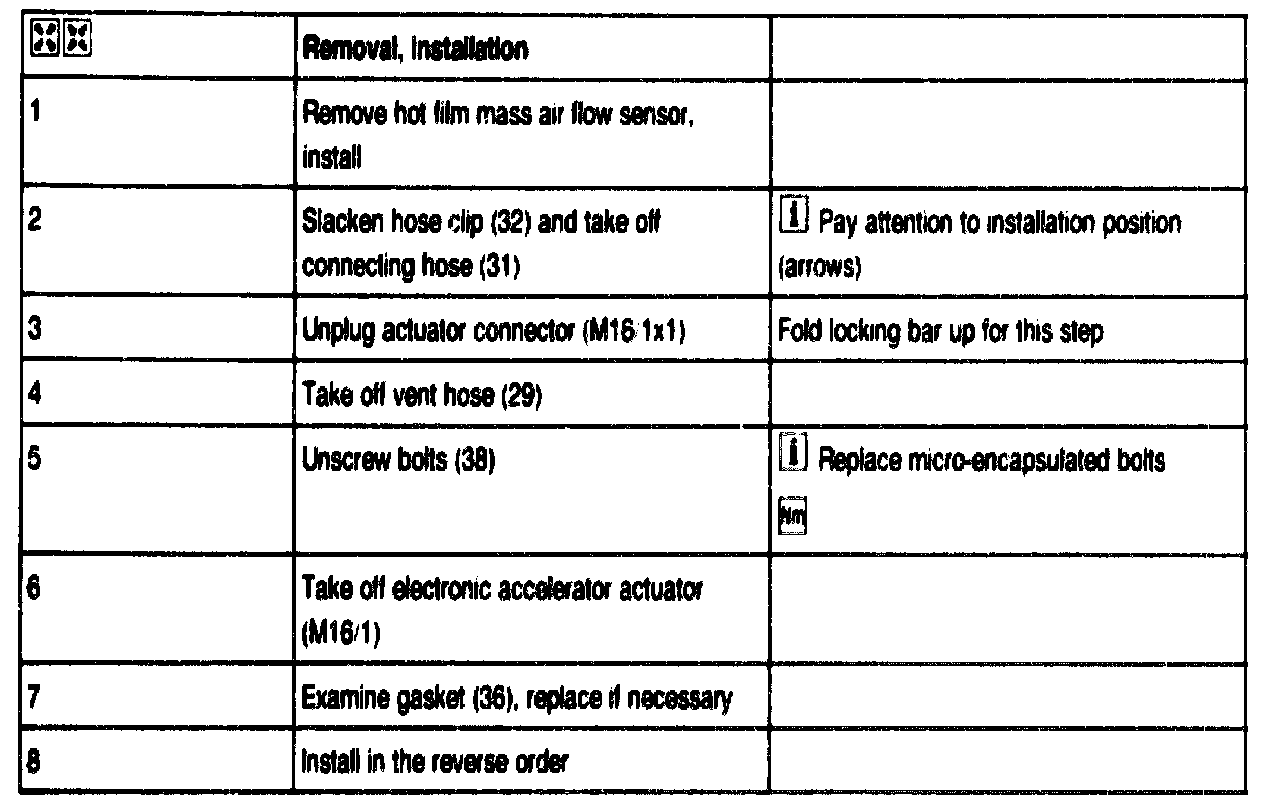

Removal, installation

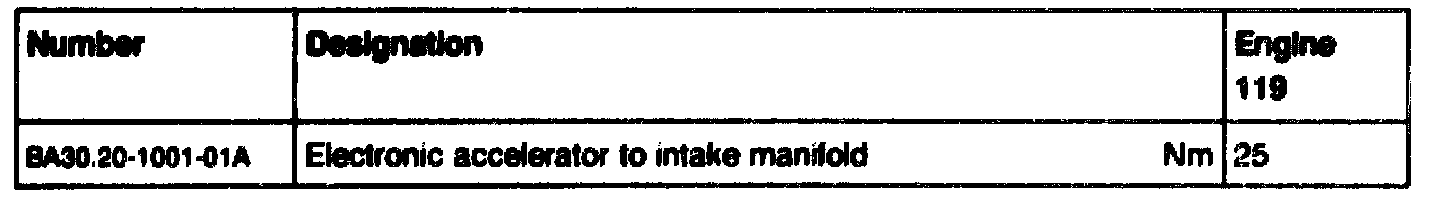

References (BA), Electronic accelerator actuator






References, Special tools

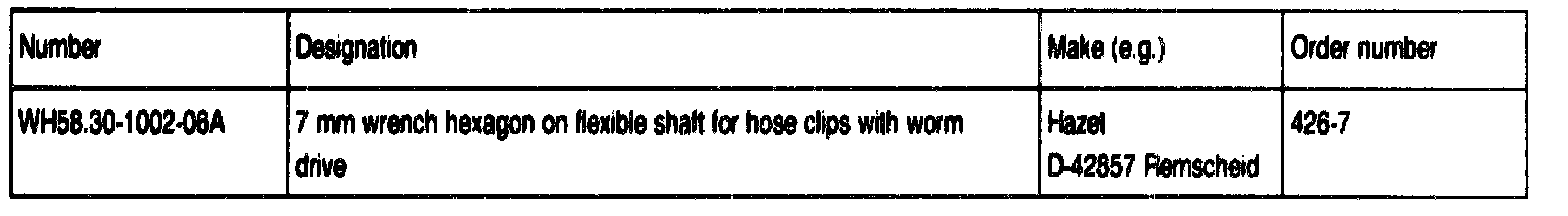

References (WH), Commercially available tools
