Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1996
>>
S 600 Sedan (140.057) V12-6.0L (120.982)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

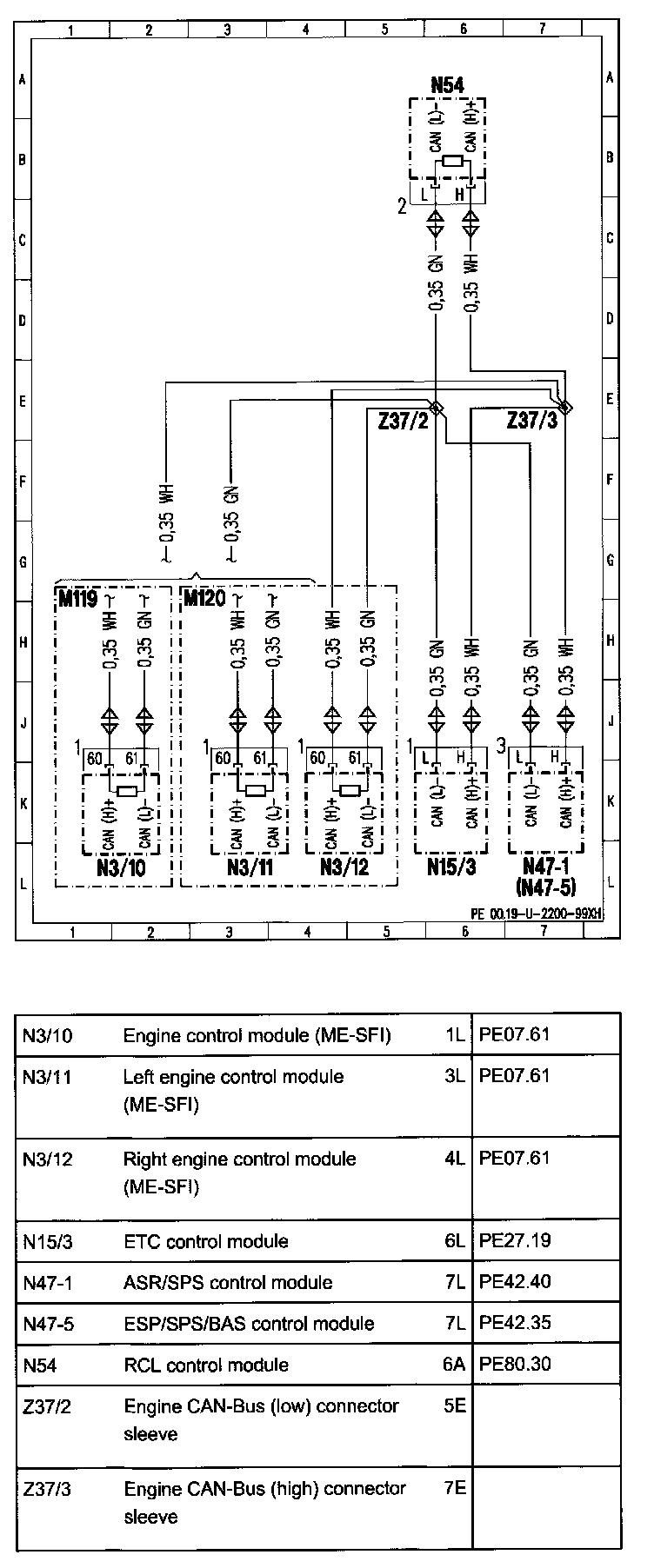

PE00.19-U-2200XH - Engines 119/120 ME:
