Connector Views


Engines 119/120 ME

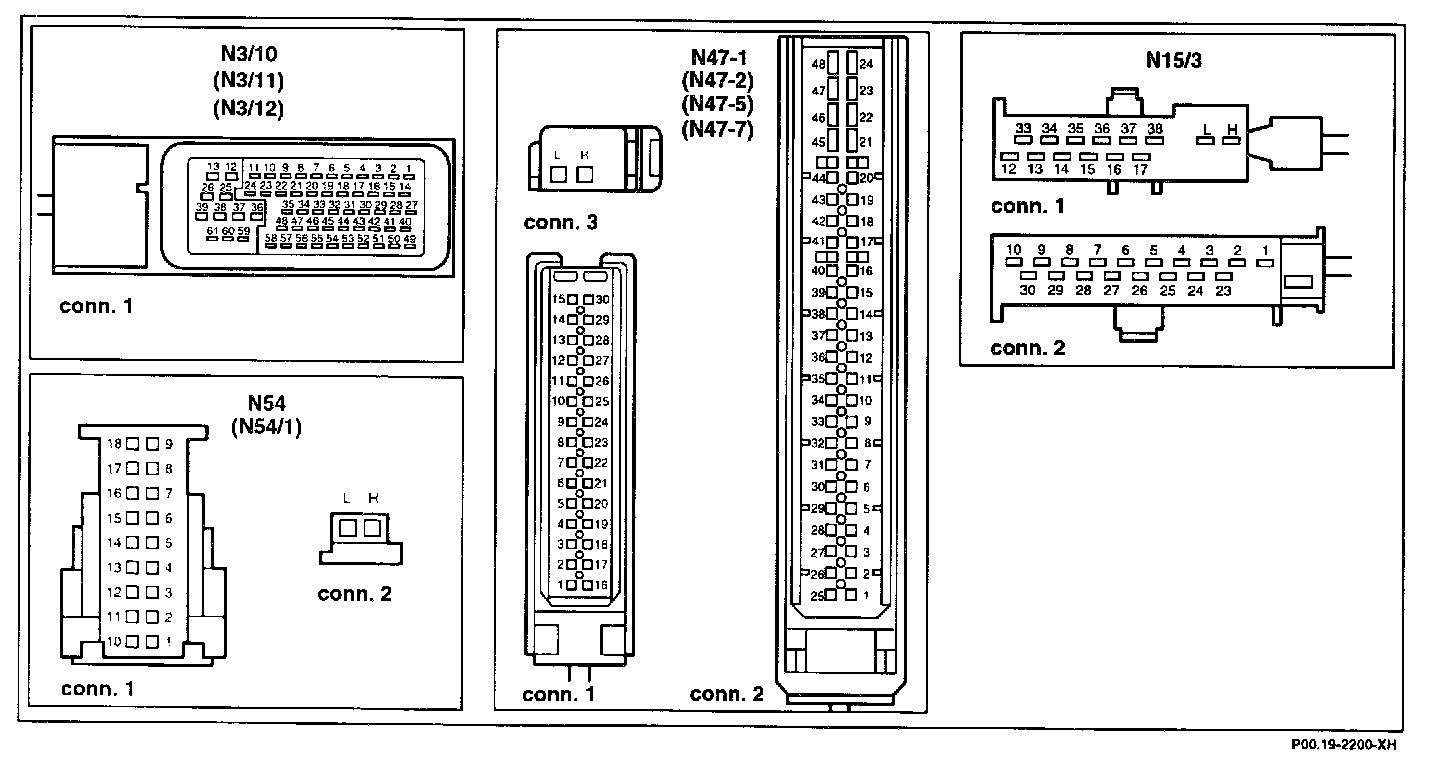

Connector Assignment:

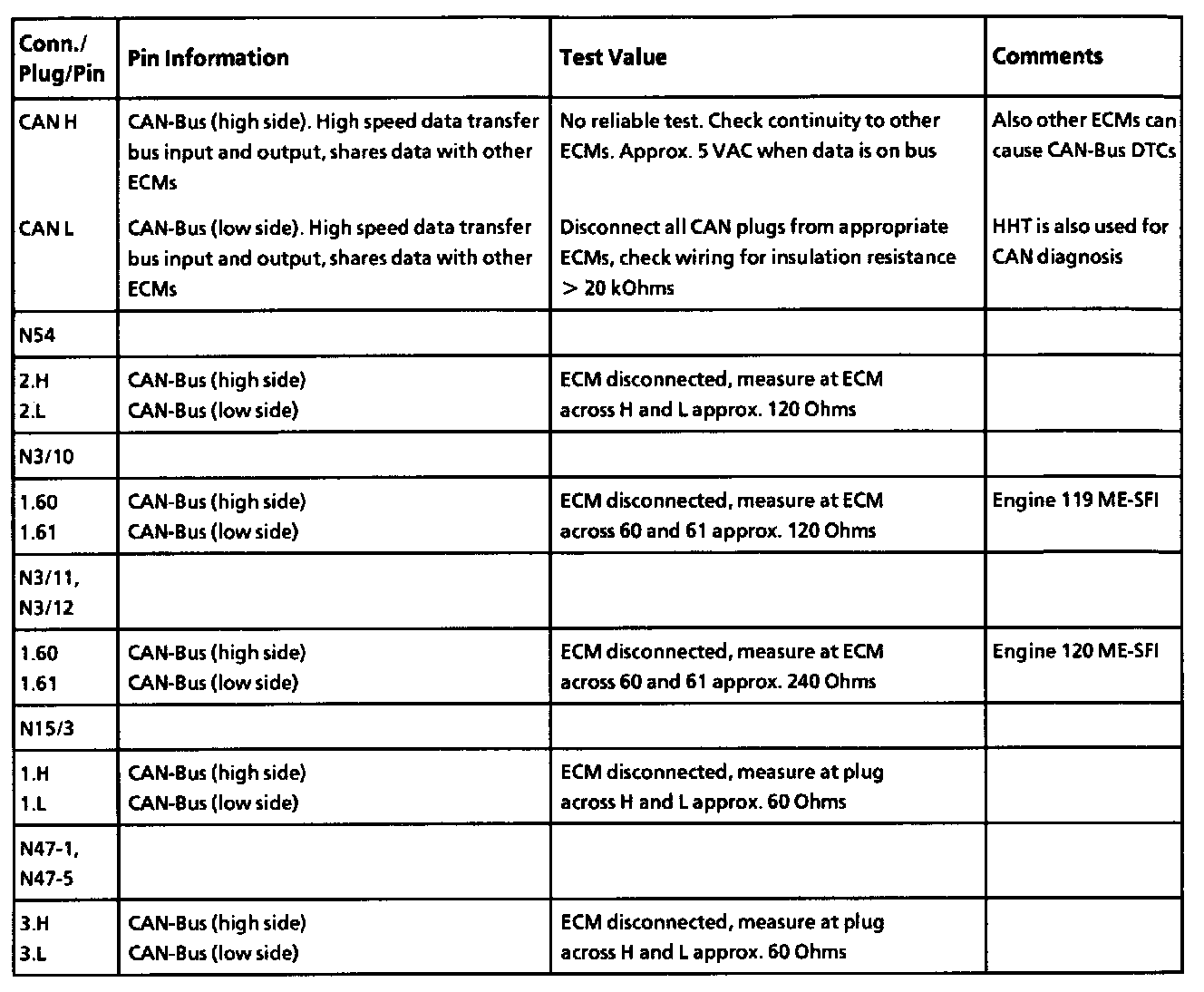

Pin Information:






All values measured to ground unless otherwise noted
