Connector Views
Engine 104 HFM
Connector Assignment:

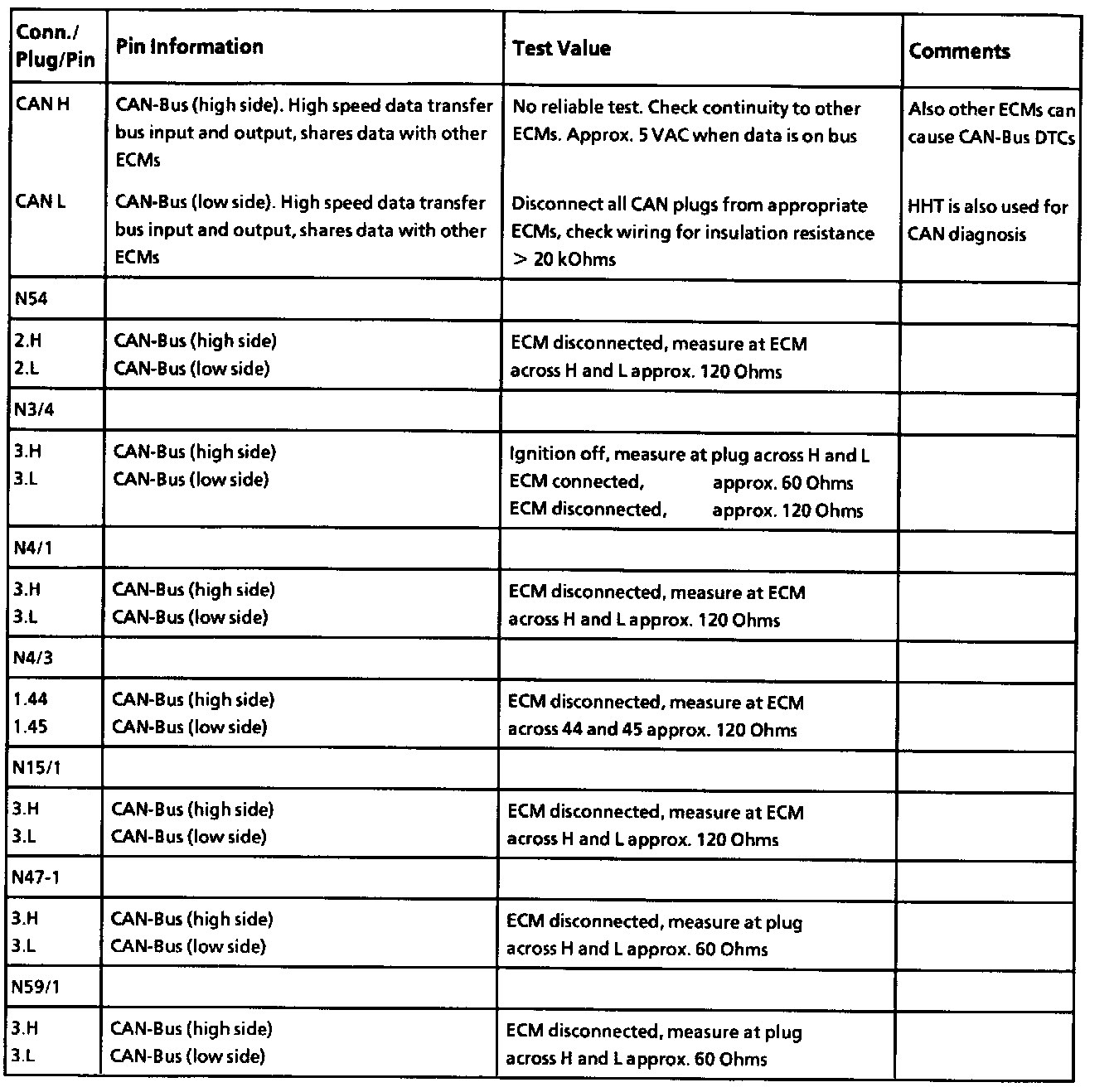

Pin Information:
All values measured to ground unless otherwise noted
