Connector Views


RPM Signal DI/KSS

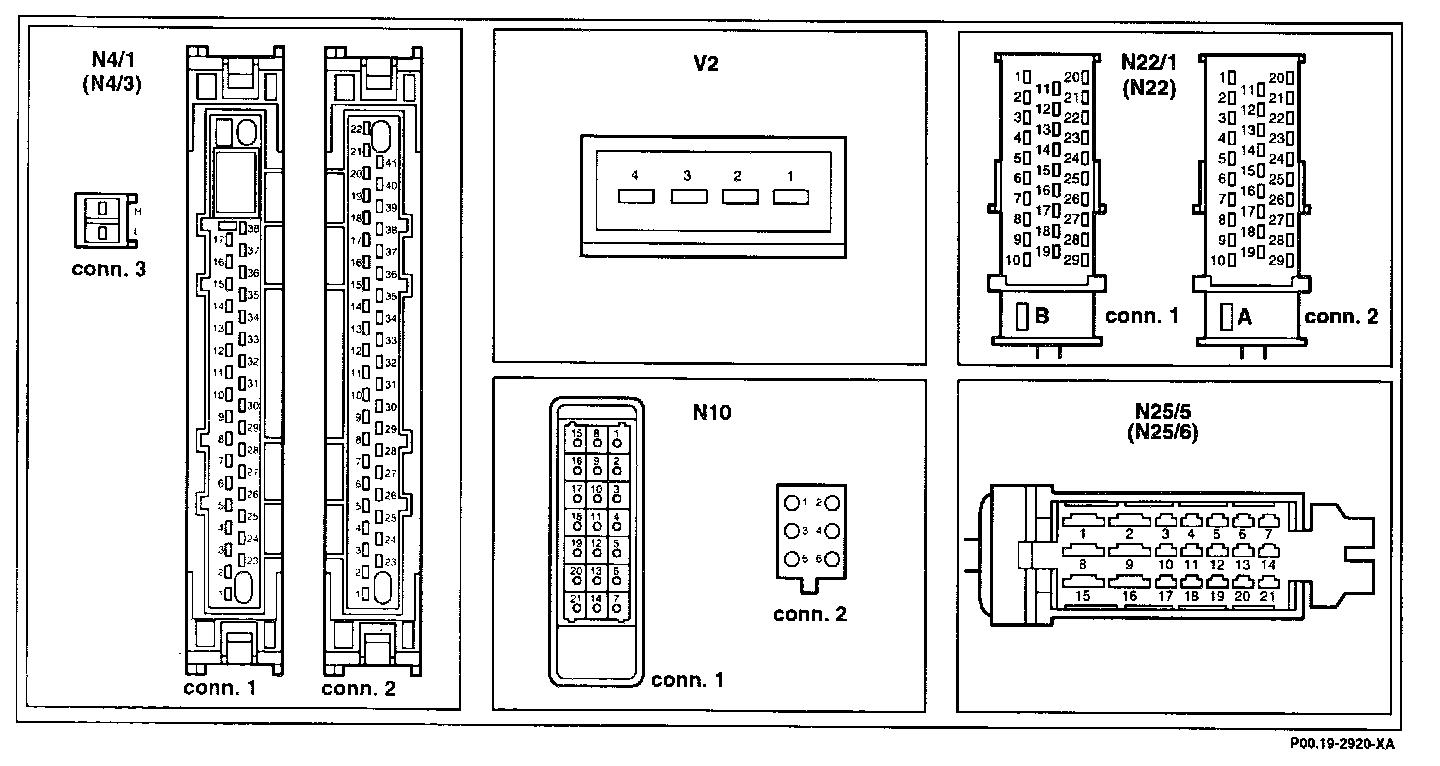

Connector Assignment:

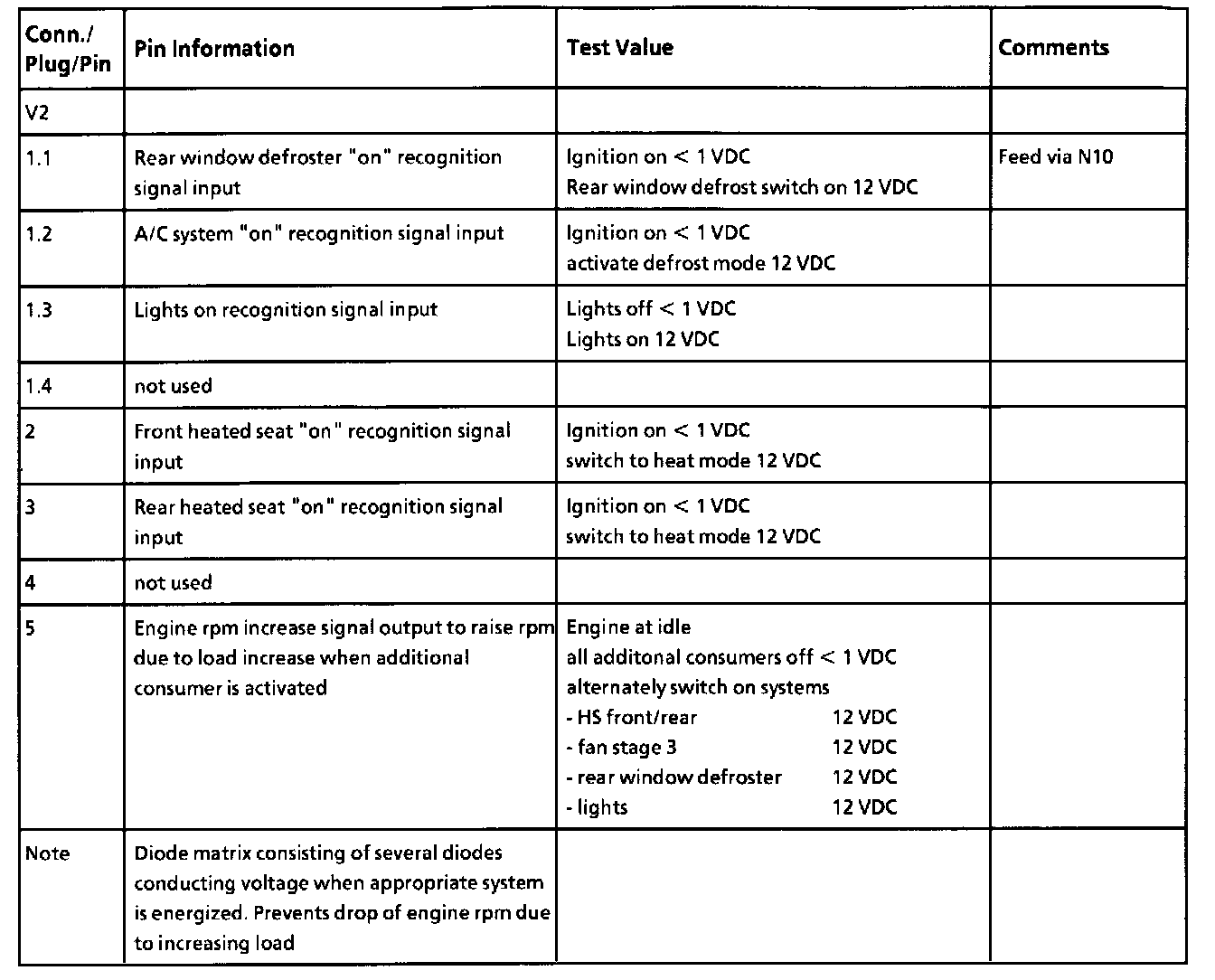

Pin Information:






All values measured to ground unless otherwise noted
