Mercedes Benz
>>
1996
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Power Supply
>>
Diagrams
>>

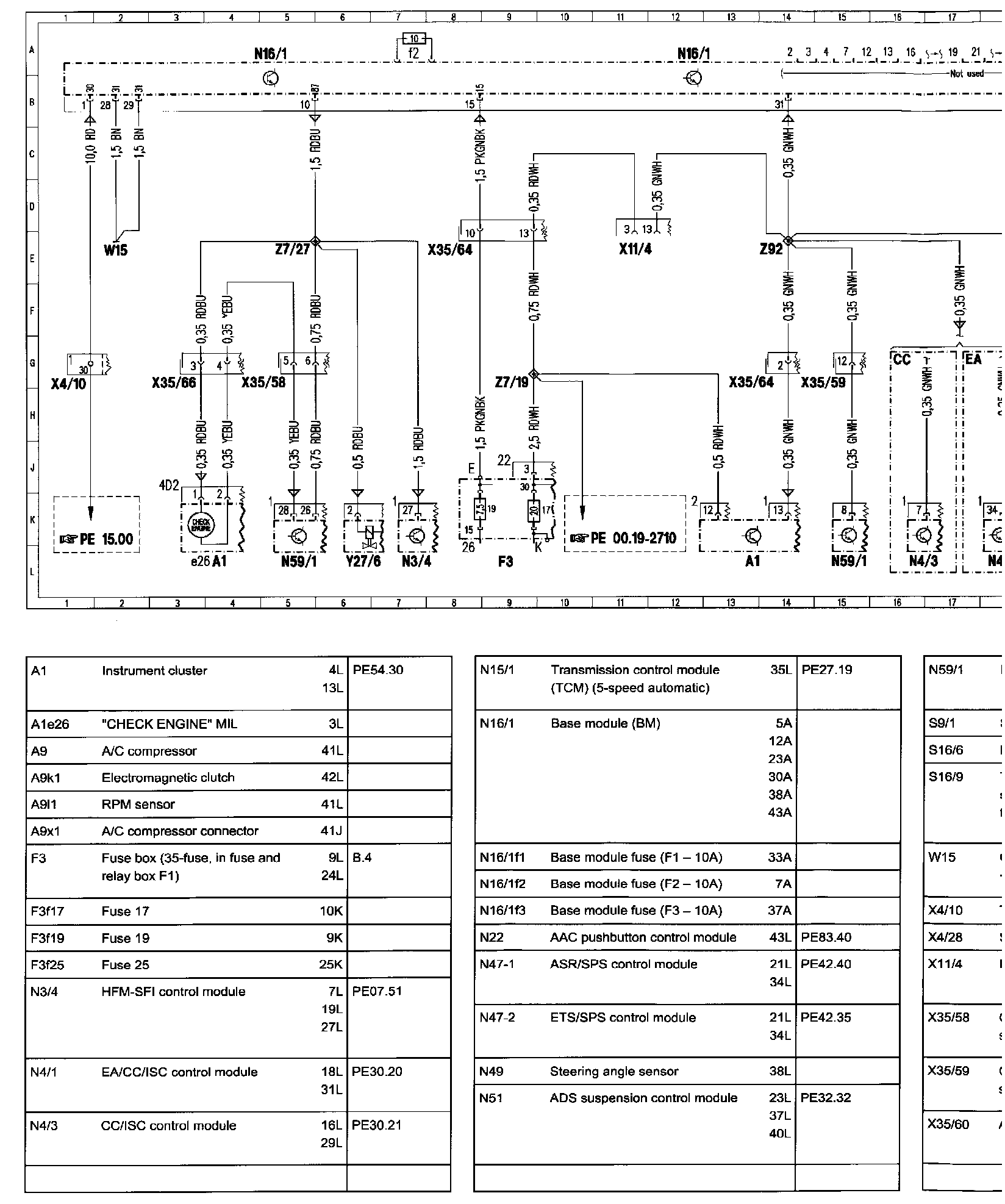

Electrical Diagrams
Electrical Diagrams
������PE54.21-U-2400-XF:
