S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Core
>>
Locations
>>
Rear
Rear

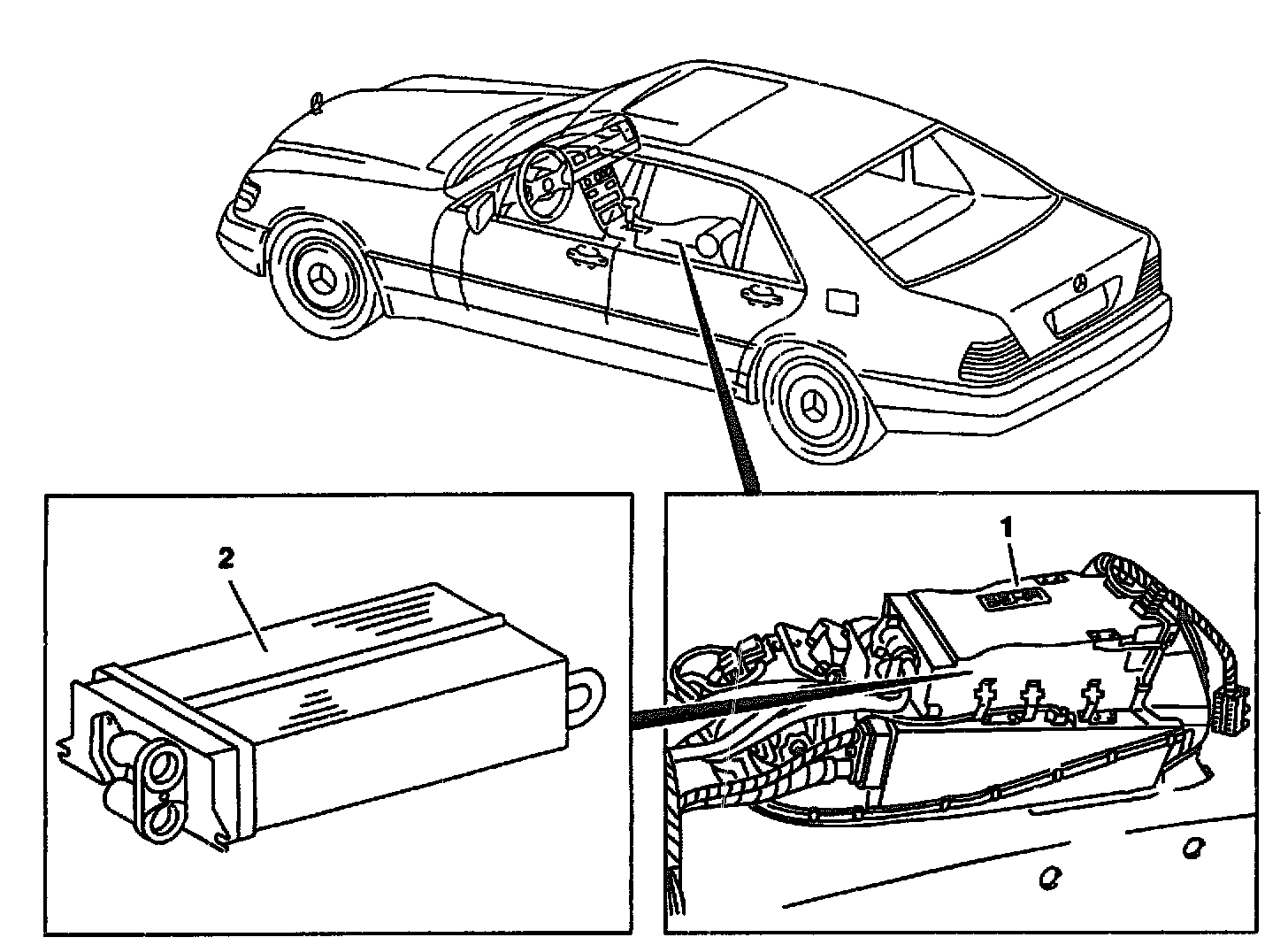

The heater core (2) is located at the top in the rear A/C housing (1) below the arm rest.
