Mercedes Benz
>>
1996
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Traction Control Module
>>
With ESP
With ESP

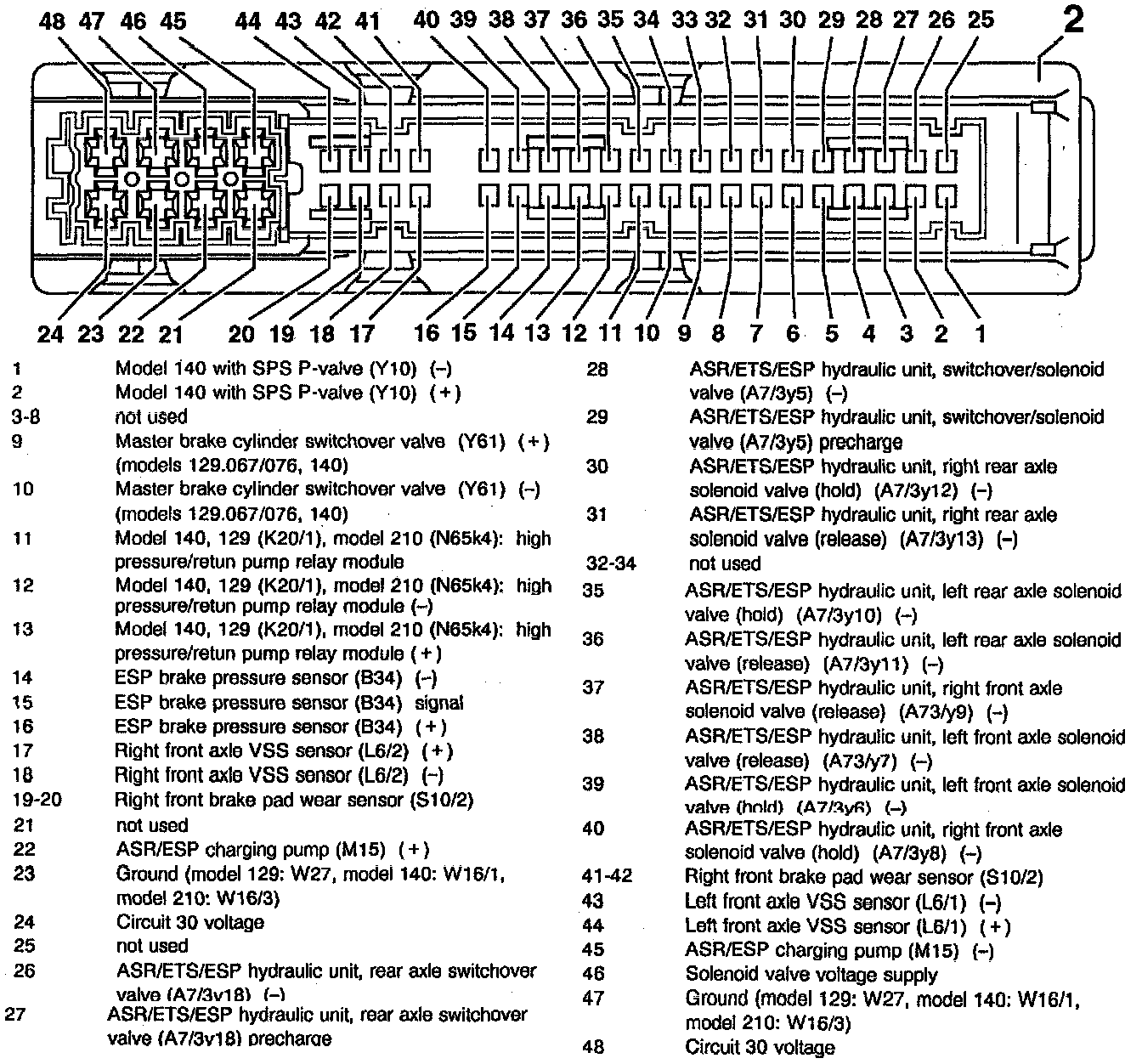

Connector 1:

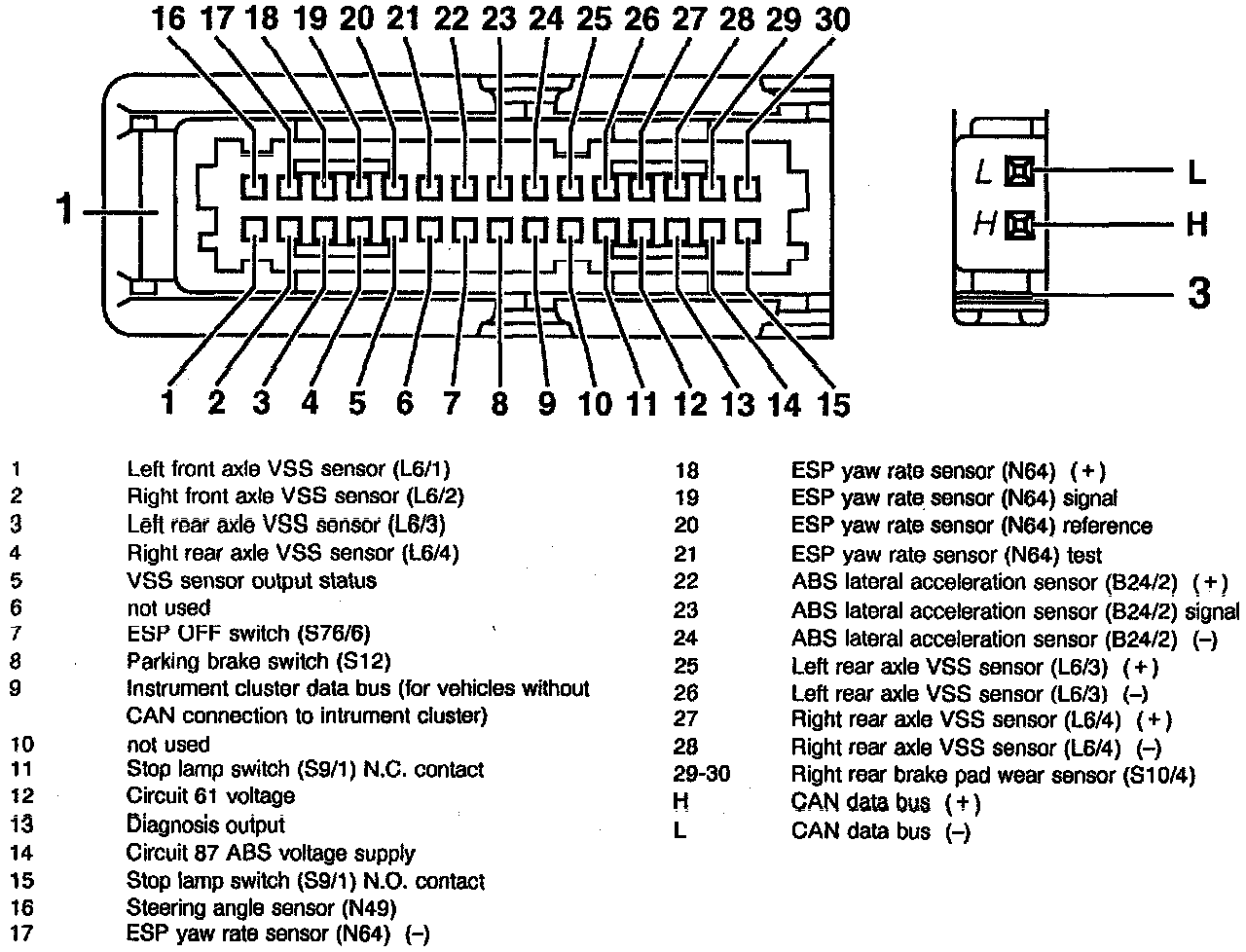

Connector 2:
