Connector Views
RCL With DAS 2

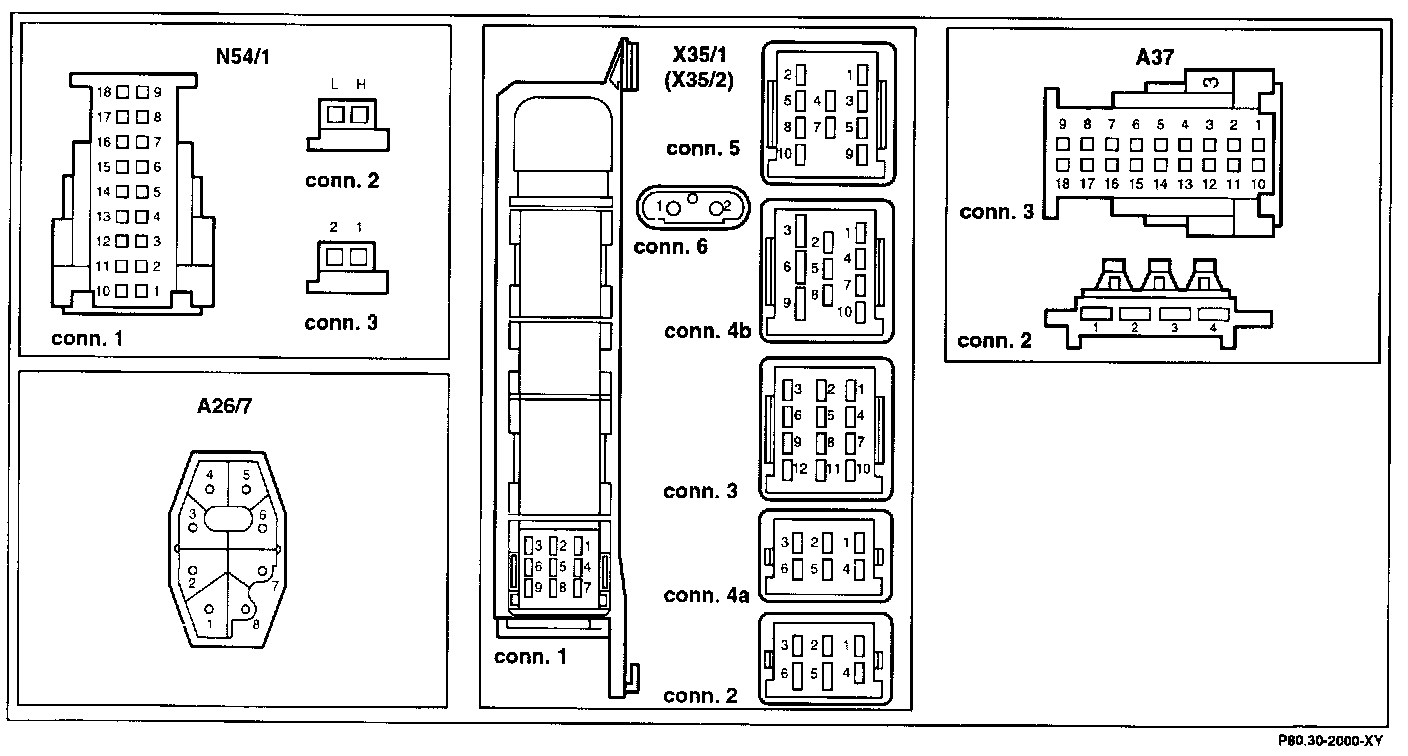

Connector Assignment:

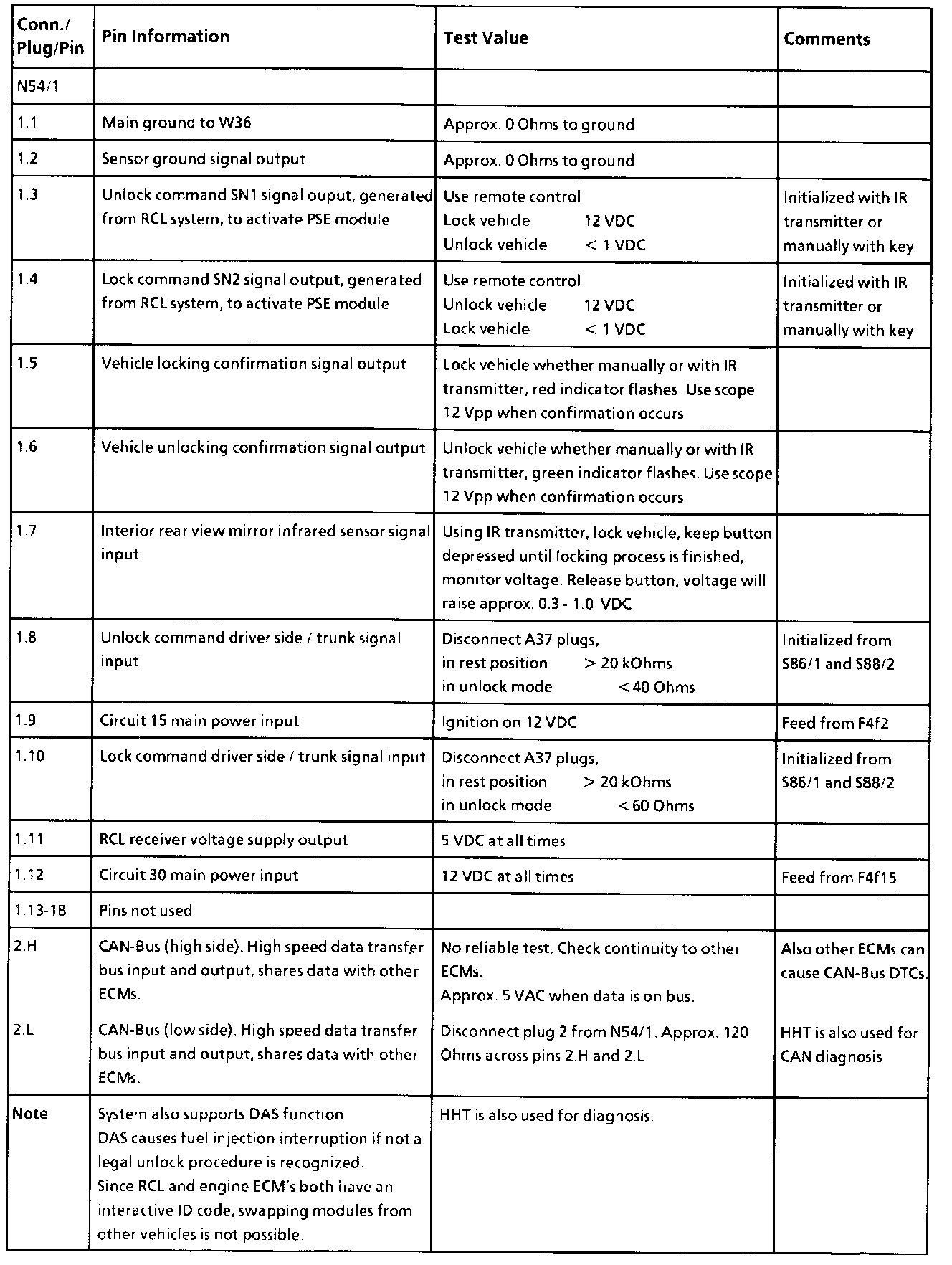

Pin Information:
All values measured to ground unless otherwise noted
