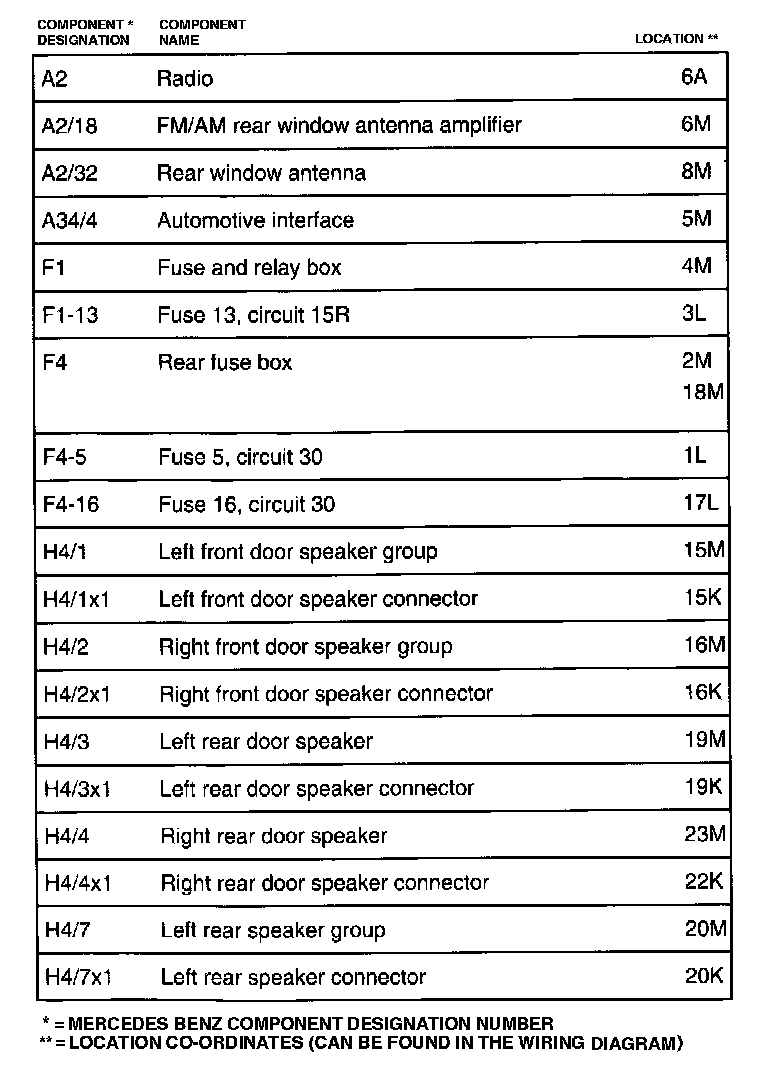

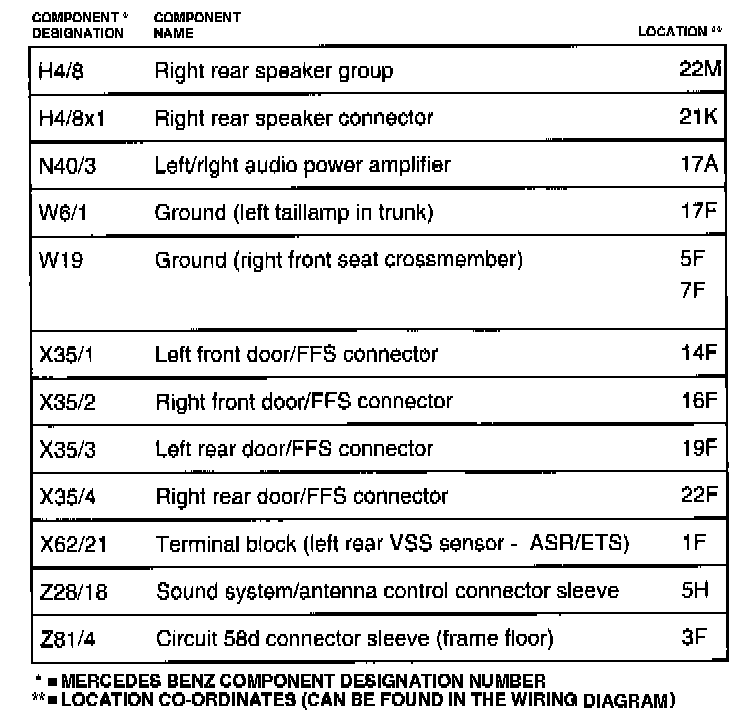

Radio (RD) Control Module PE82.60-U-2000B
Radio (RD) Control Module PE82.60-U-2000B
Radio (RD) Control Module PE82.60-U-2000B
- with CODE (810) Sound system

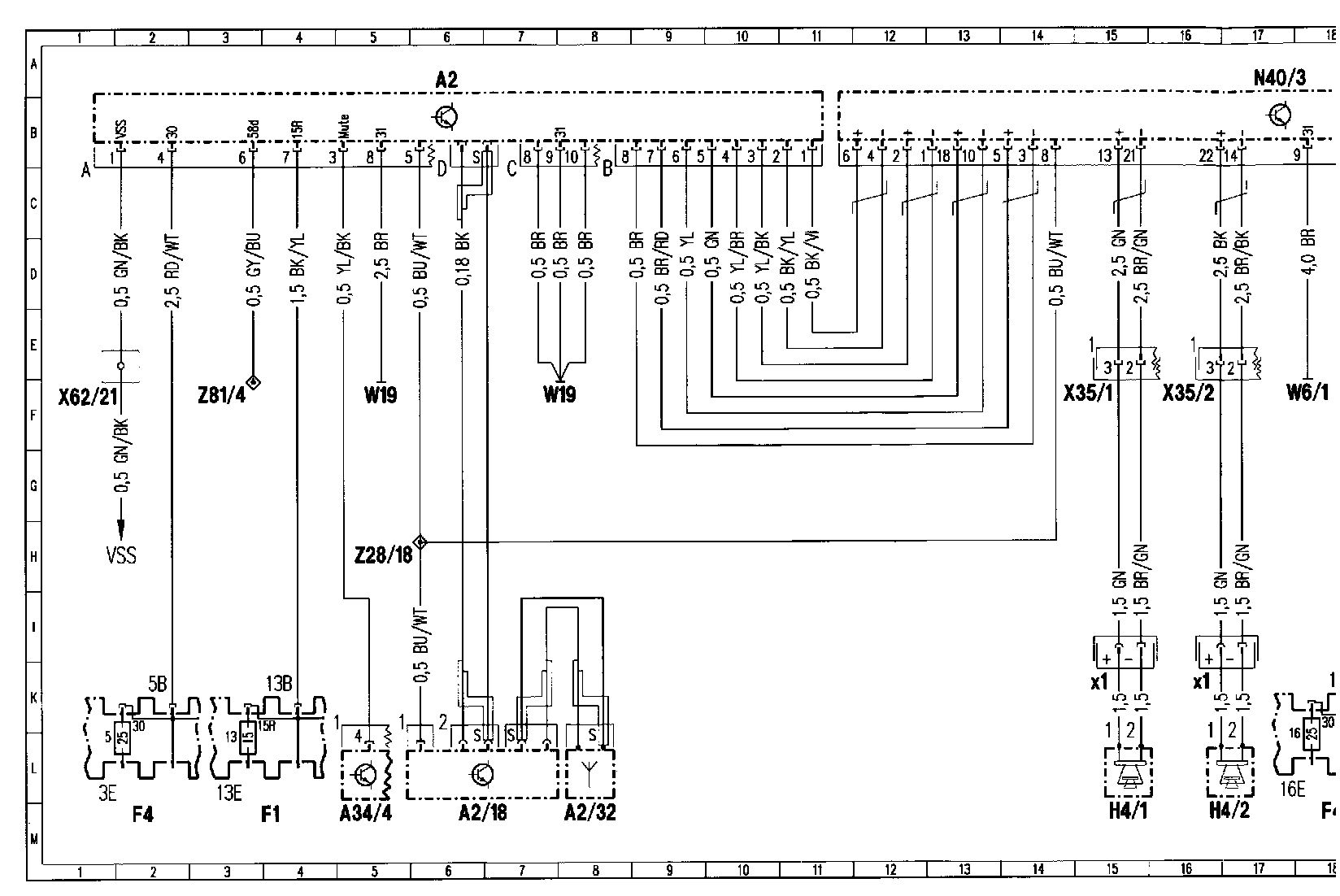

�$�<Wiring Diagram:
A2 - H4/7x1:
H4/8 - Z81/4:
