Electrical Diagrams

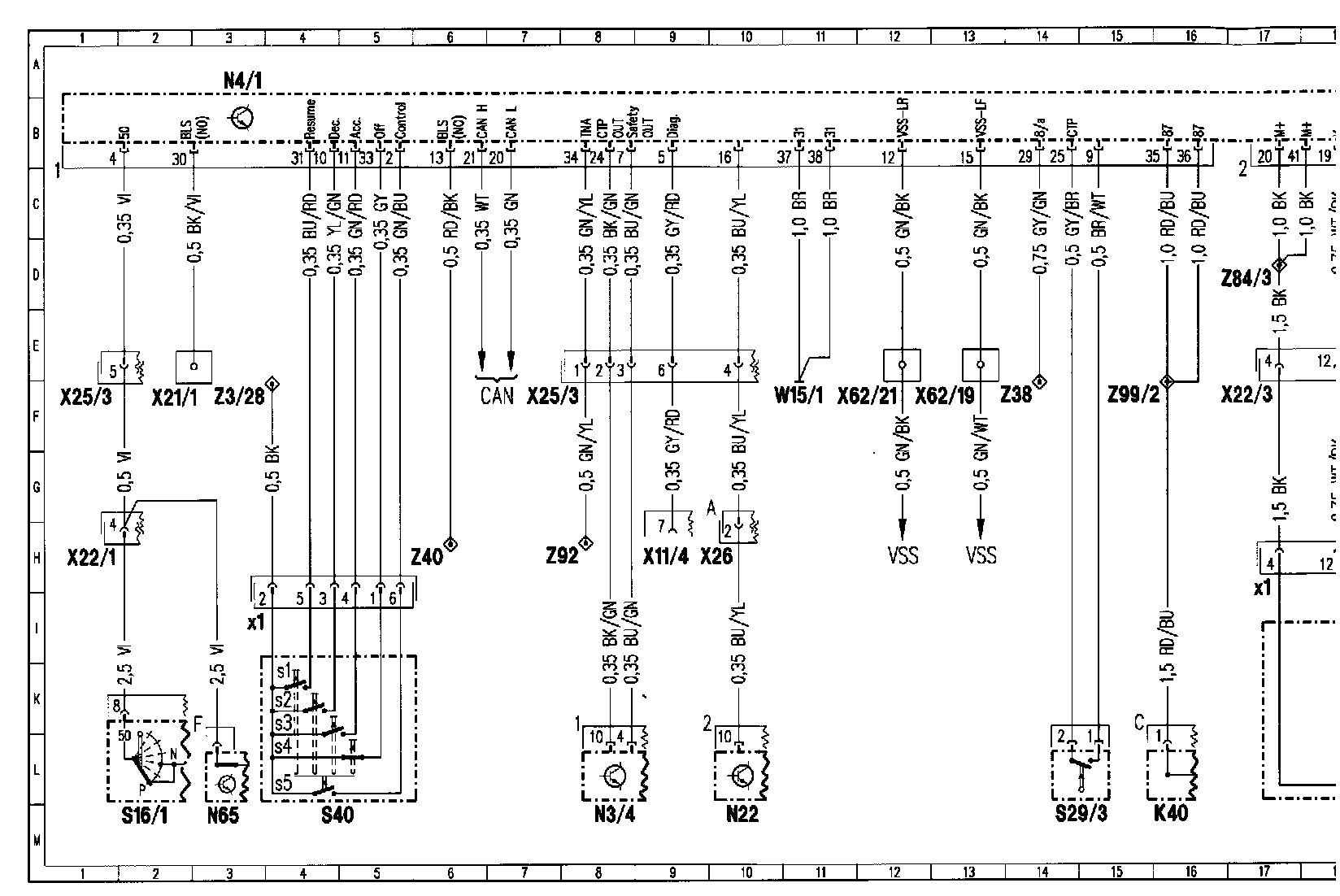

Electronic Accelerator (EA)/Cruise Control (CC)/Idle Speed Control (ISC) (Vehicles With ASR)
>�?OWiring Diagram:

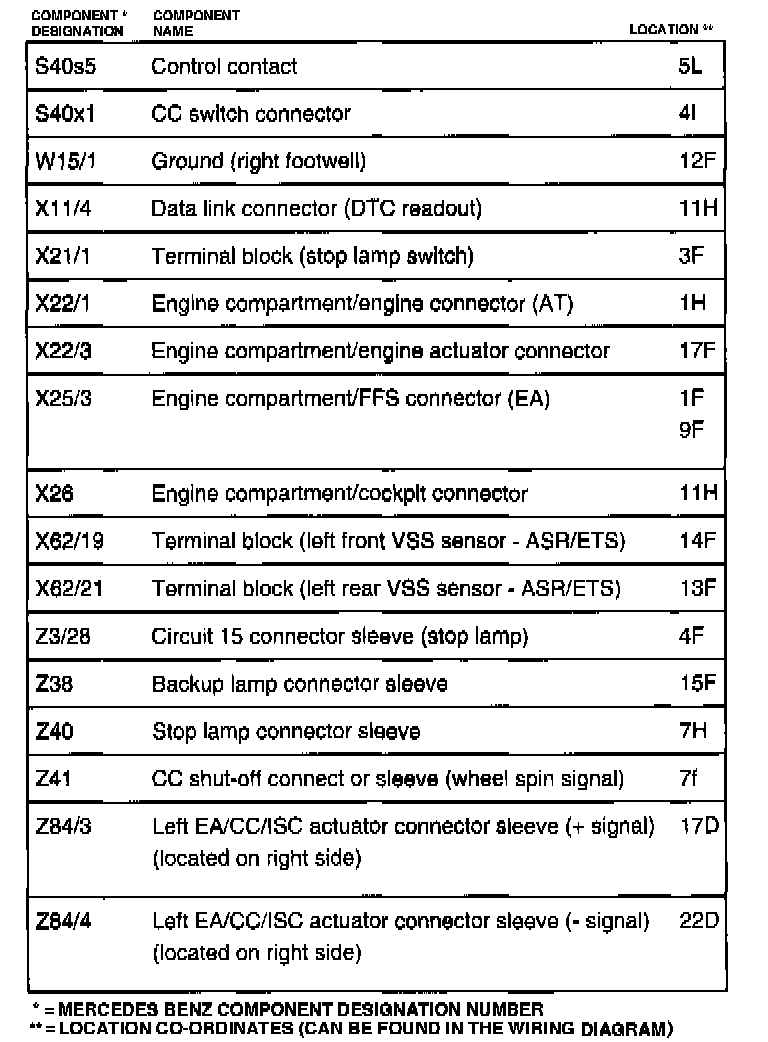

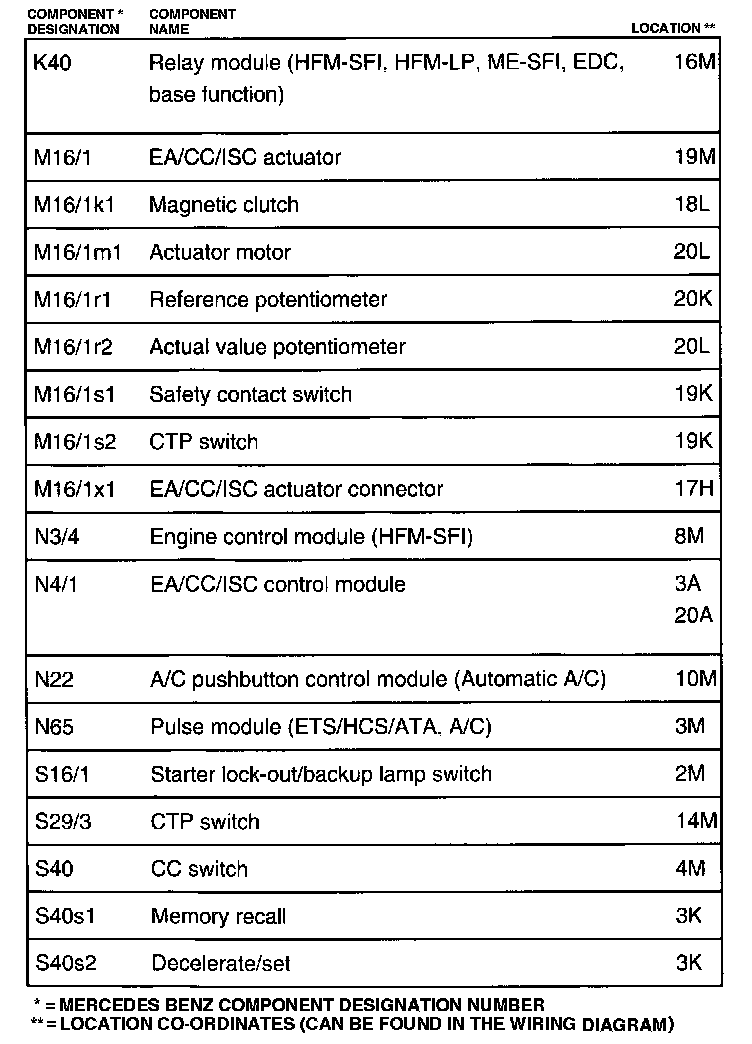

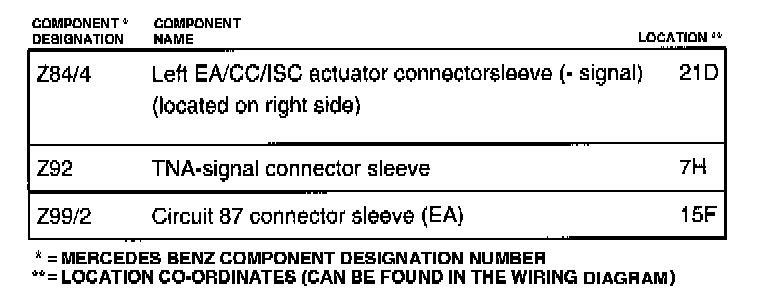

Component Grid Location
K40 - S40s2:
S40s3 - Z84/3:
Z84/4 - Z99/2:

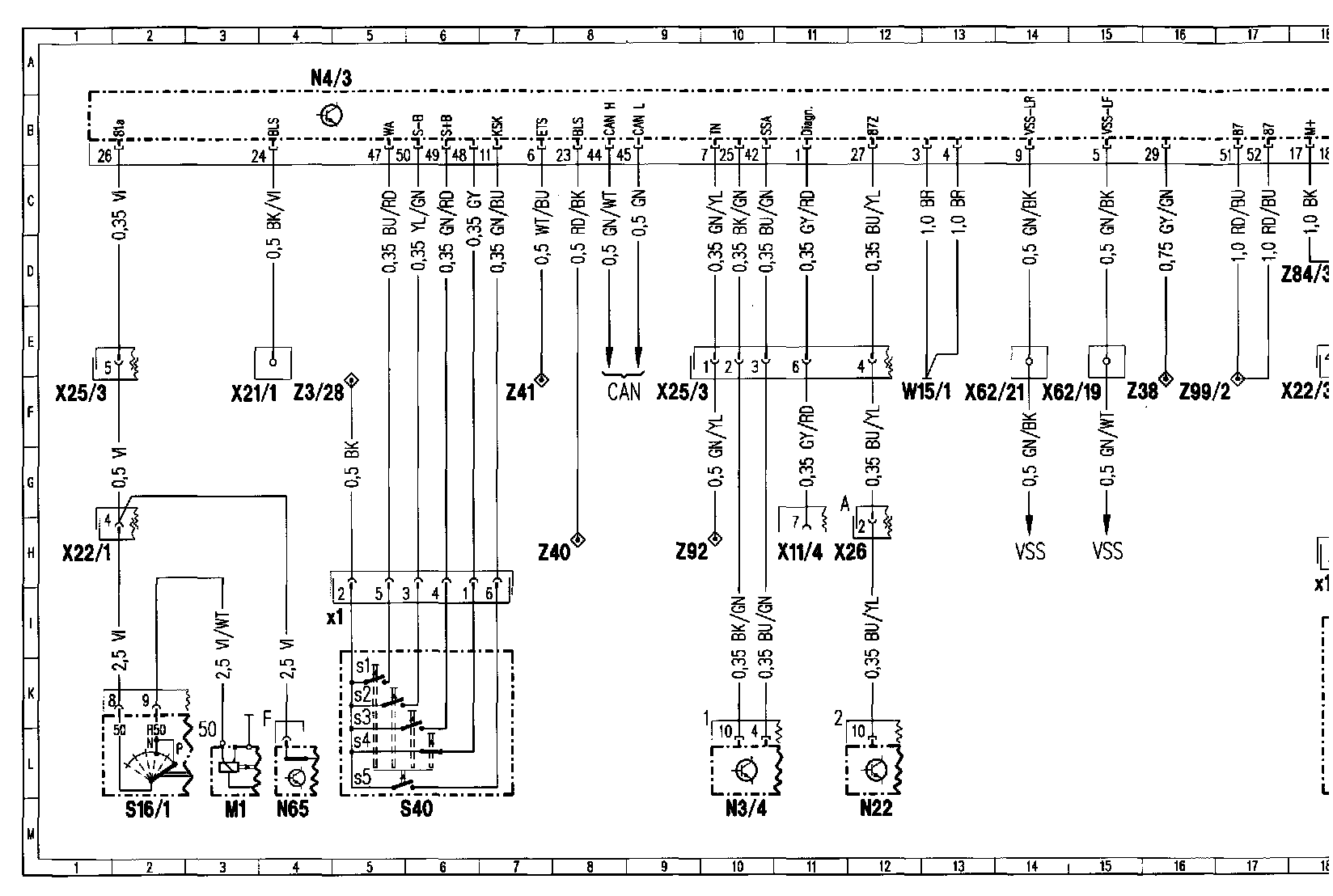

Cruise Control (CC)/Idle Speed Control (ISC) (Vehicles With ETS)
�$@OWiring Diagram:

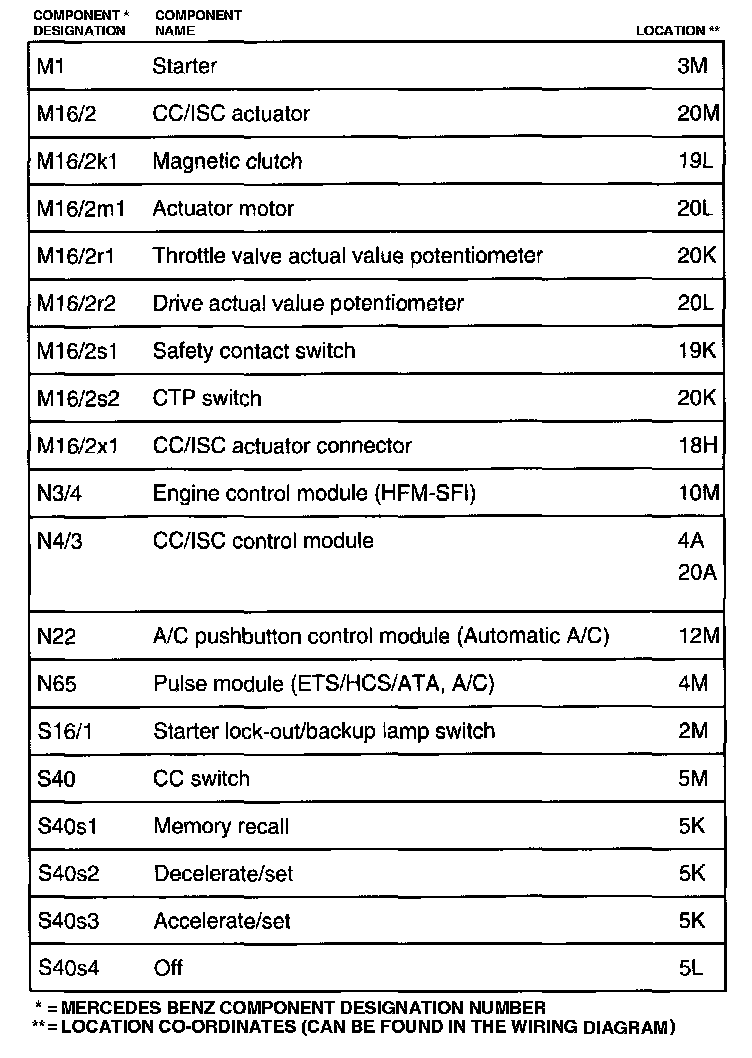

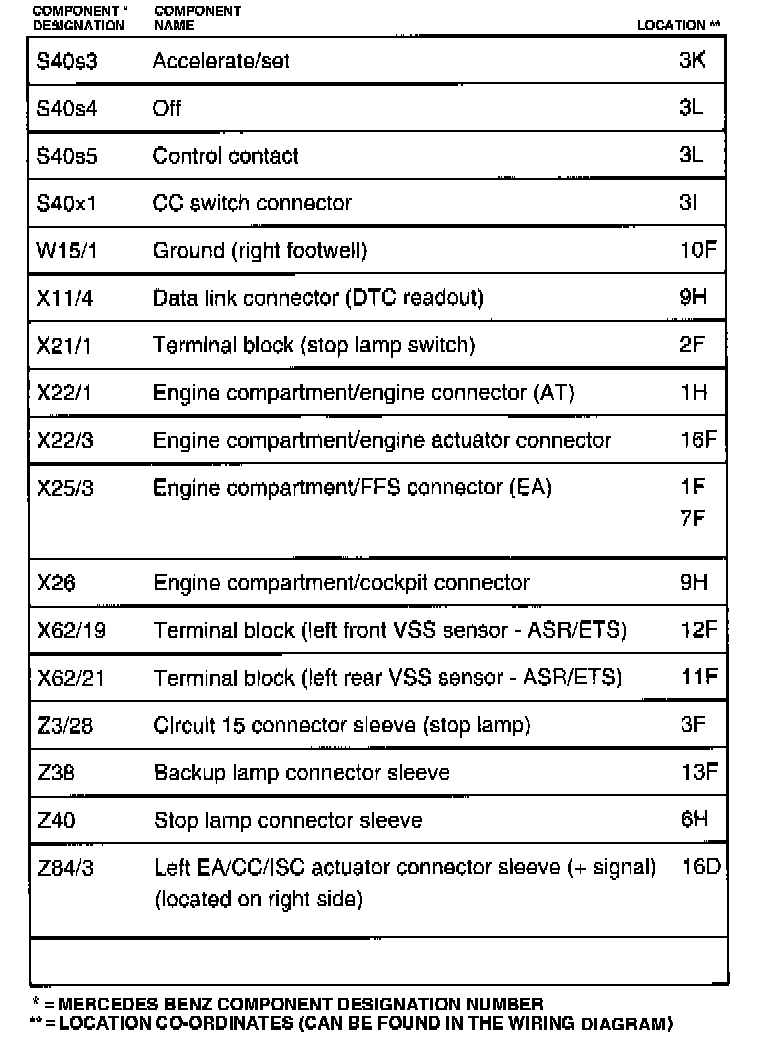

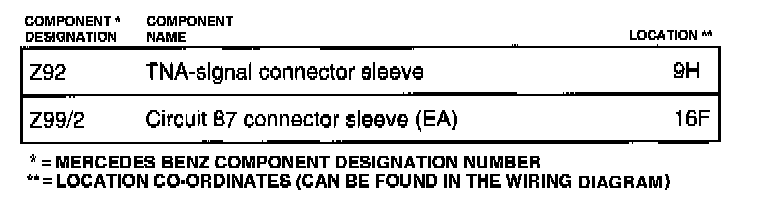

Component Grid Location
M1 - S40s4:
S40s5 - Z84/4:
Z92 - Z99/2:
