Constant Velocity Joint Boot: Service and Repair

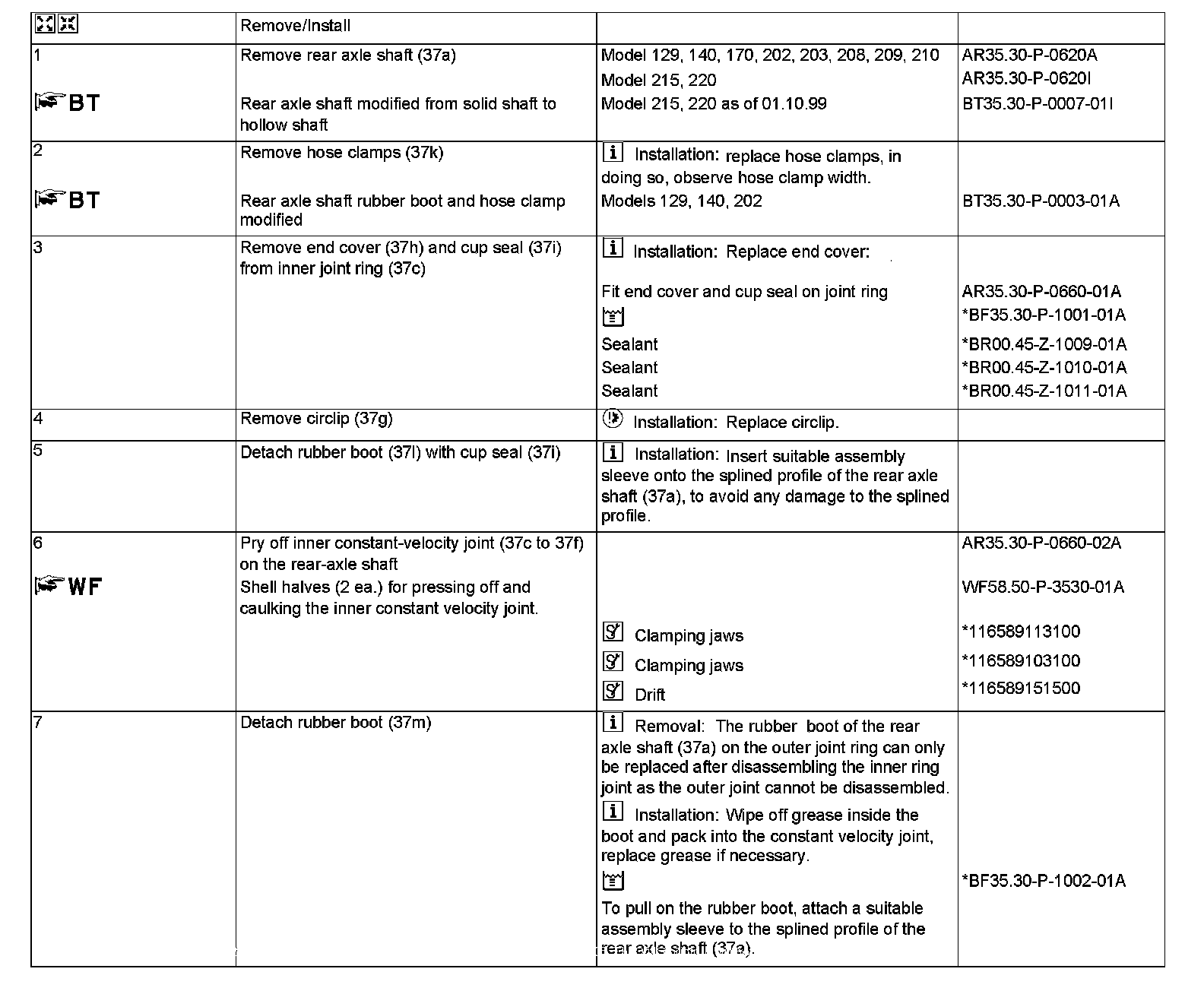

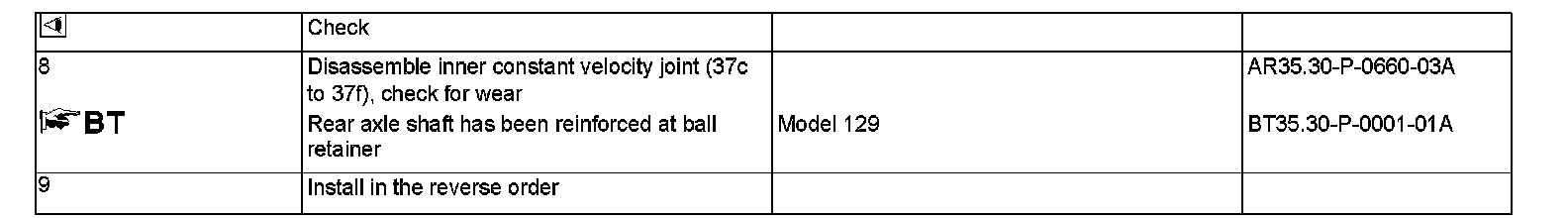

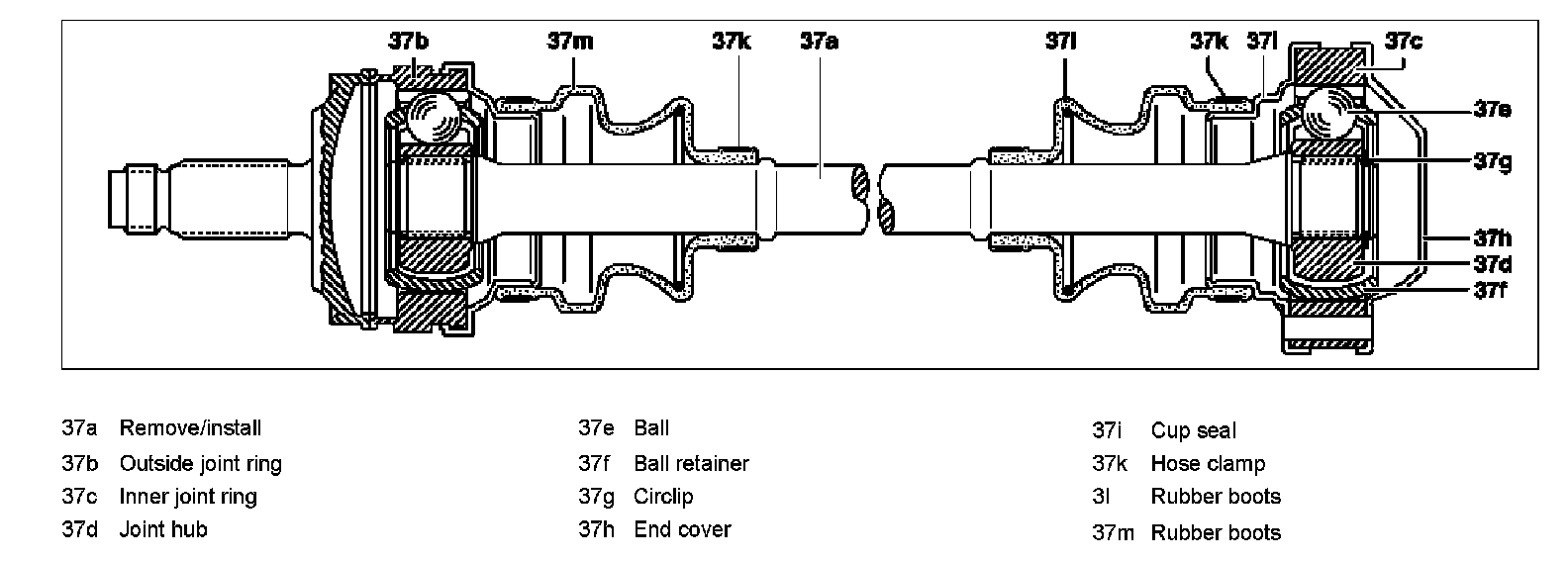

Remove/install inside CV joint or rubber boots on rear axle shaft
