Remove Couplings For Exterior Lamp Failure Monitoring Unit
Remove Couplings For Exterior Lamp Failure Monitoring Unit
1

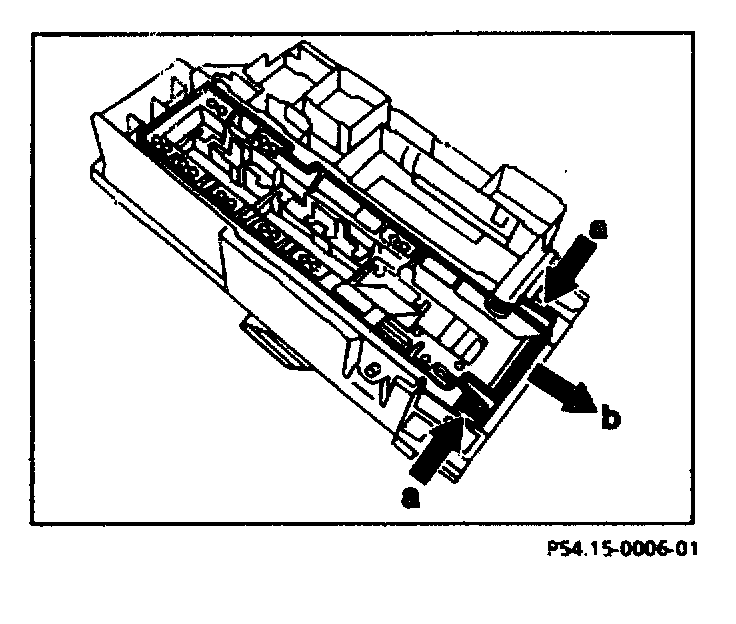

Press together slide locks on the knurled side (arrows "a") and push in direction of arrow (b).
2
Take out couplings.
