Component Locations - Section 21

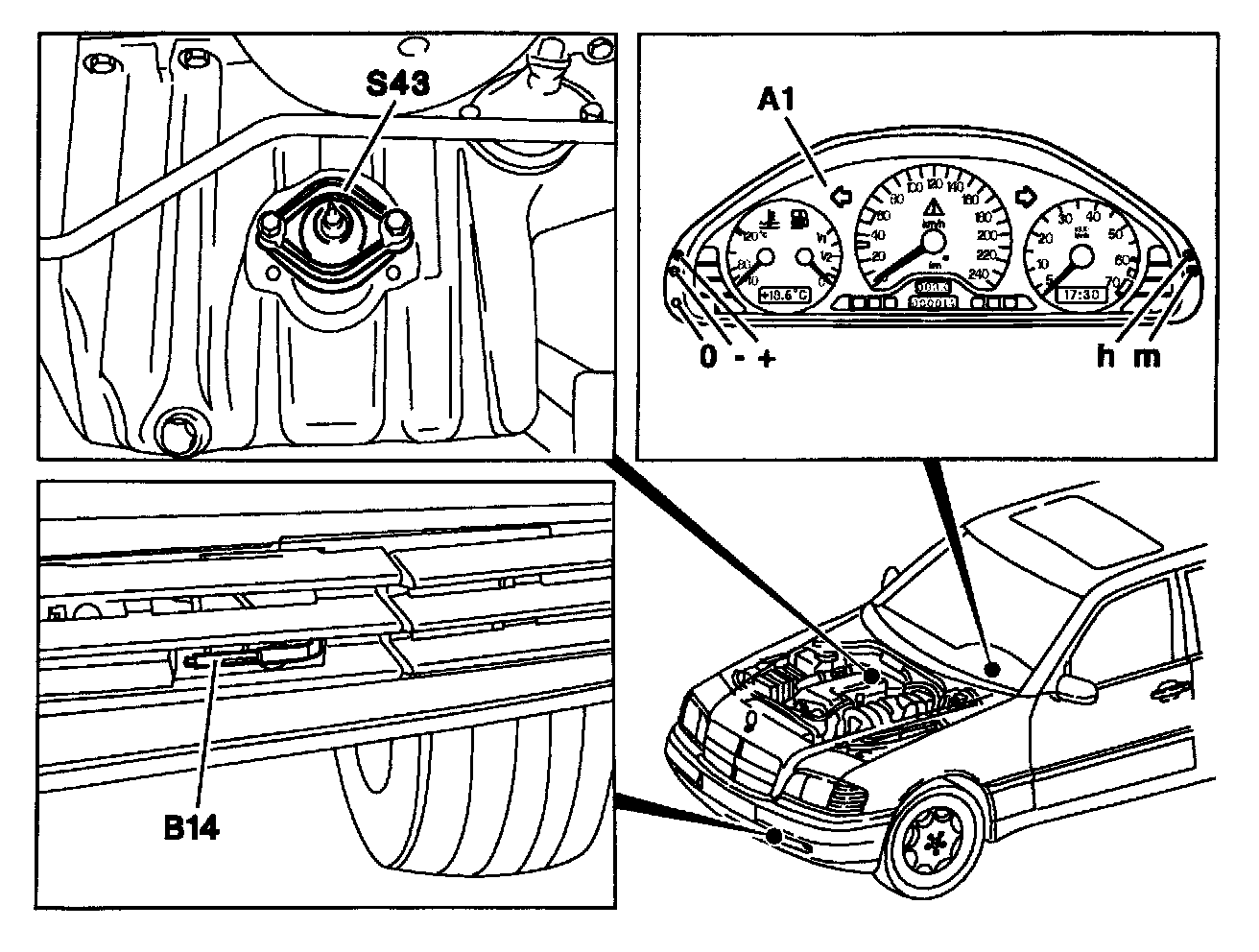

A1 Instrument cluster

B14 Outside temperature indicator temperature sensor

S43 Oil level switch

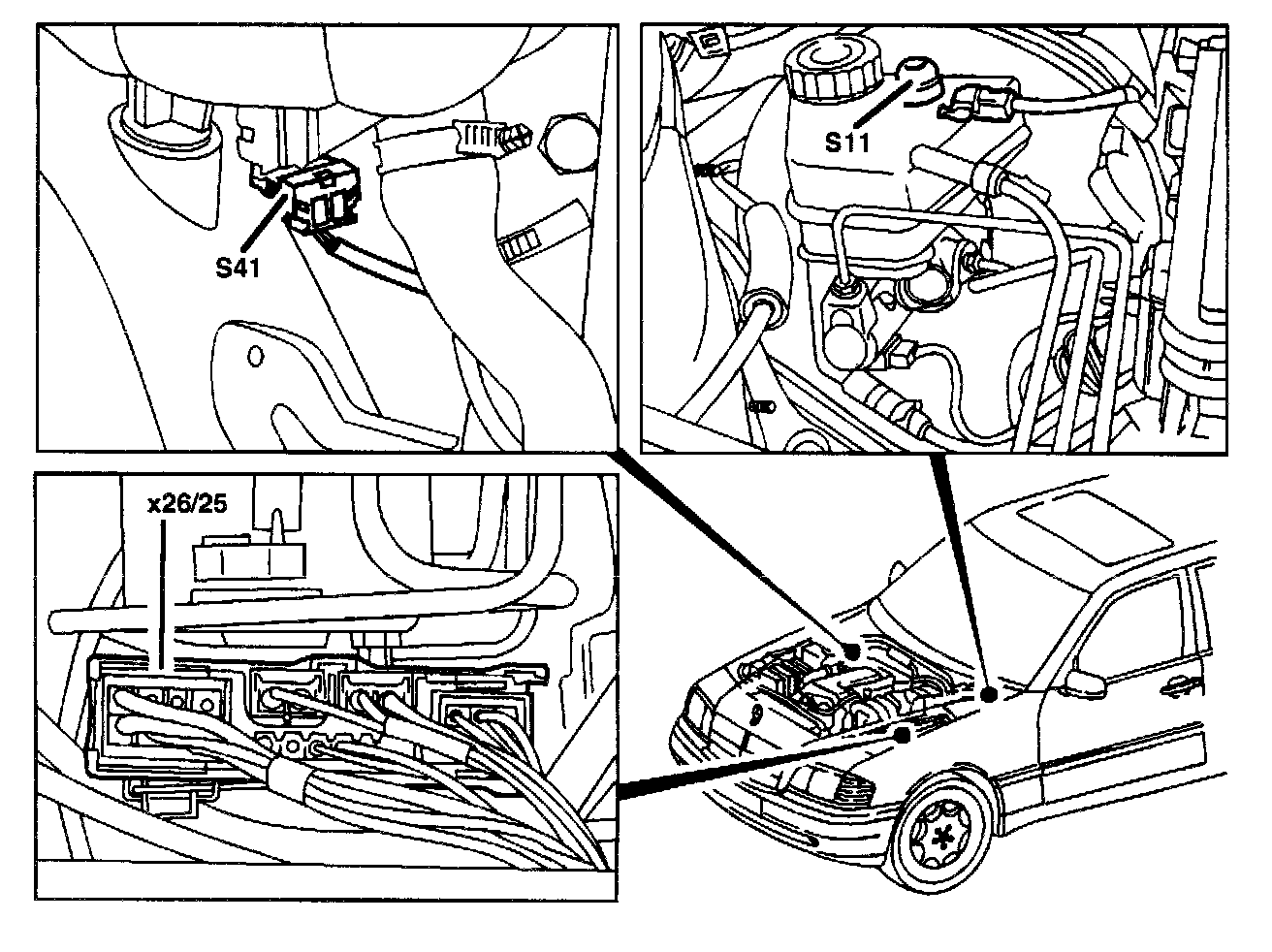

S11 Brake fluid level switch

S41 ECL switch

X26/25 Engine/chassis connector (24-pole)

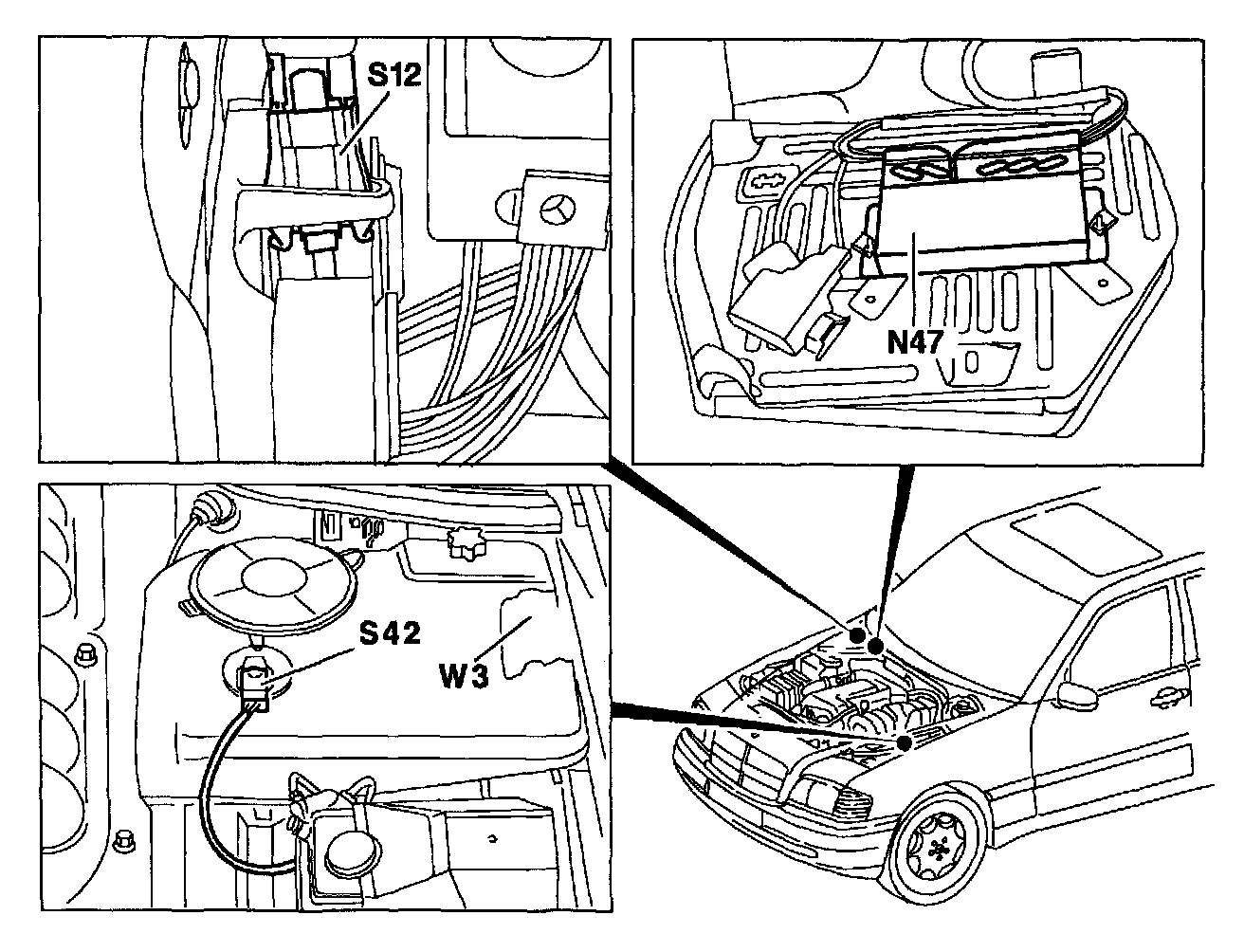

N47 Traction system control module

S12 Parking brake switch

842 Windshield washer fluid level switch

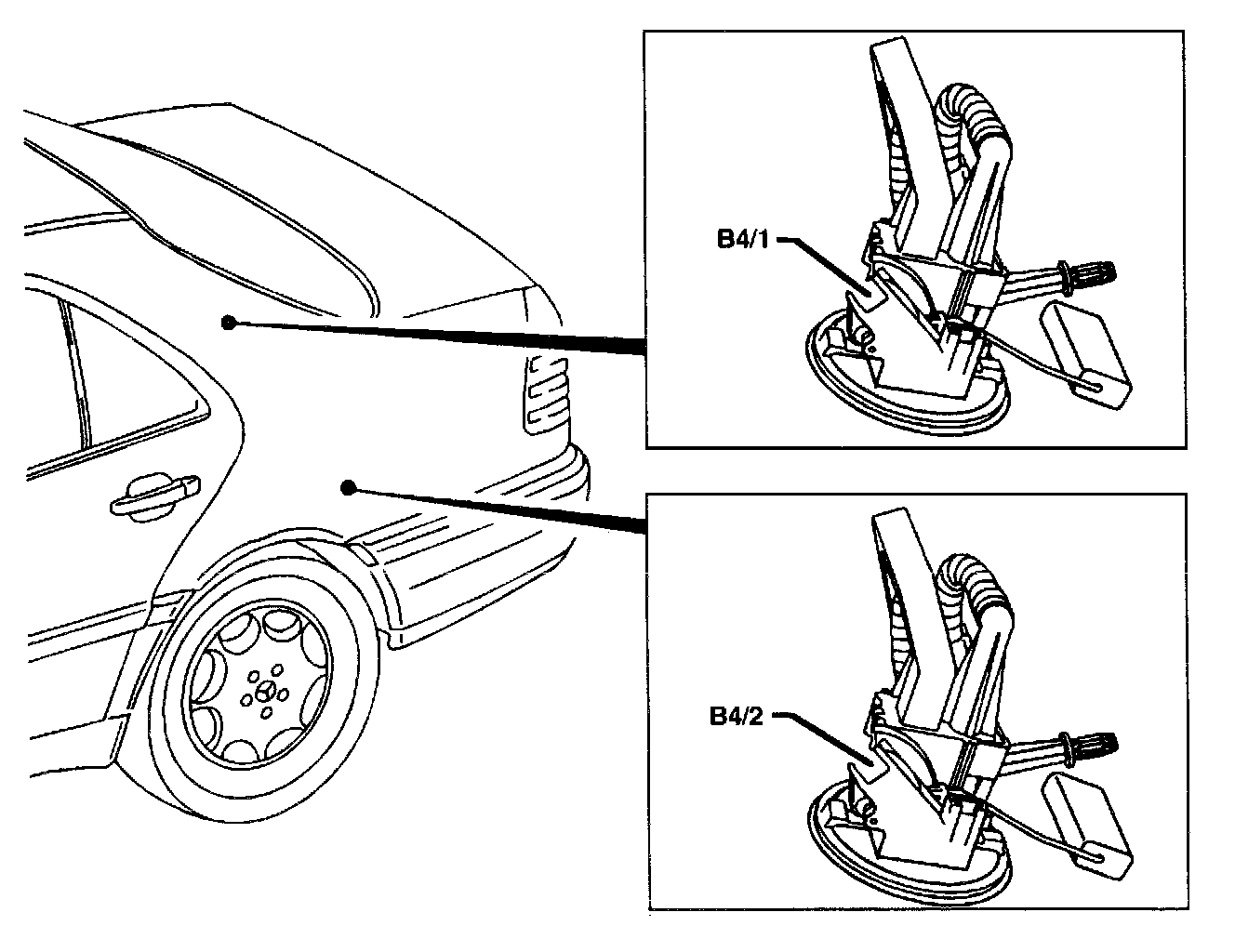

B4/1 Left fuel level sensor

B4/2 Right fuel level sensor

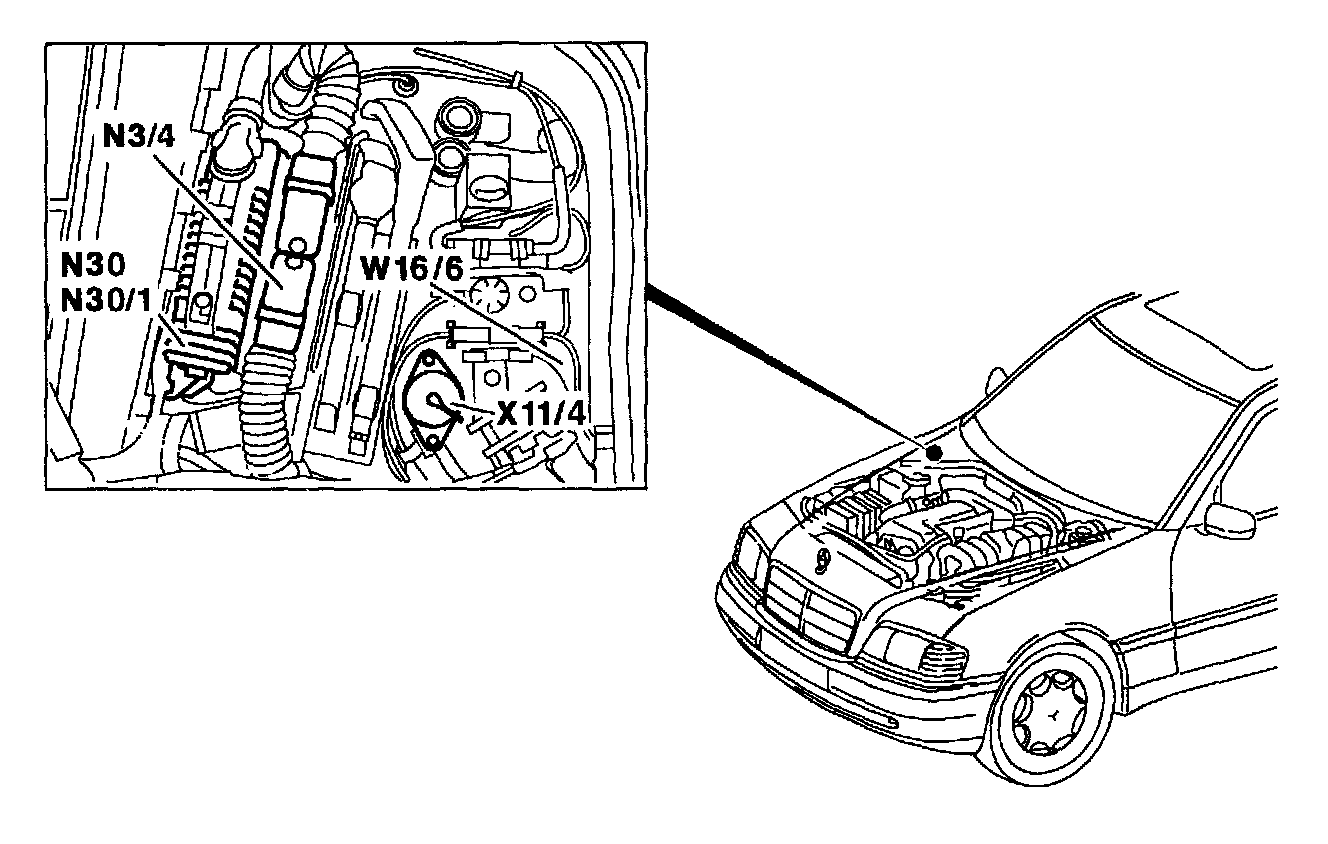

N3/4 Engine control module (HFM-SFI)

W16/6 Ground (component compartment)

X11/4 Data line connector (DTC)
