Air Conditioning (A/C)
Models 202 (as of MY 1996)

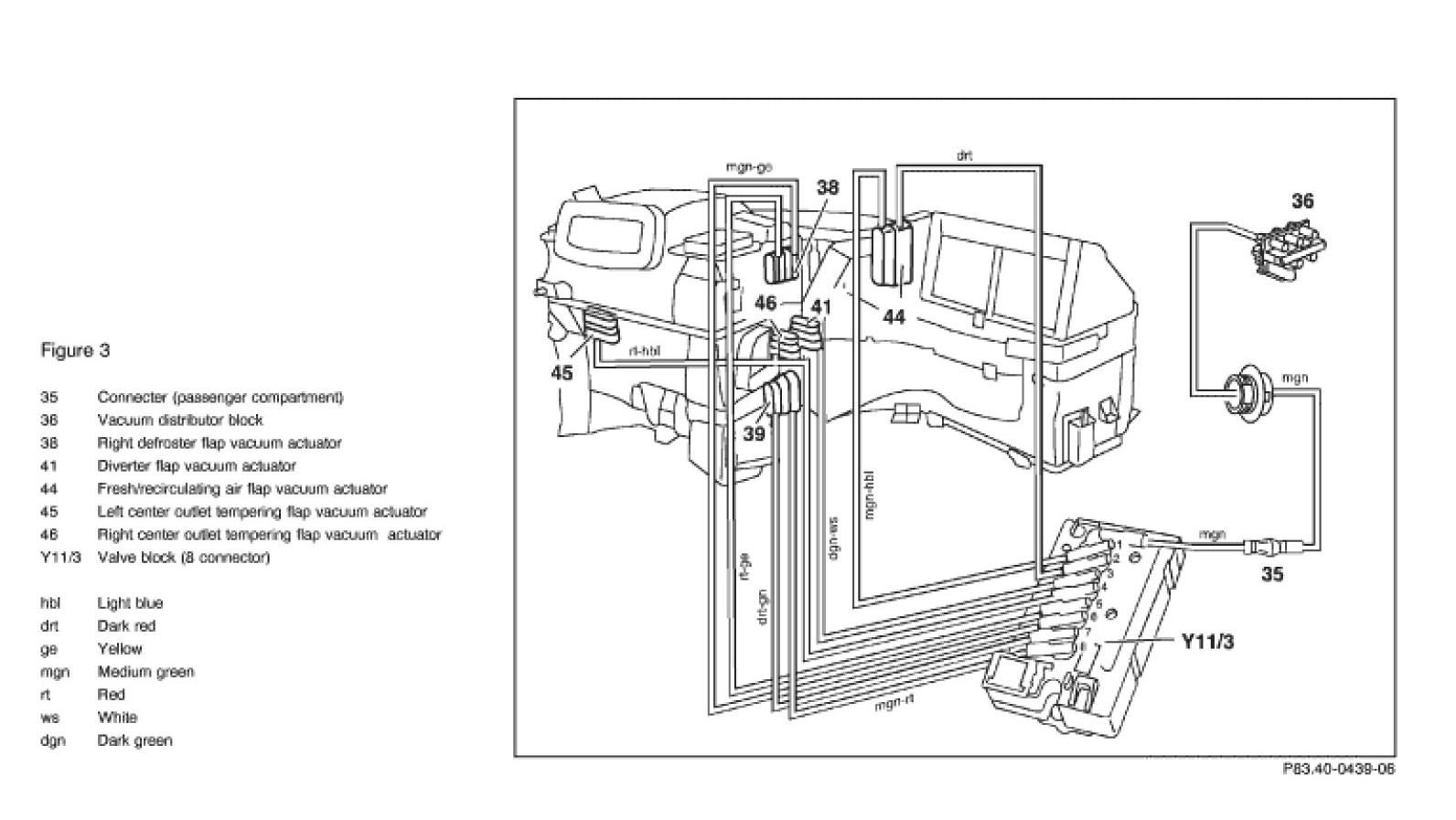

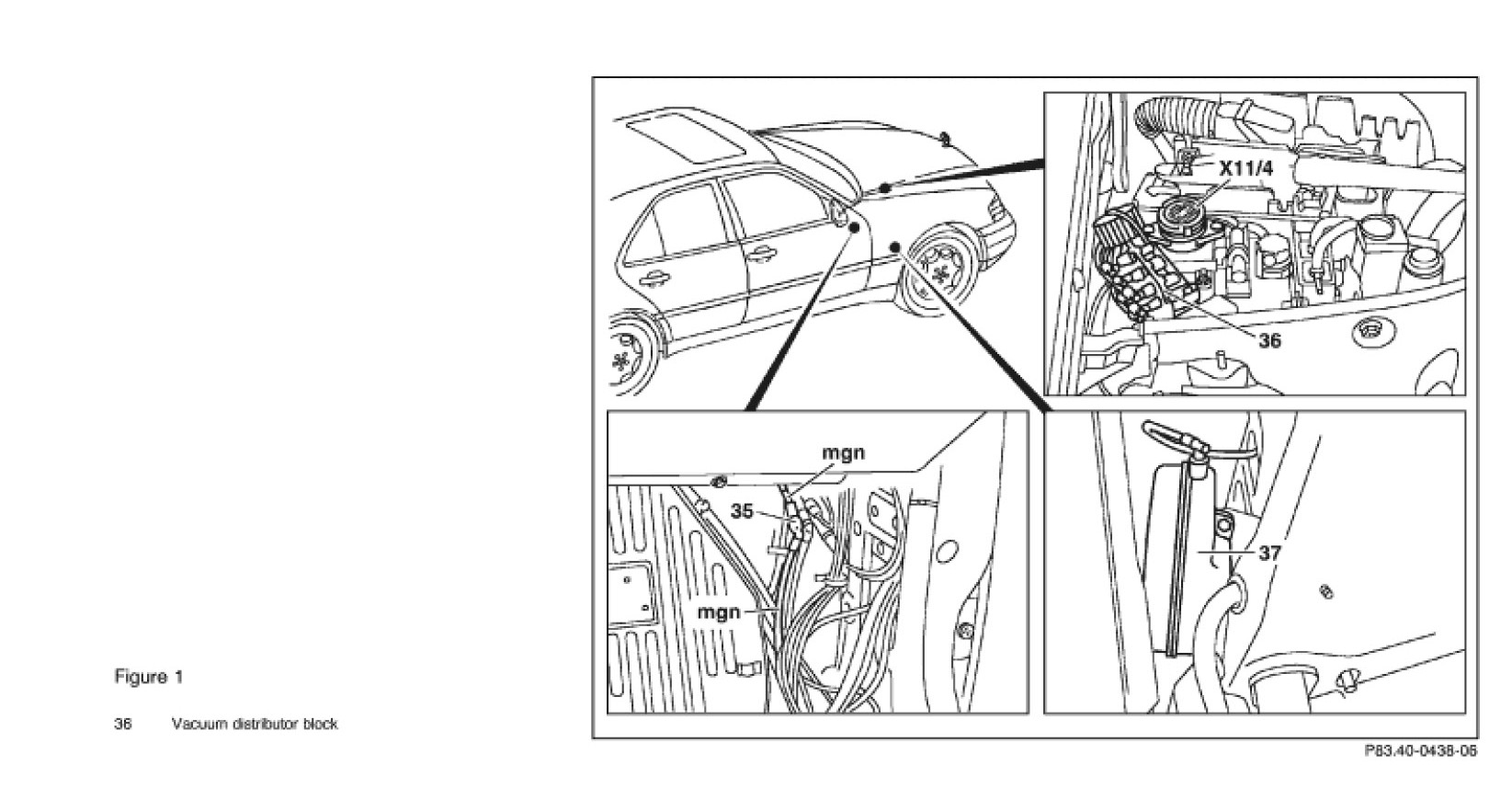

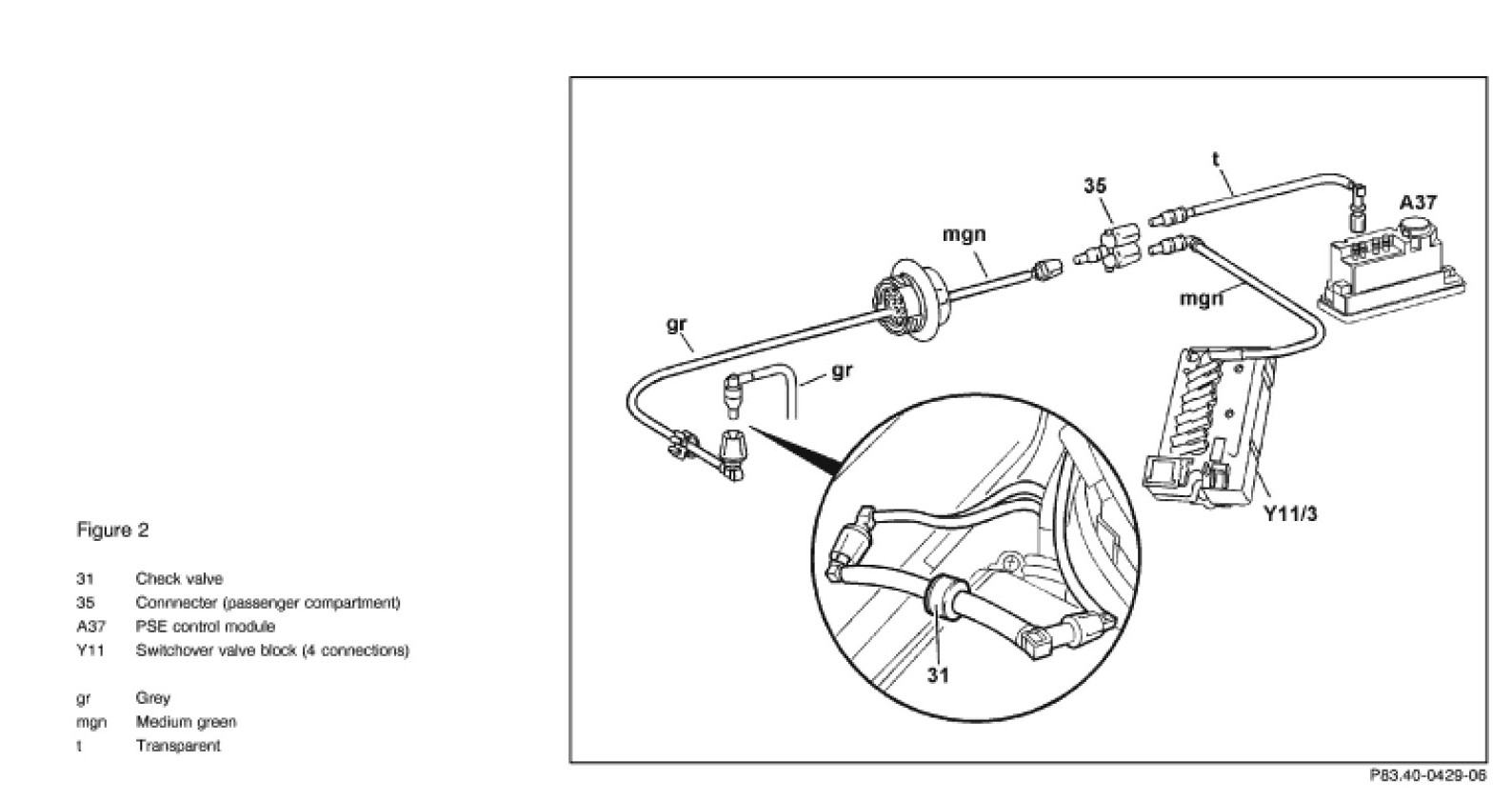

Pneumatic Test Program (PTP) - Component Locations
