Cabin Air Filter / Purifier: Service and Repair

2 Cover
3 Clip




1 Dust filter

Removal and Installation:
1. Remove cover panel below instrument panel. Service and Repair

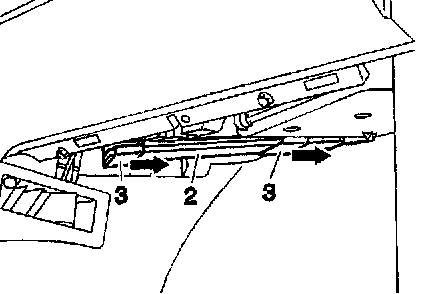

2. Take off cover (2). Push the two remaining clips (3) in the direction of arrow for this purpose.

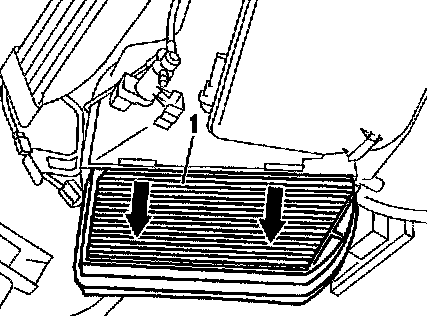

3. Pull dust filter (1) down and out (arrows).
4. Install in reverse order.
