Acceleration Slip Regulation (ASR) PE42.40-U-2000WC
Acceleration Slip Regulation (ASR) PE42.40-U-2000WC

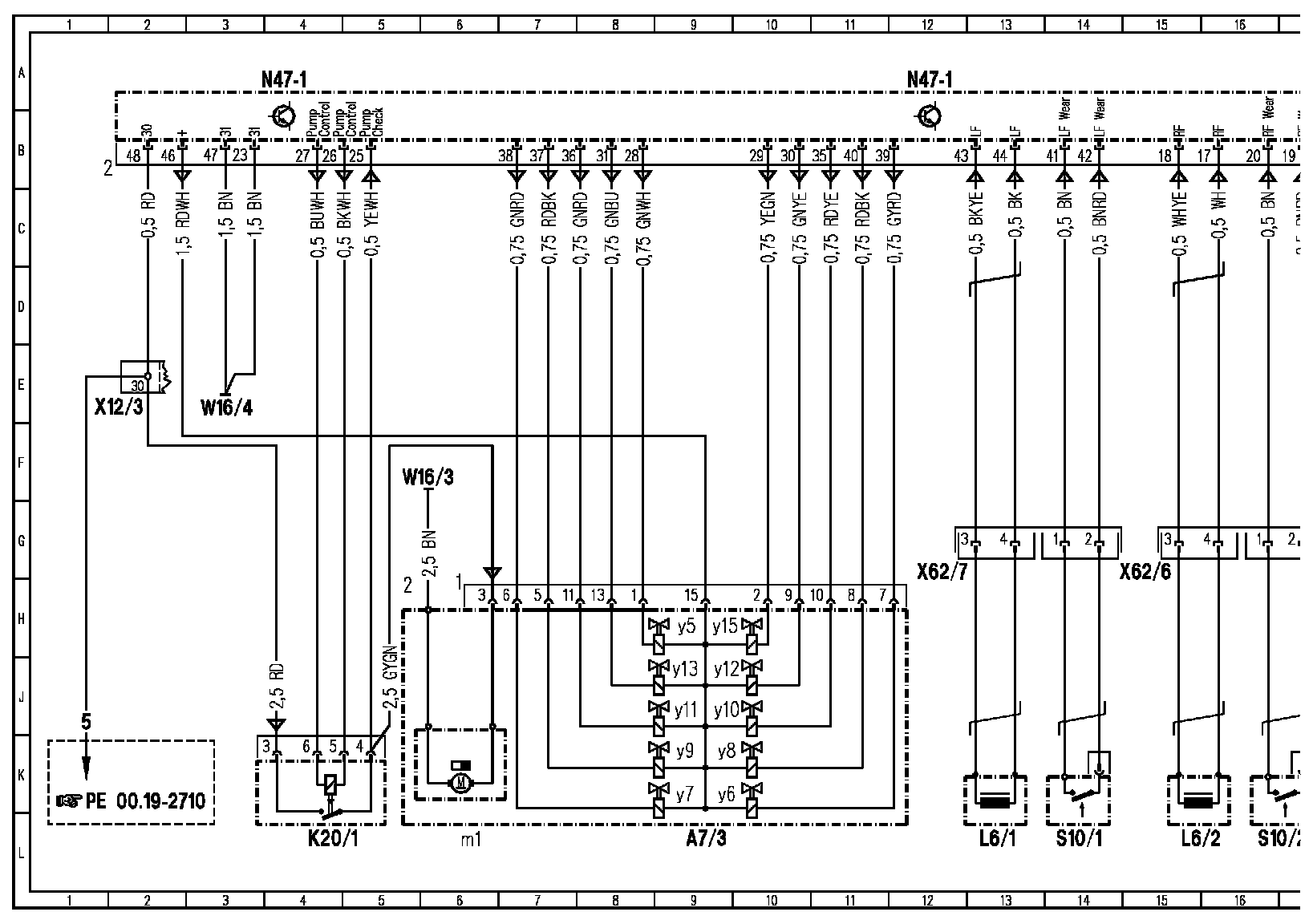

Wiring Diagram, Part 1:

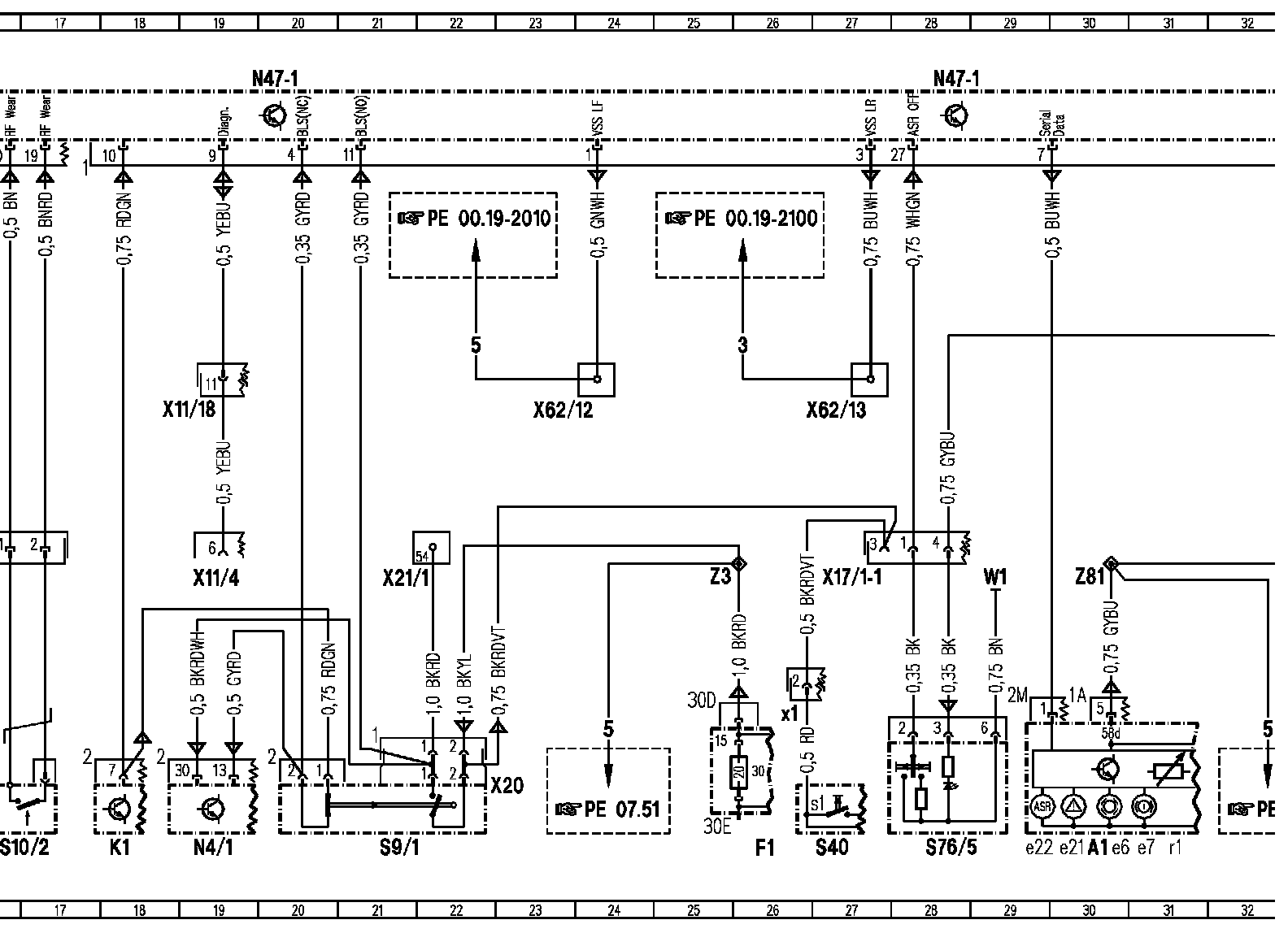

Wiring Diagram, Part 2:

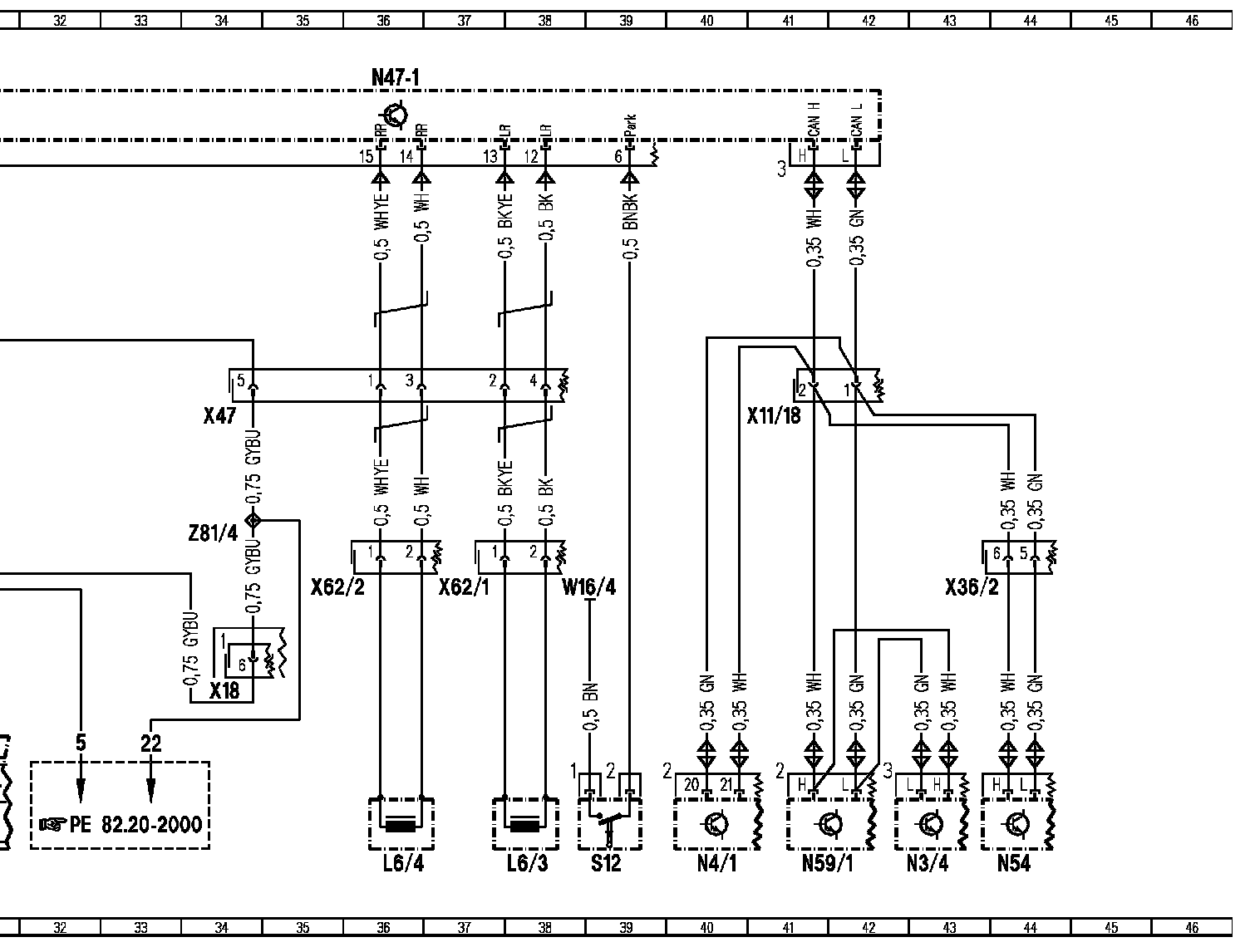

Wiring Diagram, Part 3:

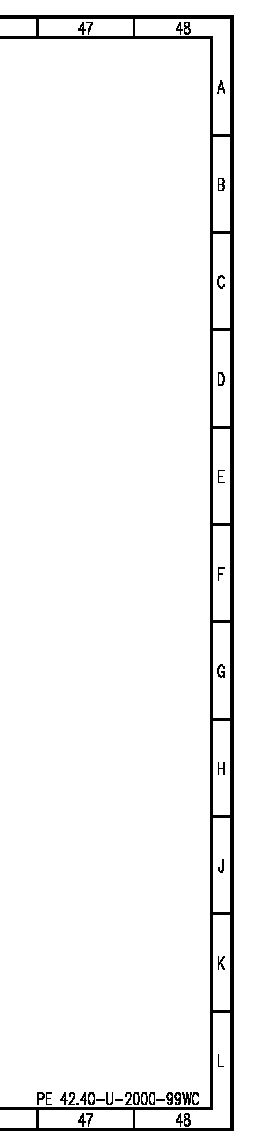

Wiring Diagram, Part 4:

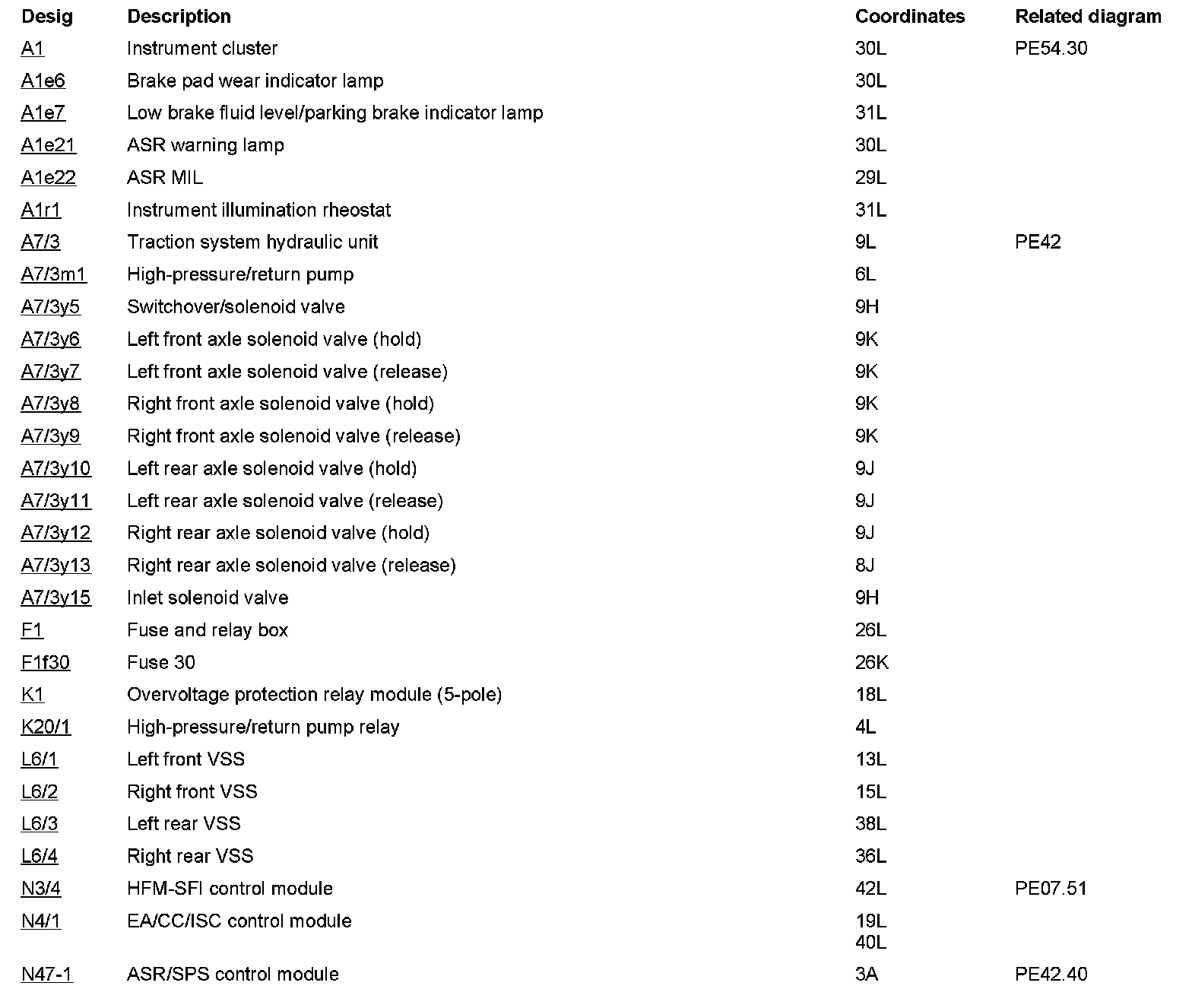

Component Description/Coordinates, A1 To N47-1:

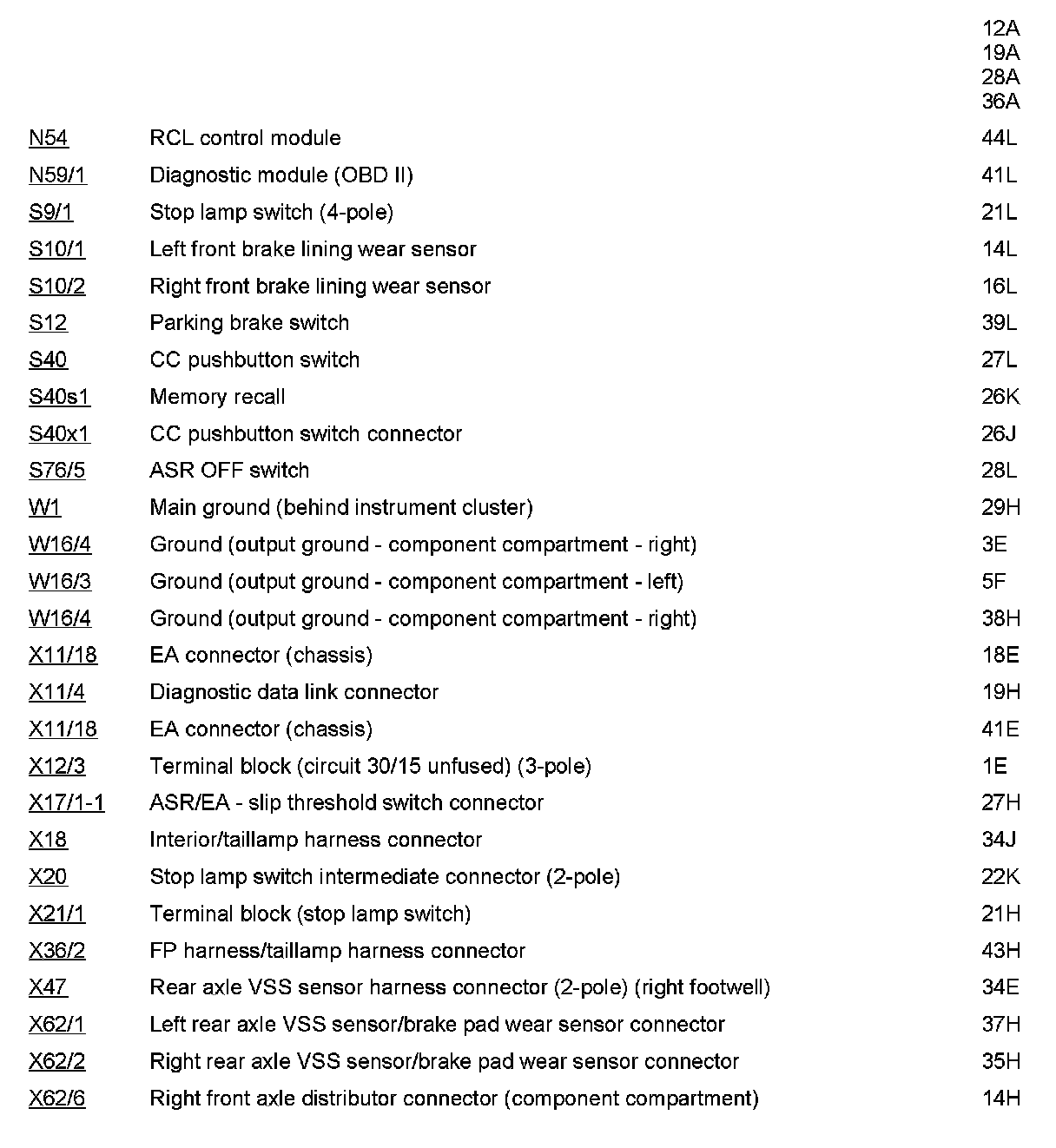

Component Description/Coordinates, N54 To X62/6:

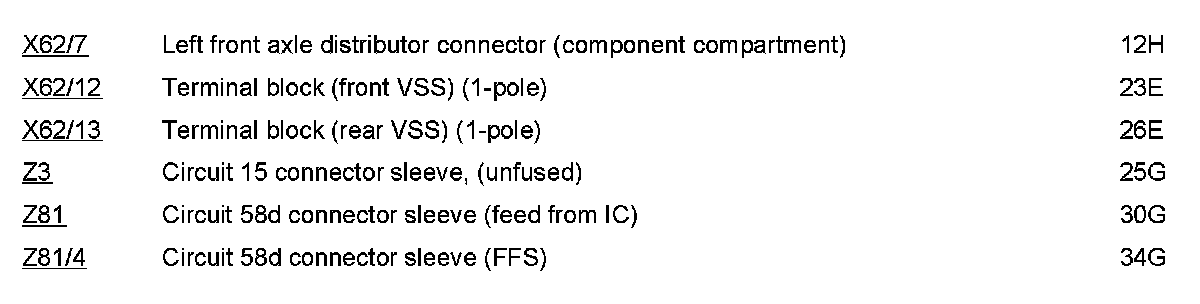

Component Description/Coordinates, X62/7 To Z81/4:
Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
