Seat Bladder: Service and Repair



AR91.25-P-1680E Removing And Installing Multi-contour Backrest Air Cushions On Left And Right Front Backrests
- with CODE (404) orthopaedic front seat backrest, left
- with CODE (405) orthopaedic front seat backrest, right

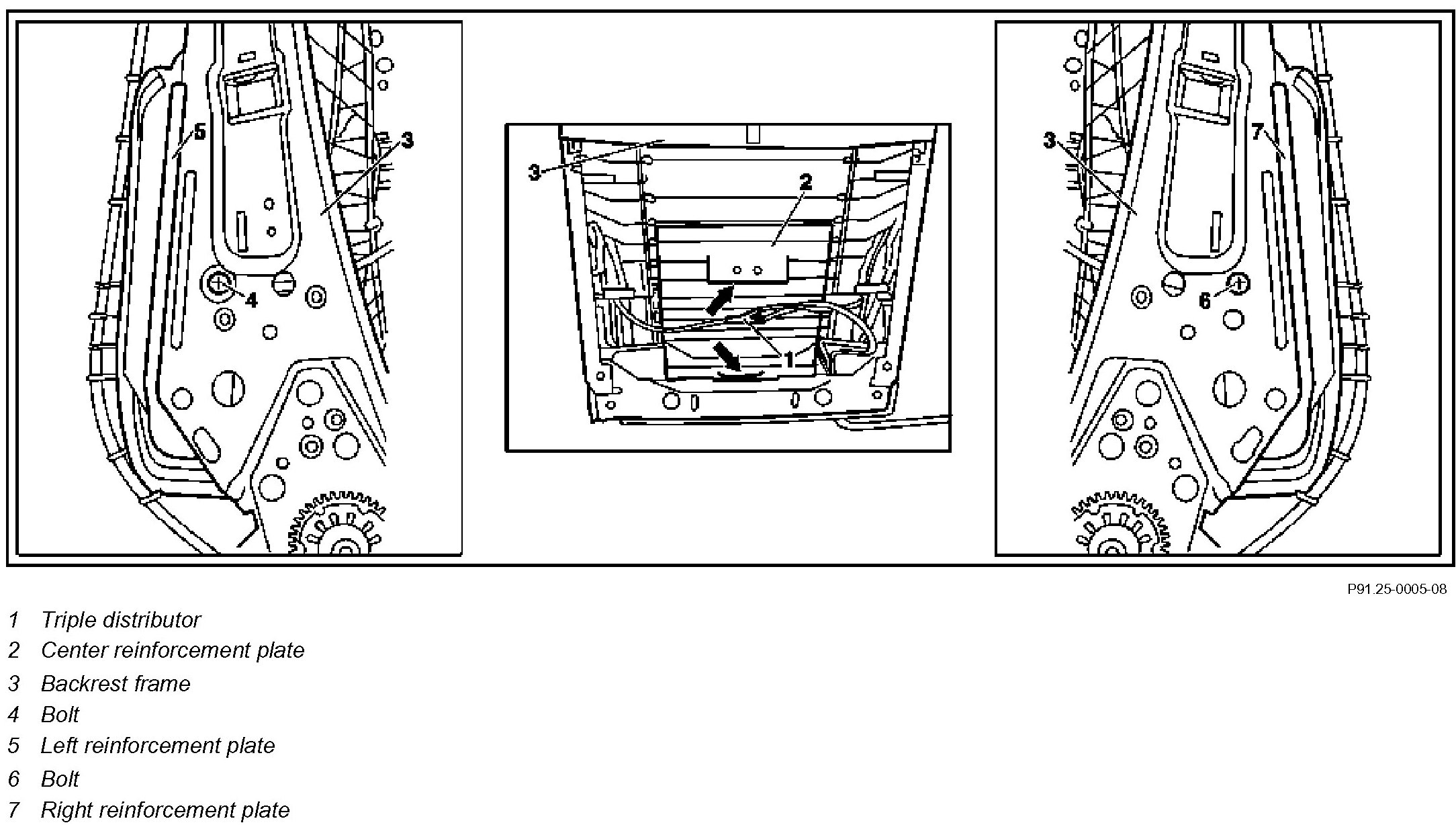

Component Identification:

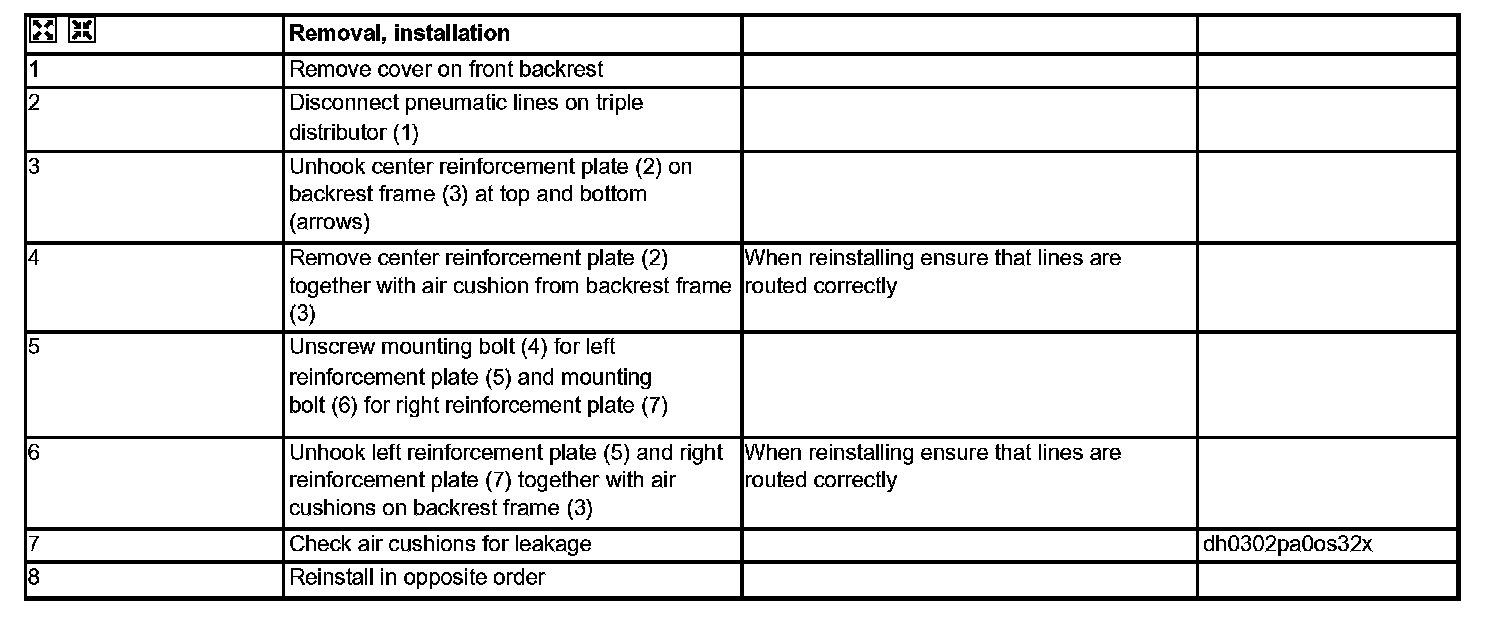

Steps 1 - 8:
