Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1996
>>
C 220 (202.022) L4-2.2L (111.961)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Front Bumper
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR88.20-P-2000E Removing And Installing Front
Bumper

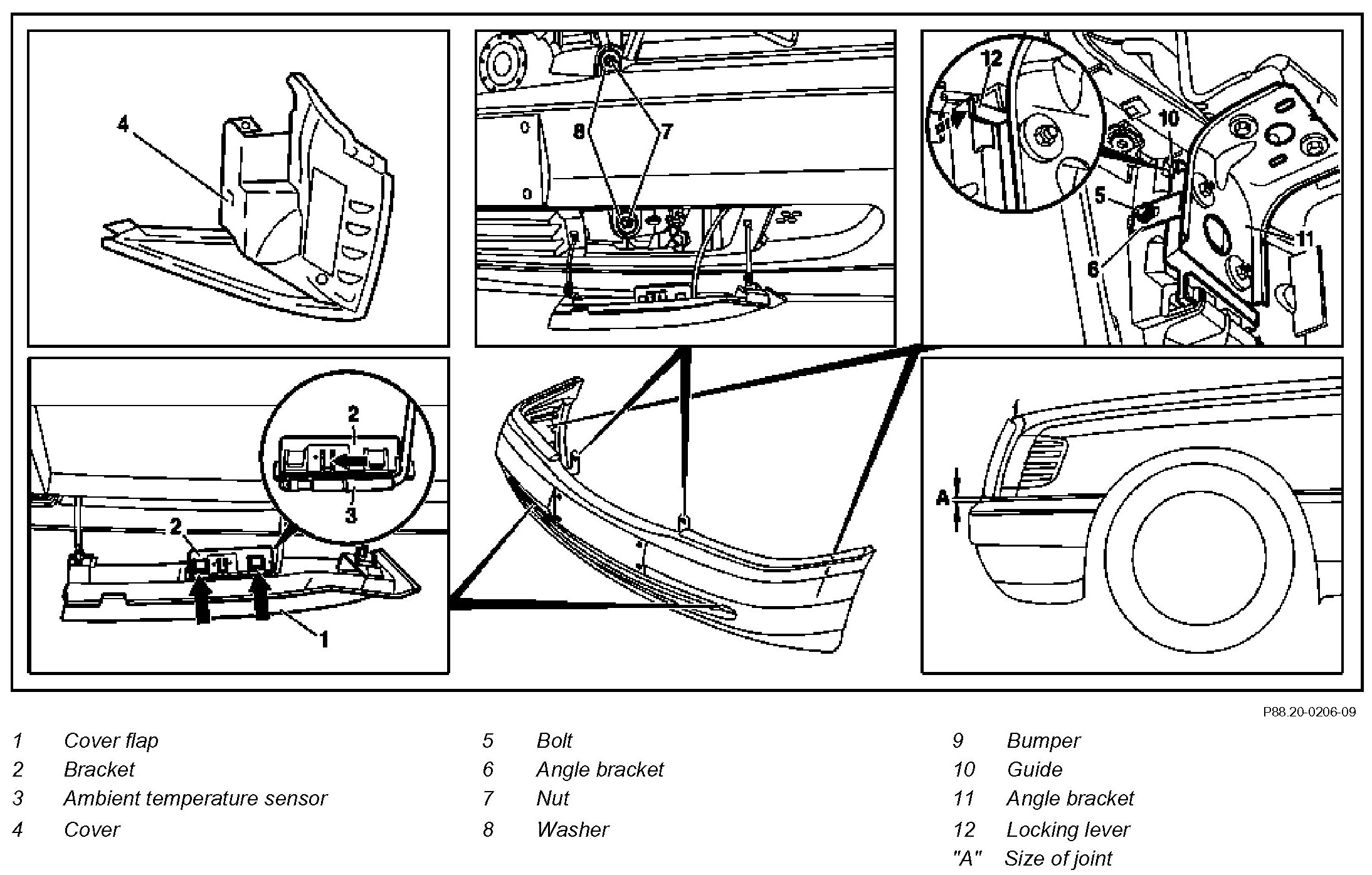

Component Identification:

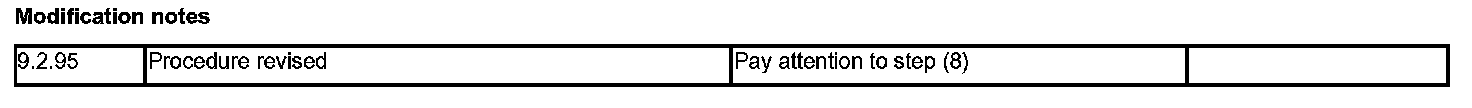

Modification Notes:

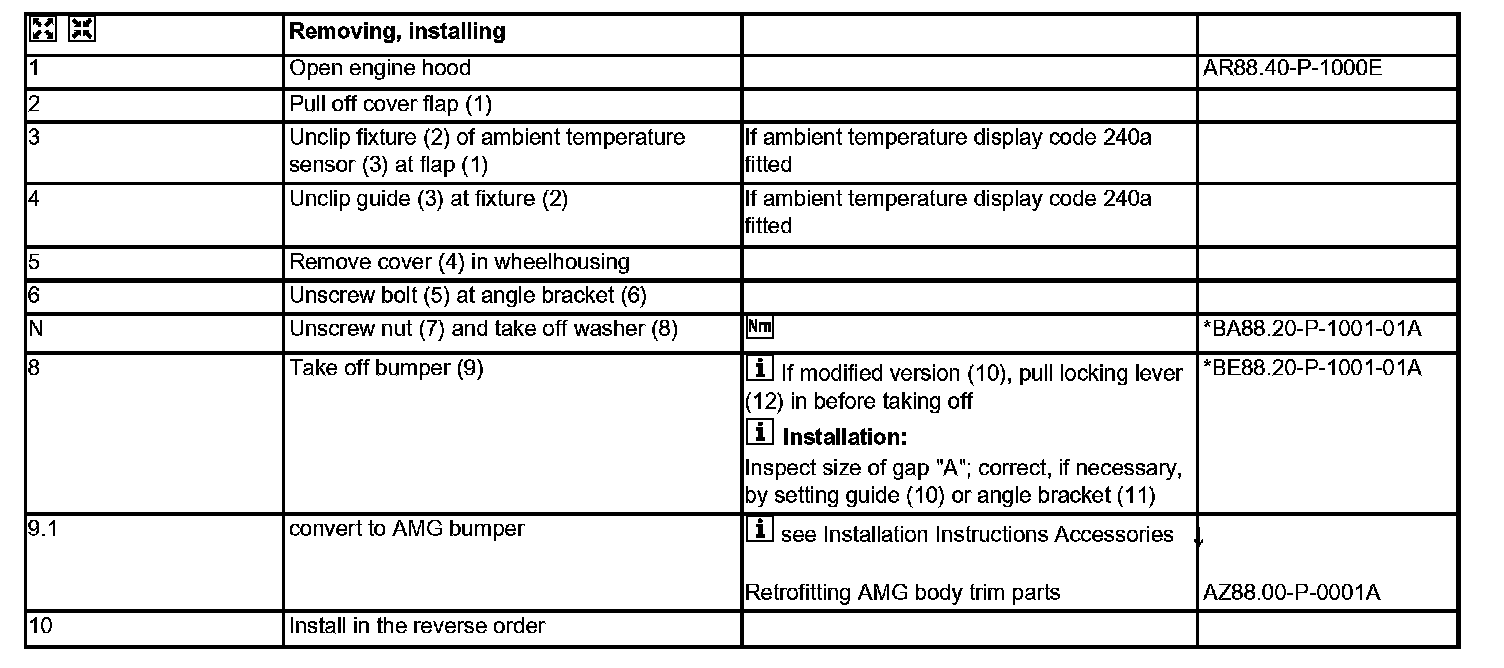

Steps 1 - 10:

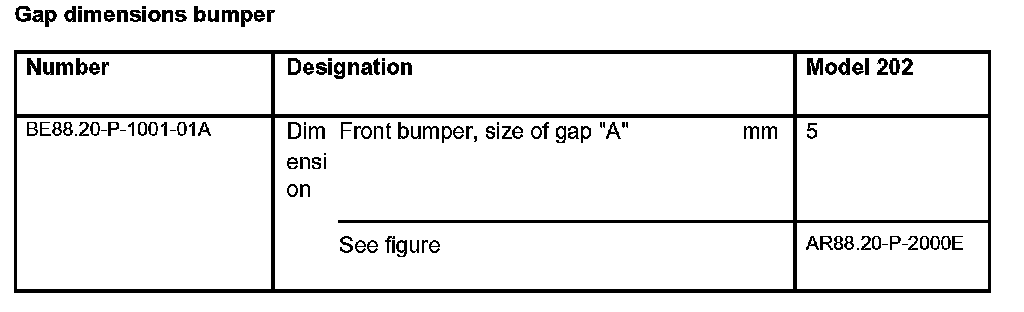

Gap Dimensions Bumper:

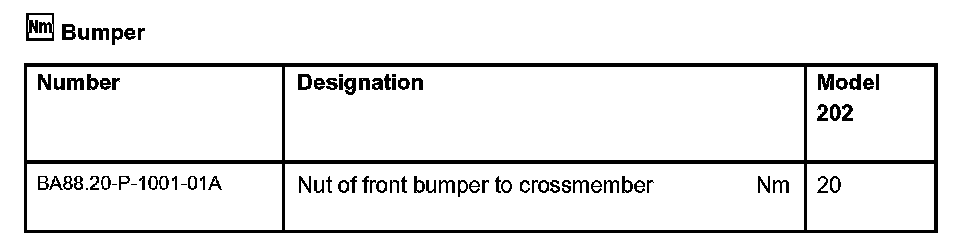

Bumper:
