Component Location and Identification

Up to 08/96

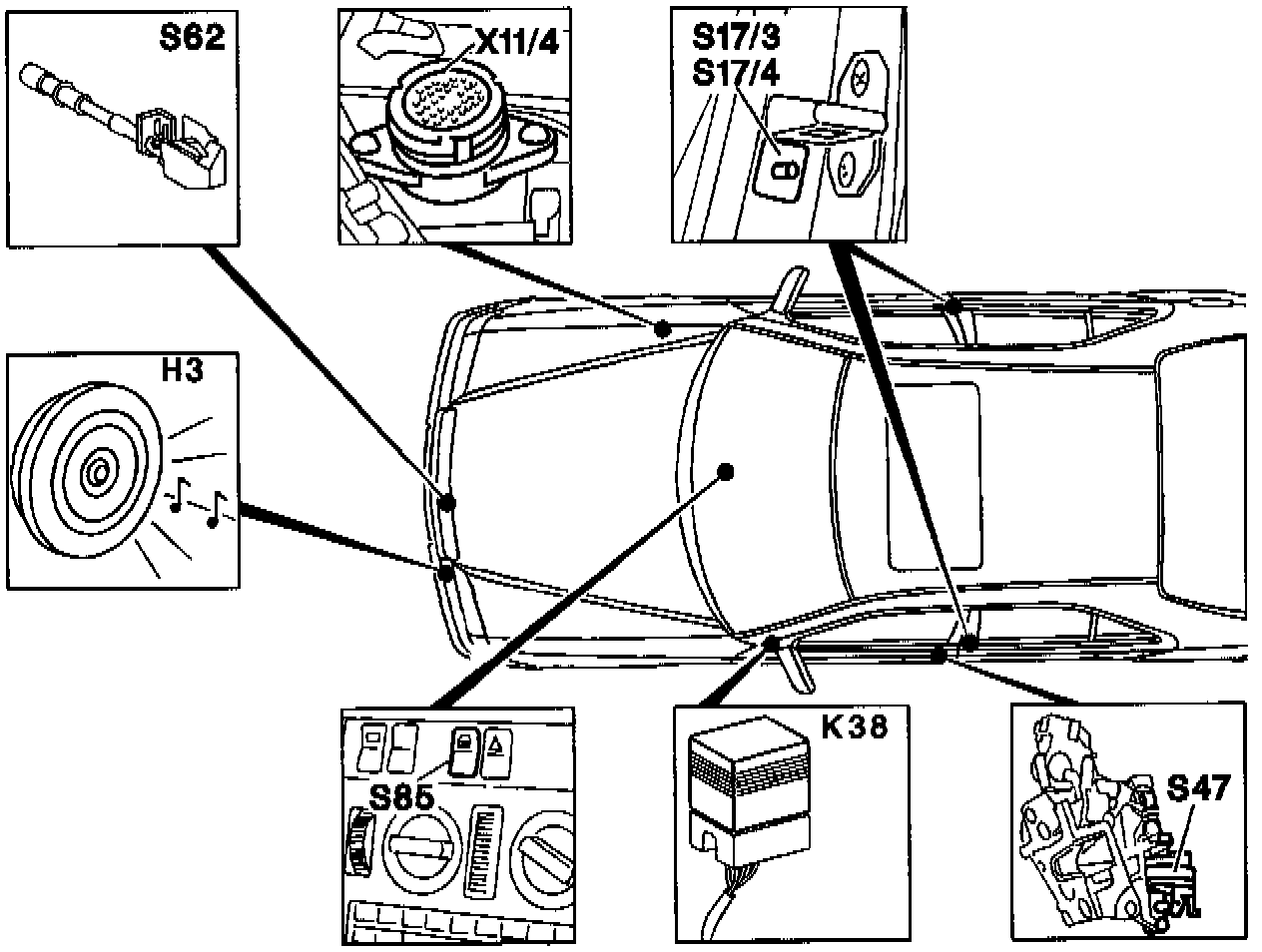

Fig. 1:

H3 Alarm horn
k38 Starter lock-out relay module (up to 01/94, lower A-pillar)
S17/3 Left door switch
S17/4 Right door switch
S47 Left door actuator
S62 Hood switch
S85 Interior CL switch
X11/4 Data link connector

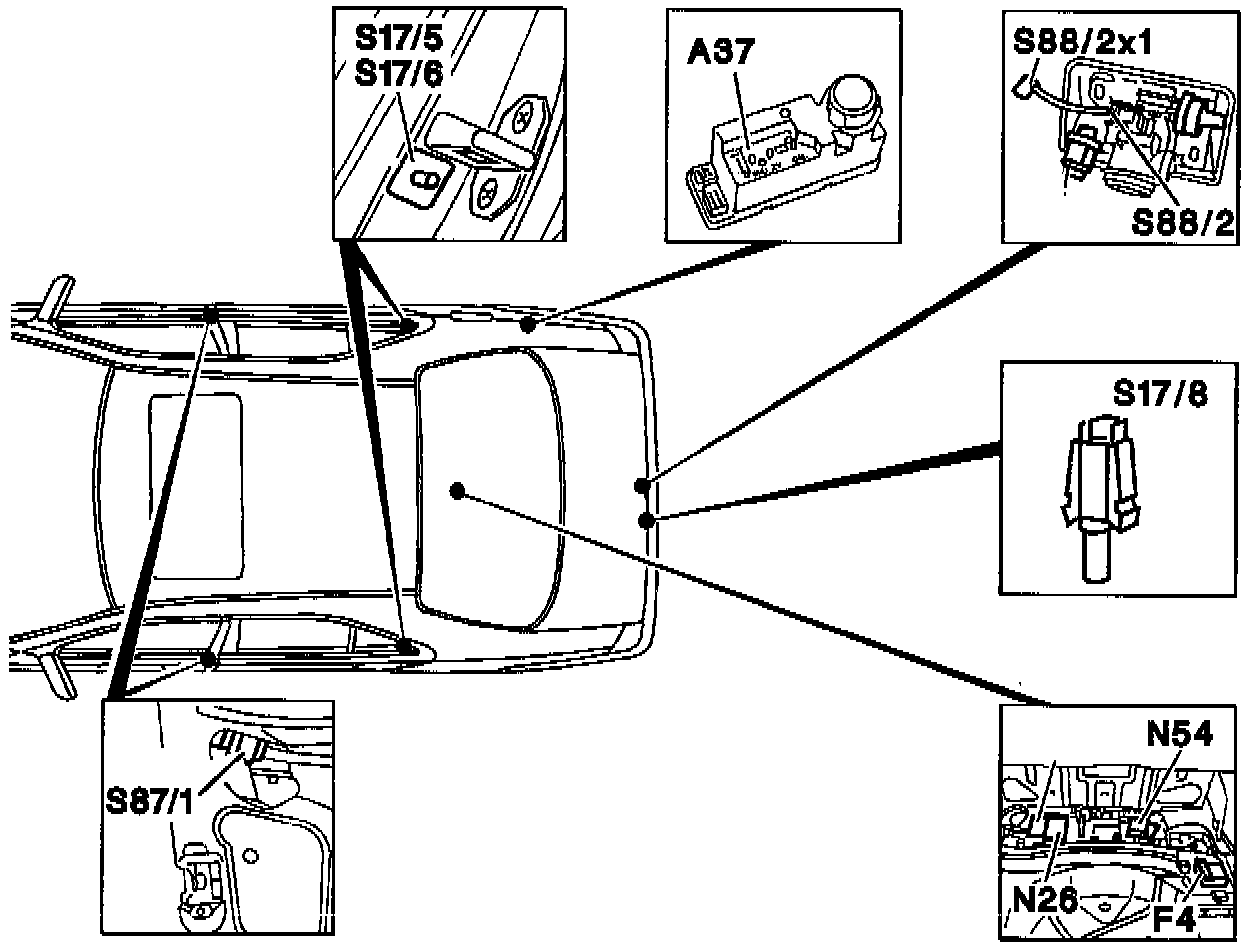

Fig. 2:

A37 PSE control module
F4 Fuse box in trunk
N26 ATA control module
N54 RCL control module
S17/5 Left rear door switch
S17/6 Right rear door switch
S17/8 Trunk lamp switch
S87/1 Right front door lock switch (CF)
S88/2 Trunk lid lock switch
S88/2x1 Trunk lid lamp switch connector

As of 09/96

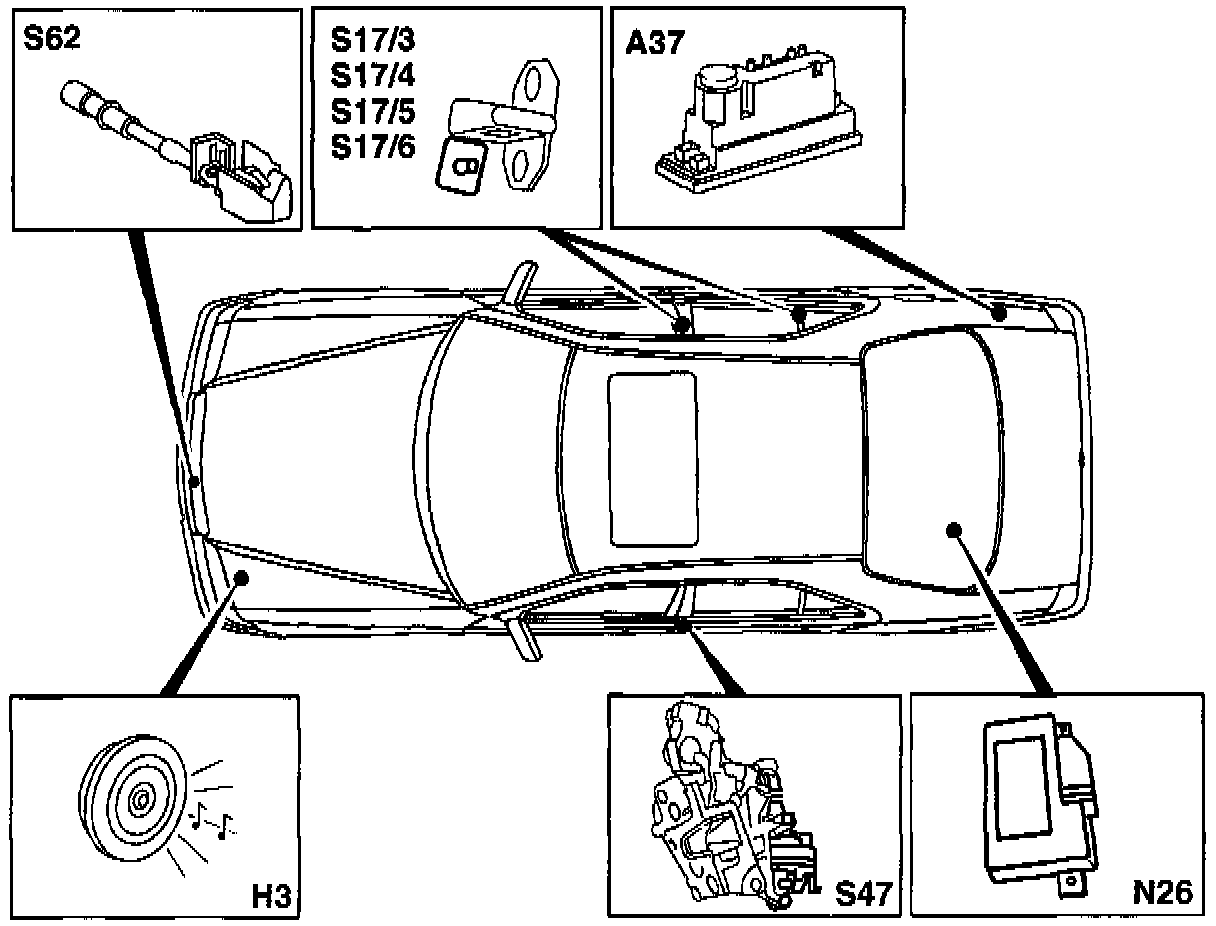

Fig. 3:

A37 PSE control module
H3 Alarm horn
N26 ATA control module
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch
S47 Left front door actuator
S62 Engine hood switch (ATA)
