Data Link Connector
OBD I

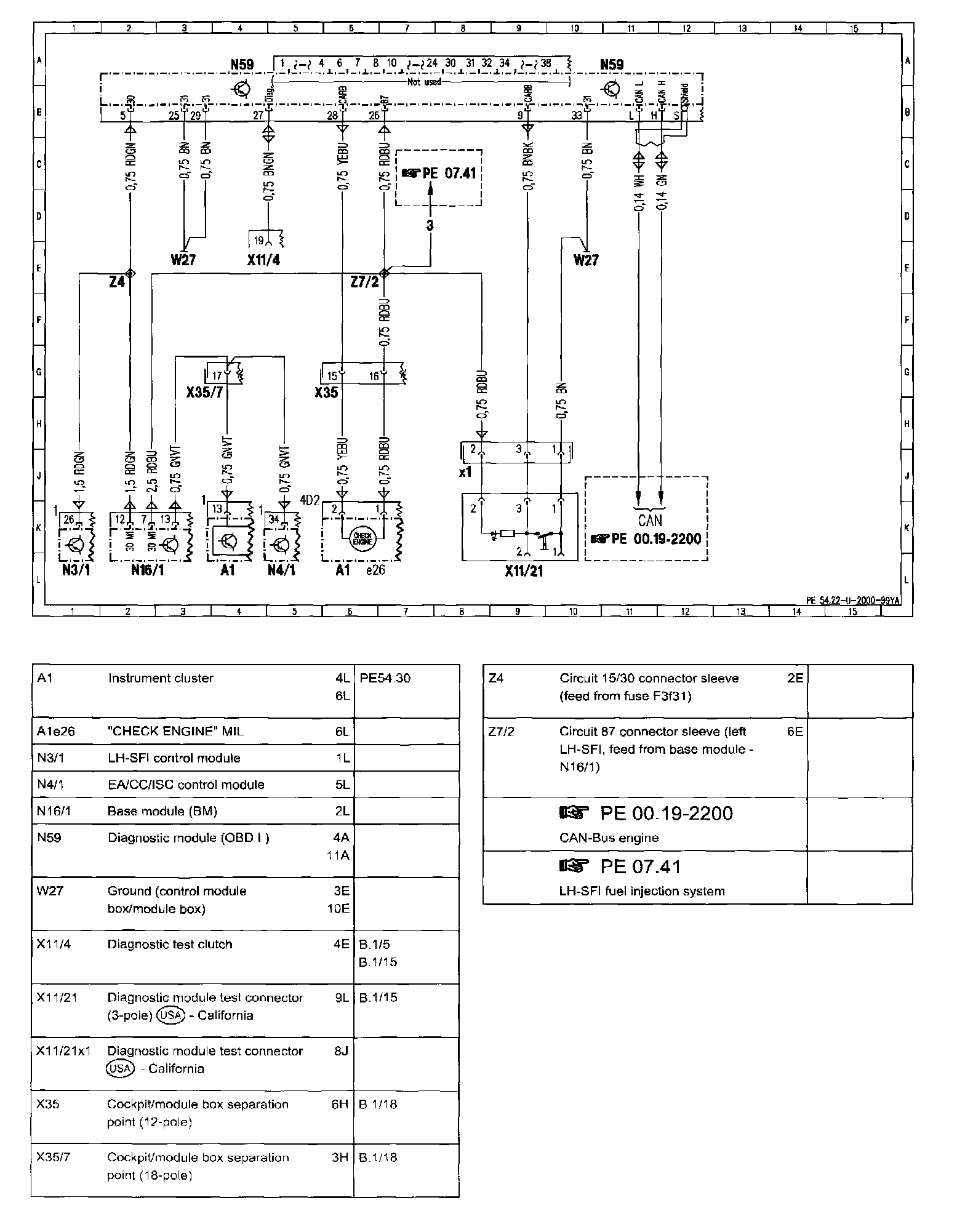

PE54.22-U-2000YA - OBD I:

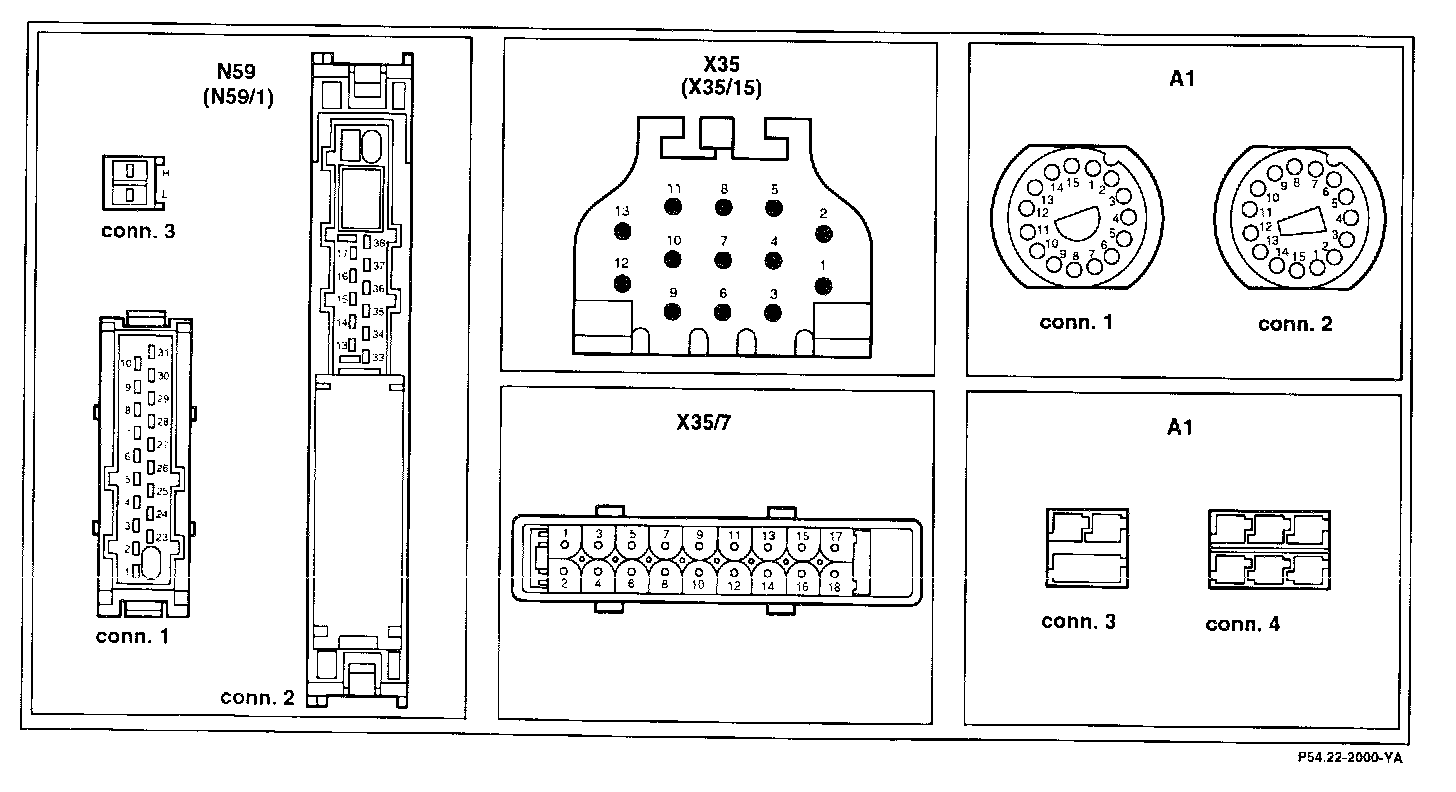

Connector Assignment:

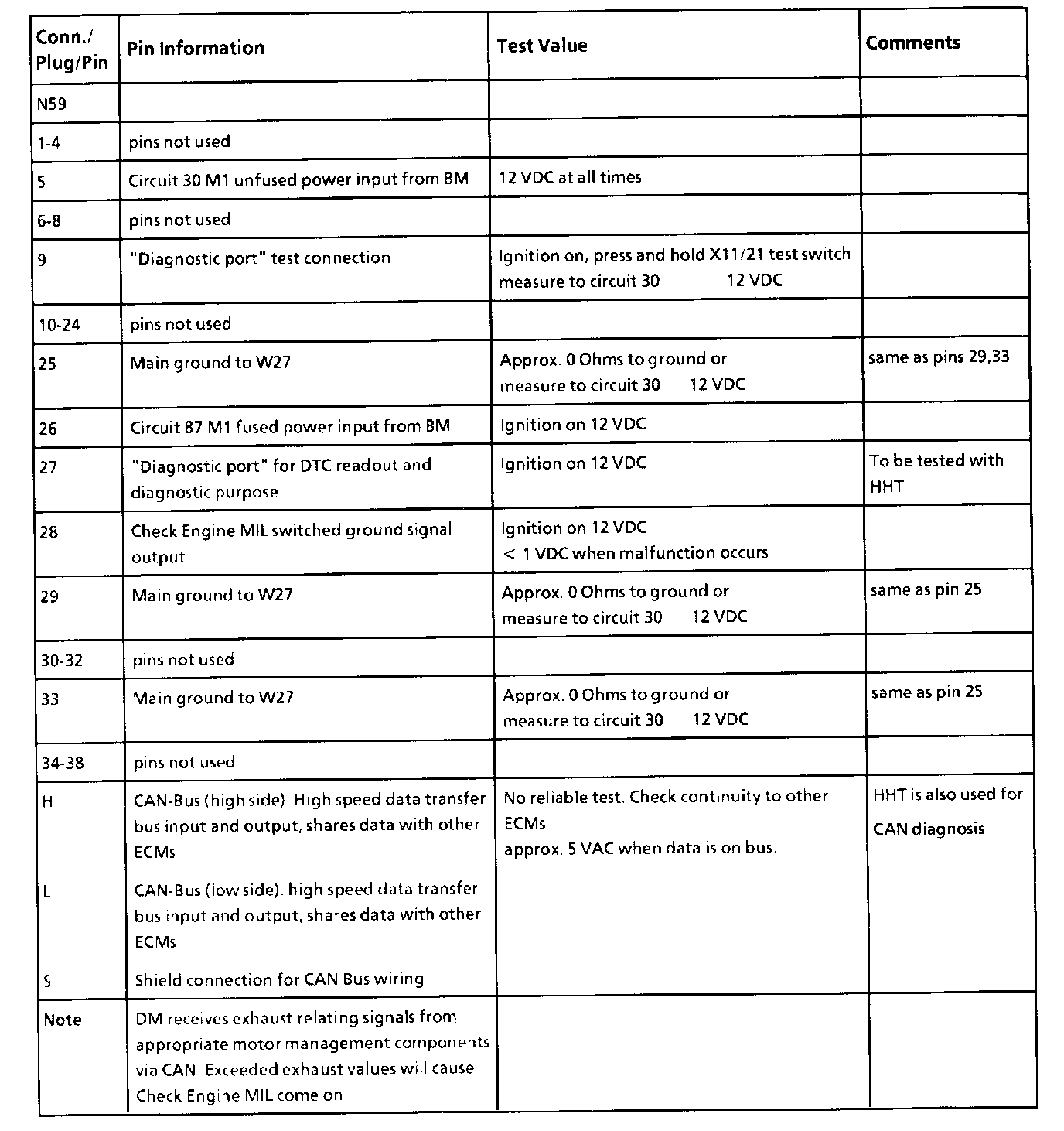

Pin Information:
All values measured to ground unless otherwise noted.
