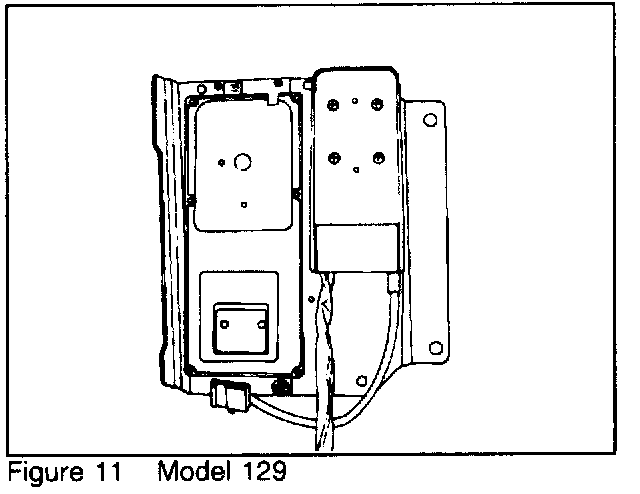

Model 129 Only

1. Remove left trunk panel.

2. Assemble TR to mounting plate using end brackets (ensure that the antenna connector is on top).





3. Attach voice recognition module (VRM) to mounting plate with four short screws.

4. Remove protective caps from studs in bottom of wheel well. Partially remove carpeting from left trunk area. Install clips to longitudinal rail over existing holes. Replace carpeting. Position TR mounting plate over studs in wheel well. Insert sheet metal screws through holes in TR plate into clips, do not tighten. Place nuts on studs and tighten. Tighten sheet metal screws.
