With at 5
With at 5
Engine 104 HFM With AT 5

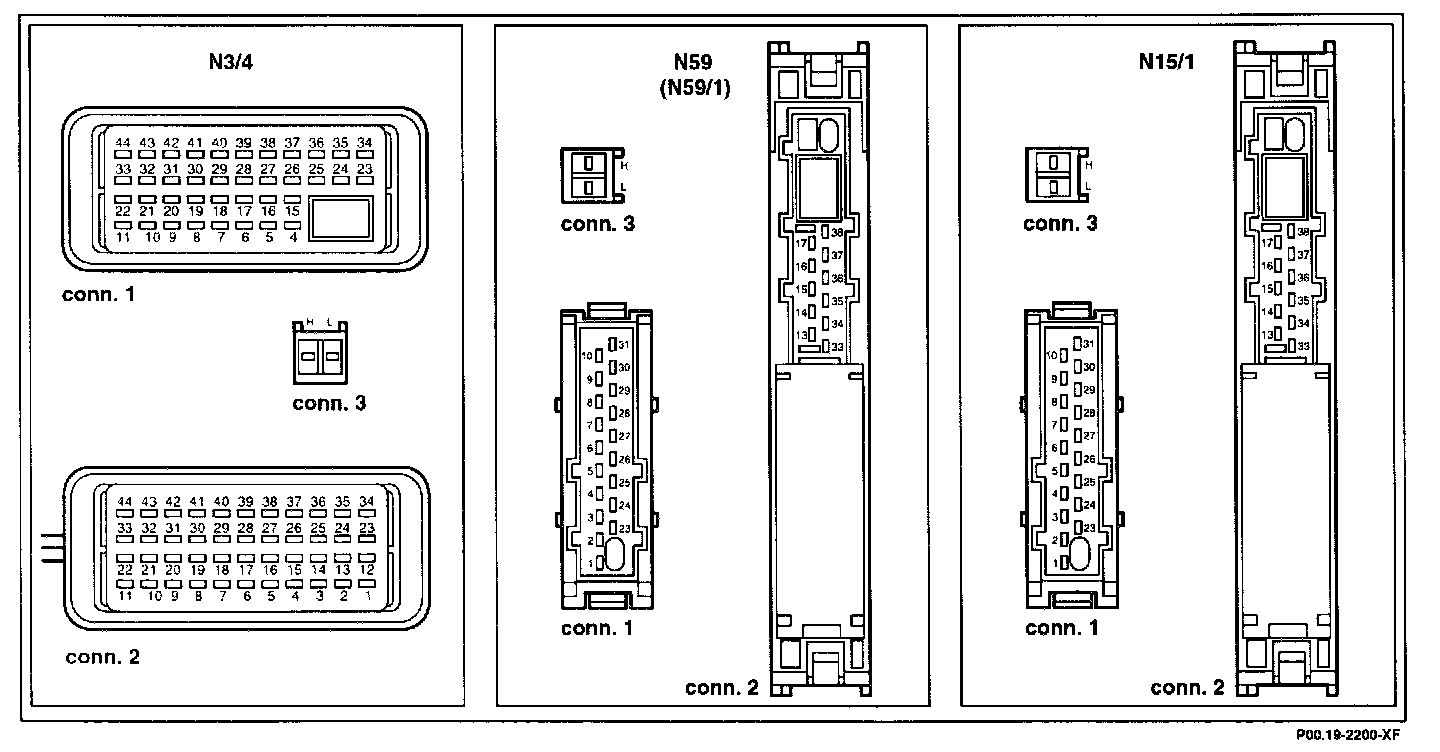

Connector Assignment:

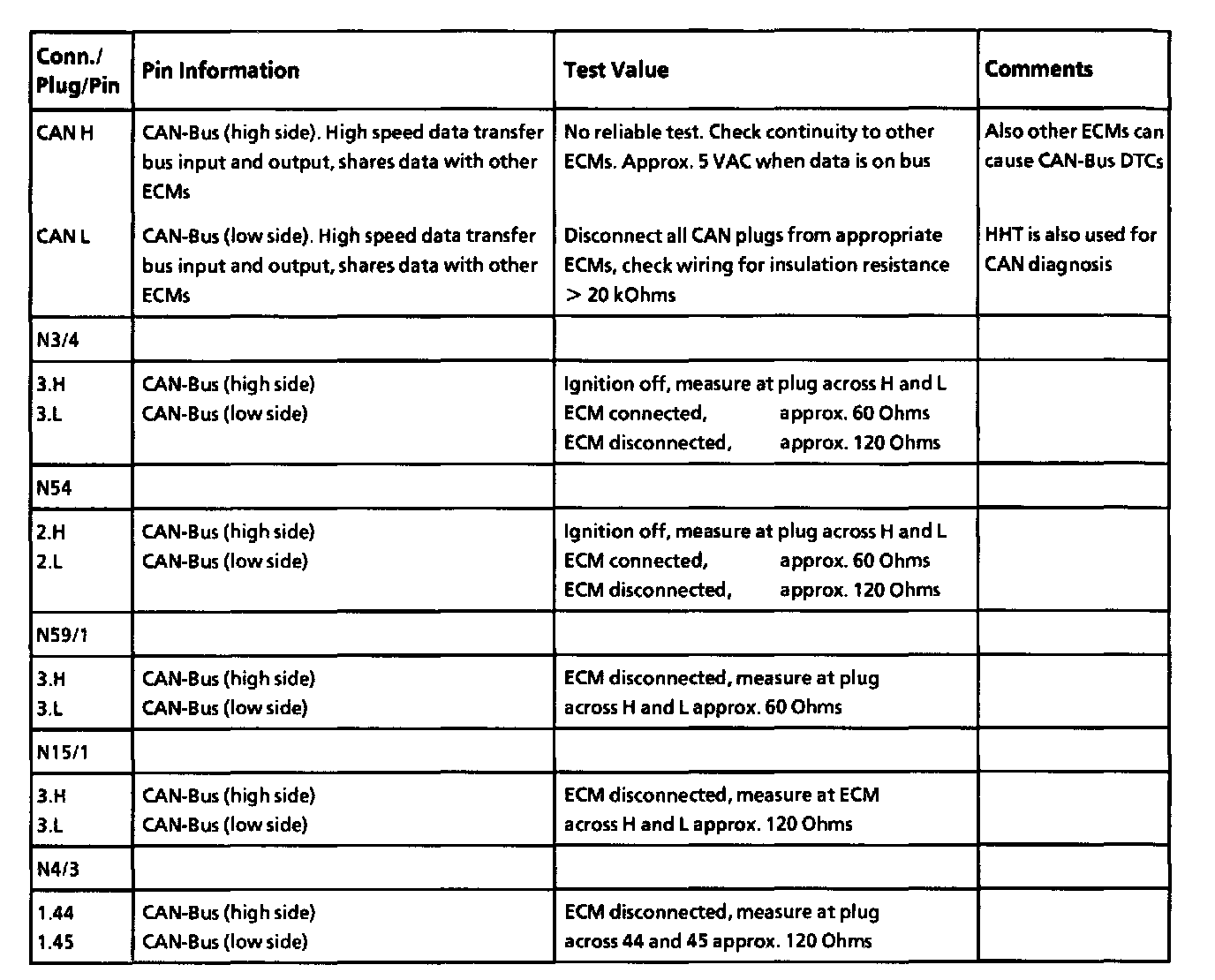

Pin Information:
All values measured to ground unless otherwise noted
