Electrical Diagrams

�Q�S��Electronic Accelerator/Cruise Control/Idle Speed Control:




Wiring Diagram

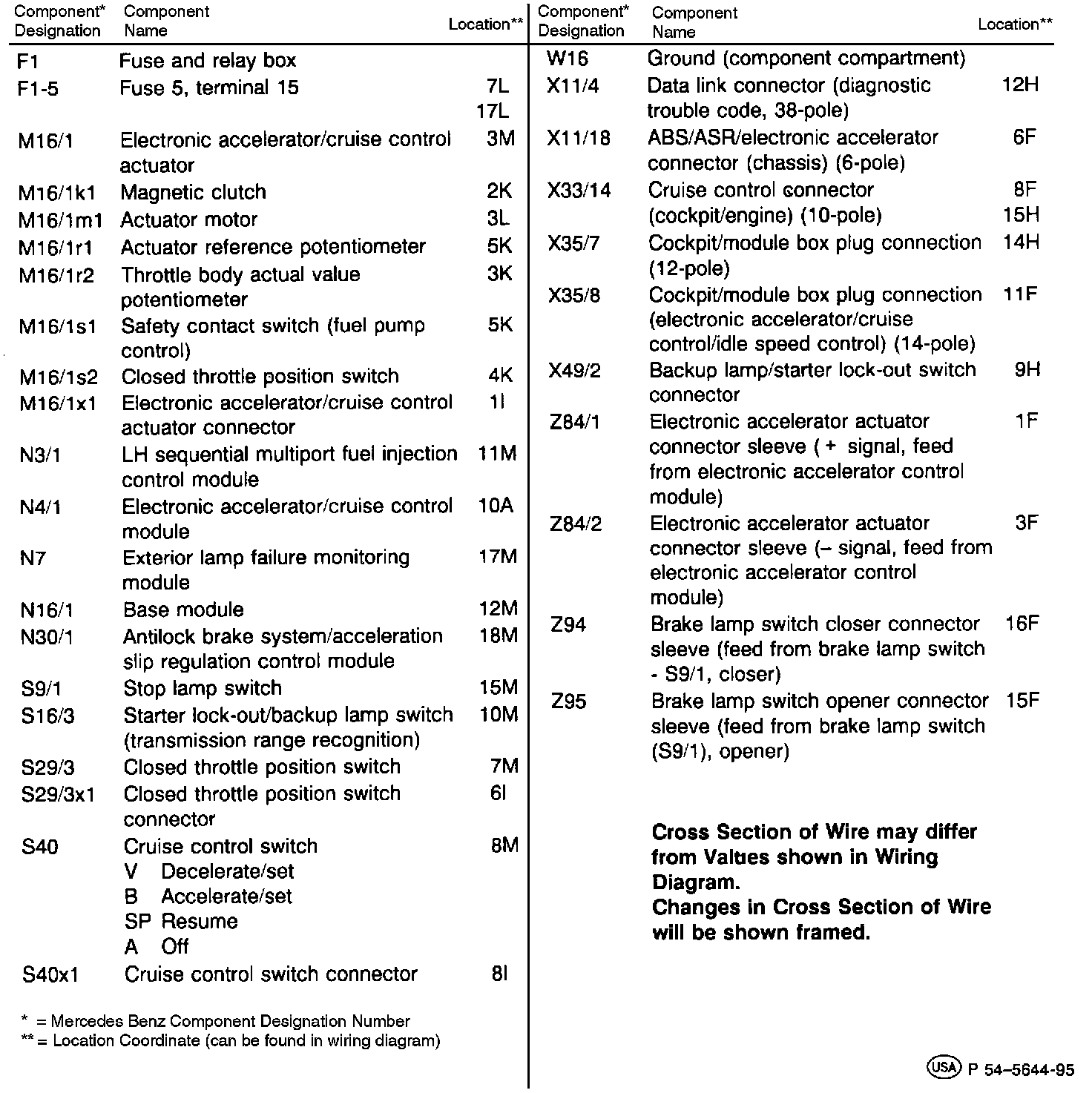

Electronic Accelerator/Cruise Control/Idle Speed Control - Component Index:




Component Index
