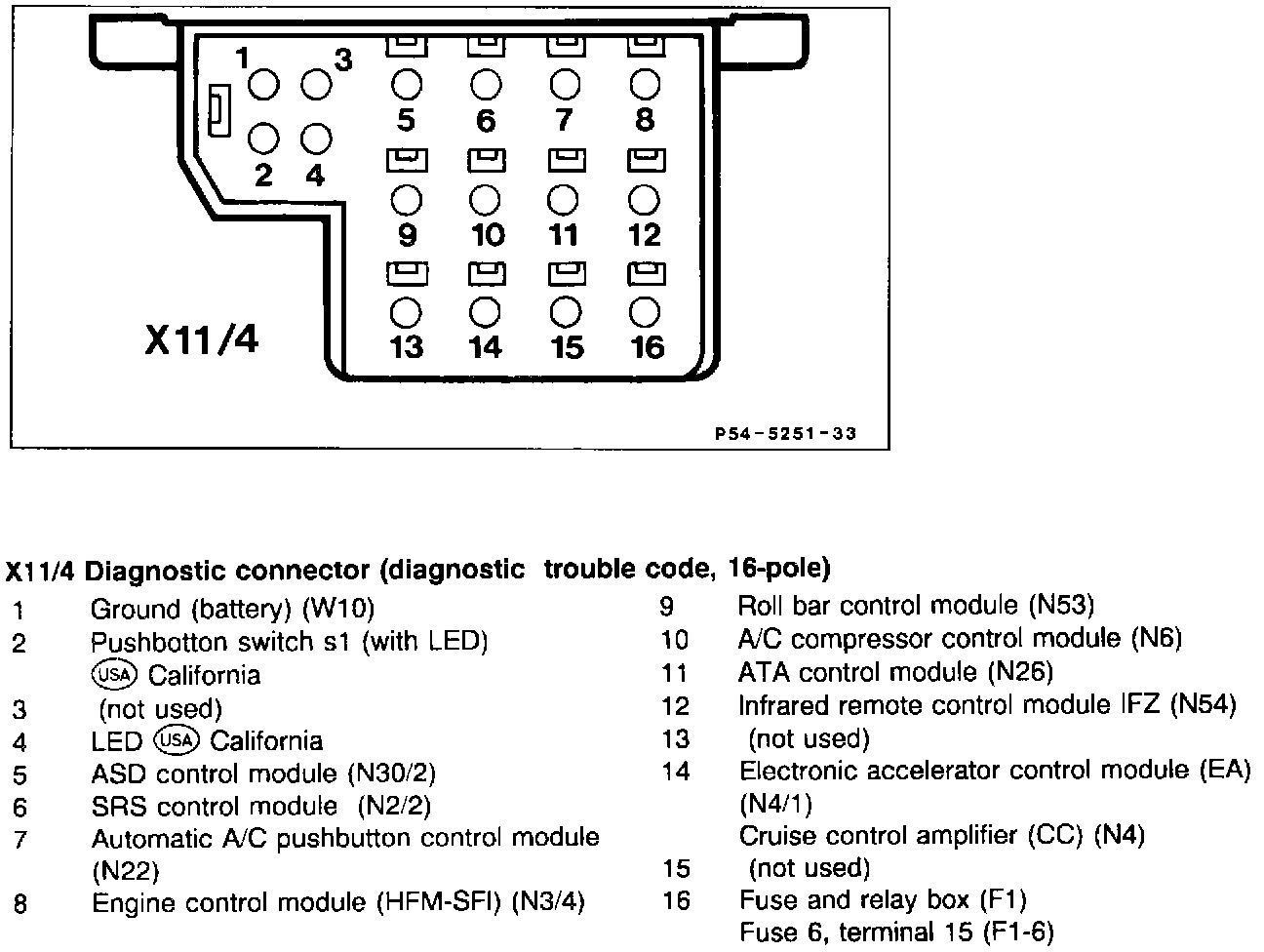

X11/4 - 16 Pole

Diagnostic Connector:

X11/4 Data link connector (diagnostic trouble code, 16-pole)

1 - Ground (battery) (W10)
2 - Push-button switch s1 (with LED) (USA) California
3 - (not used)
4 - LED (USA) California
5 - ASD control module (N30/2)
6 - SRS control module (N2/2)
7 - Automatic A/C push-button control module (N22)
8 - Engine control module (HFM-SFI) (N3/4)
9 - Roll bar control module (N53)
10 - A/C compressor control module (N6)
11 - ATA control module (N26)
12 - Infrared remote control module IFZ (N54)
13 - (not used)
14 - Electronic accelerator control module (EA) (N4/1)
- Cruise control amplifier (CC) (N4)
15 - (not used)
16 - Fuse and relay box (F1)
- Fuse 6, terminal 15 (F1-6)
