Fluid Pump: Service and Repair

NOTE: On vehicles produced prior to 6/96 a secondary pump is used, after 6/96 a cover is placed where the pump was located.

Removal and Installation

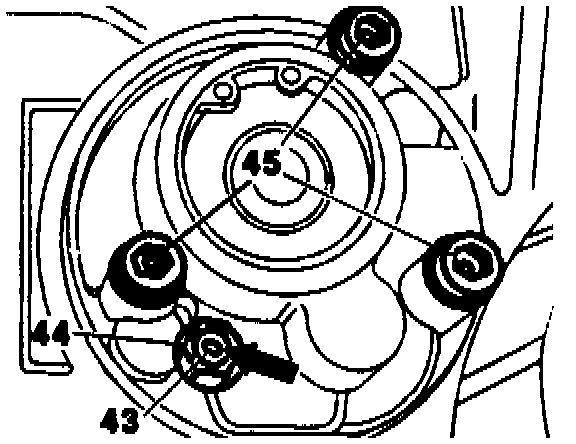

1 Unscrew nut tor axial retainer (44).
2 Unscrew hexagon socket bolts (45) and remove cover.

Installation Note
The slot (arrow) in the axial retainer (43) must be horizontal.





1 Transmission housing
13 Lower cover
14 large intermediate plele
19 Gasket
49 Check valve (not used any more on vehicles as of approx. 6/91)
66 Valve, secondary pump (not used any more on vehicles as of approx. 6/91)
67 Check valve (not used any more on vehicles as of approx. 6/91)

The bores in the transmission housing for the secondary pump are sealed off by means of a cover (17) and gasket (18).





17 Cover
18 Gasket
43 Axial Retainer
44 Nut for axle Retainer
48 Cover
47 Snap ring
50 Centrifugal governor
