Component Locations

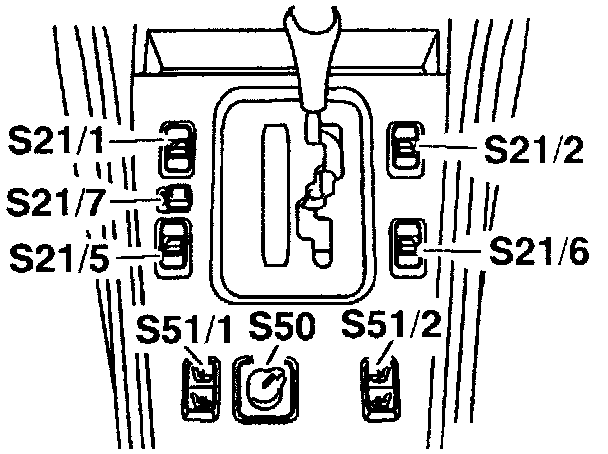

S21/1 Left front power window switch
S21/2 Right front power window Switch
S21/5 Left rear power window switch
S21/6 Right rear power window Switch
S21/7 Rear power window safety switch

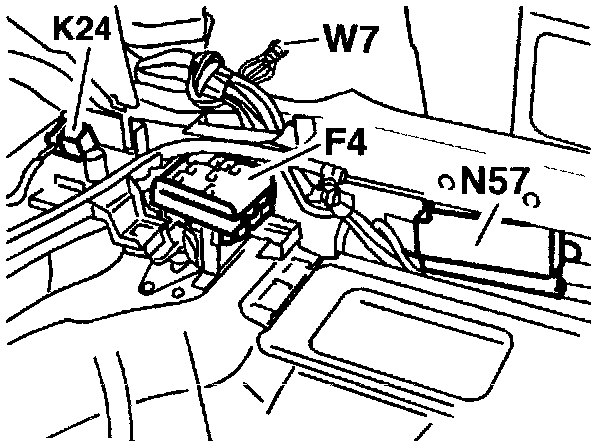

F4 Rear fuse box (19-fuse, in trunk)
K24 Convenience relay module
N57 Convenience control module (power windows sliding/pop-up roof)

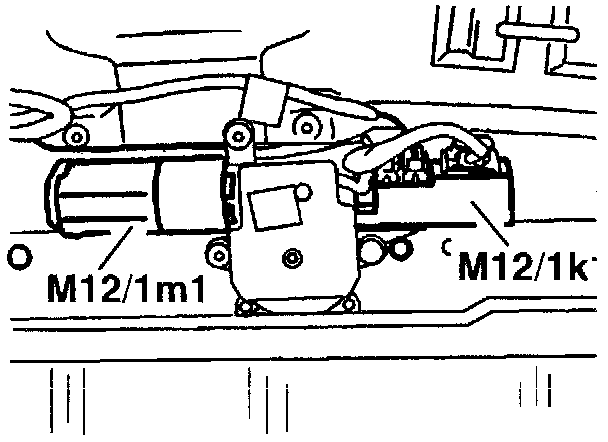

Behind Overhead Console:
M12/1 Sliding/pop-up roof
M12/1k1 Sliding/pop.up roof relay
M12/1m1 Sliding/pop-up roof motor
