Work Instruction
Group: 82Number: 328
Date: February 1995
SUBJECT:
MODEL 202, M.Y. 1995
INSTALLATION OF CD CHANGER
1. Remove hardware from shipping box and verify contents.

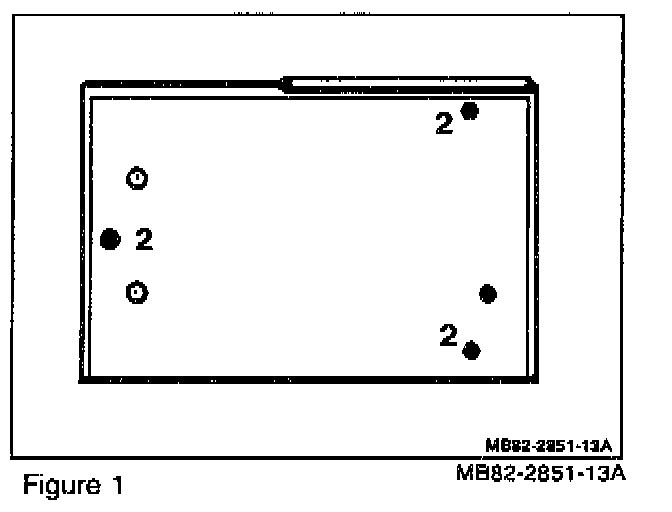

2. Remove shipping screws (2, Figure 1) from CD changer. Place shipping screws in ID card bag. Cover screws holes with dust covers.
3. Remove trunk floor mat.
4. Locate factory bus cable in right wheel well.

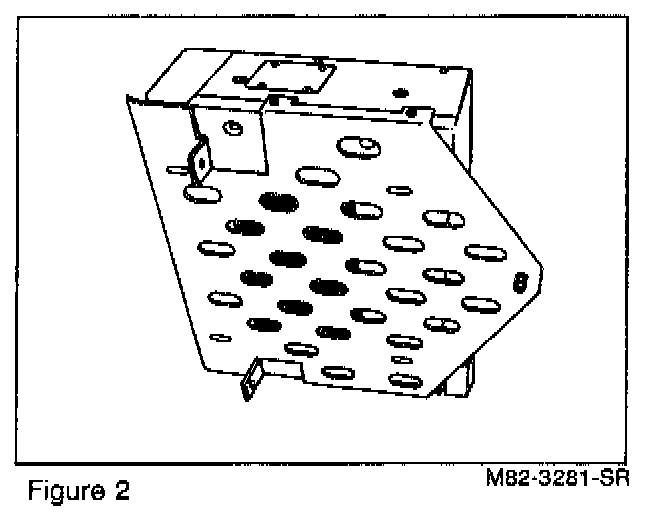

5. Attach CD changer to CD mounting bracket using four screws. Ensure that the red WARNING label faces in towards the bracket.
6. Connect bus cable to CD changer.

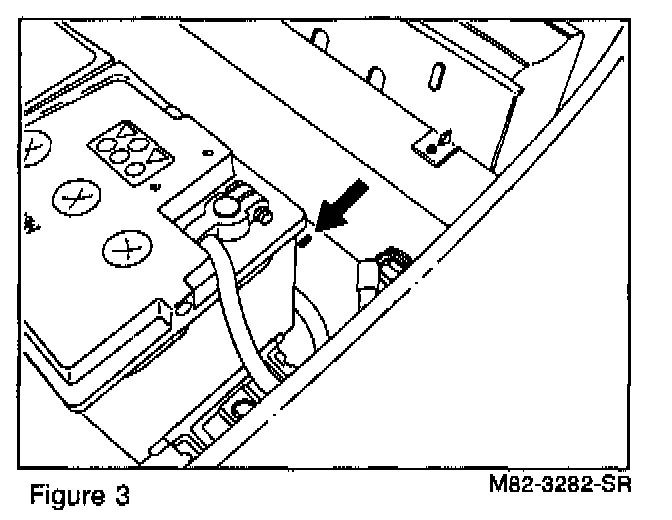

7. Position CD changer unit into right wheel well so that the stud on the bottom of the mounting bracket fits into the predrilled mounting point located on side member behind battery (arrow, Figure 3).

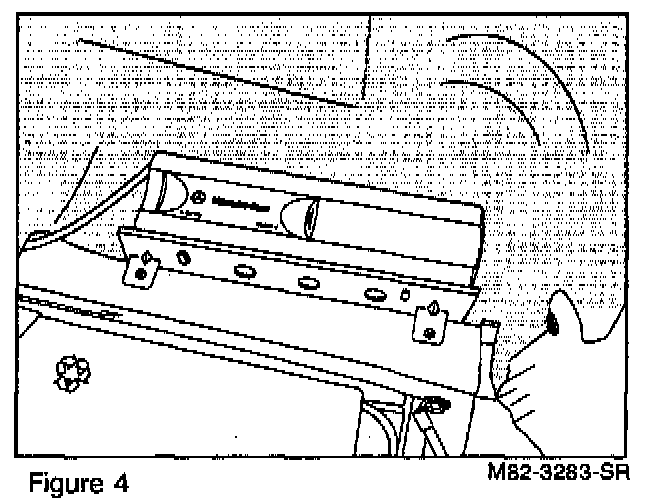

8. Continue to position the CD changer unit so that the tabs on mounting bracket align over predrilled factory mounting locations.
9. Secure top mounts with screws. Secure bottom mount (stud) with 6 mm nut using a 1/4" drive.
10. Install CD changer cover.
11. Install CD magazine in to CD changer unit.
12. Reinstall trunk floor mat.
13. Test function.

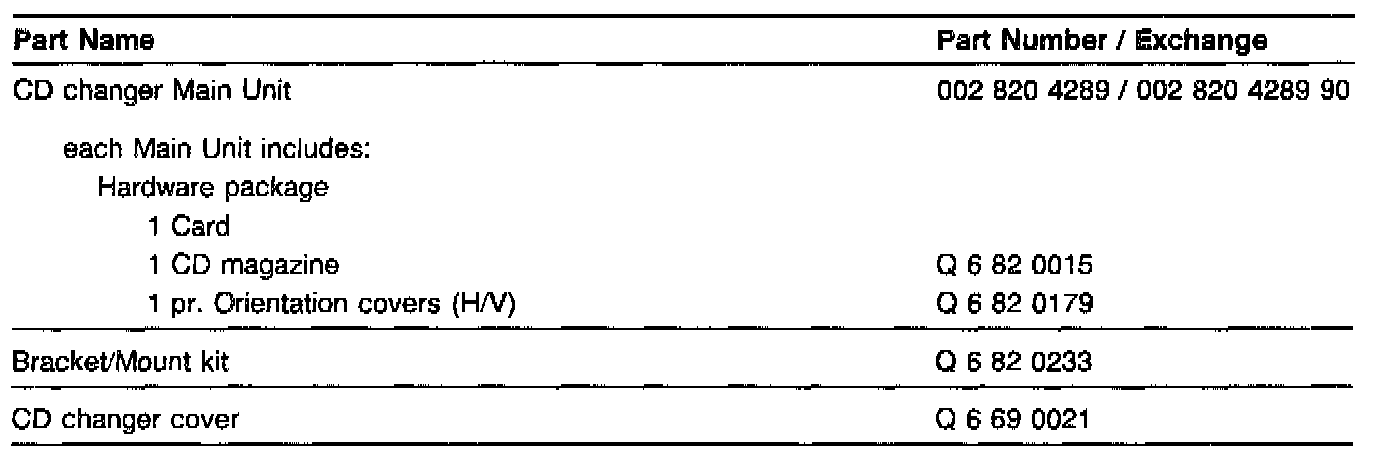

Parts Information

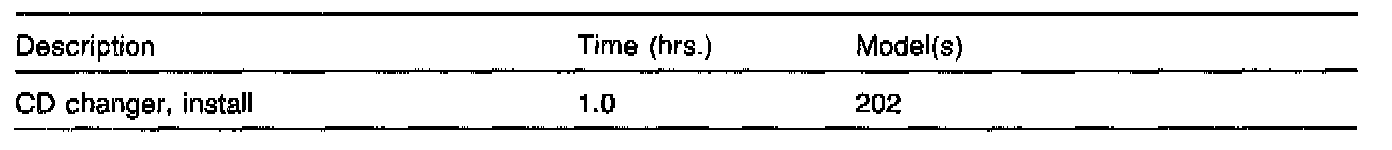

Recommended Labor Time
Note:
In case of warranty, do not submit claims for main unit (part no. 002 820 4289) or bracket/mount kit (part no. Q 6 82 0233). These claims will be rejected. Always replace only the individual defective component. In addition, use only the exchange part number for submitting warranty claims.
