Seat Belt Buckle: Service and Repair
AR91.40-P-1515E Remove/Install Belt Buckle (Front Seat)

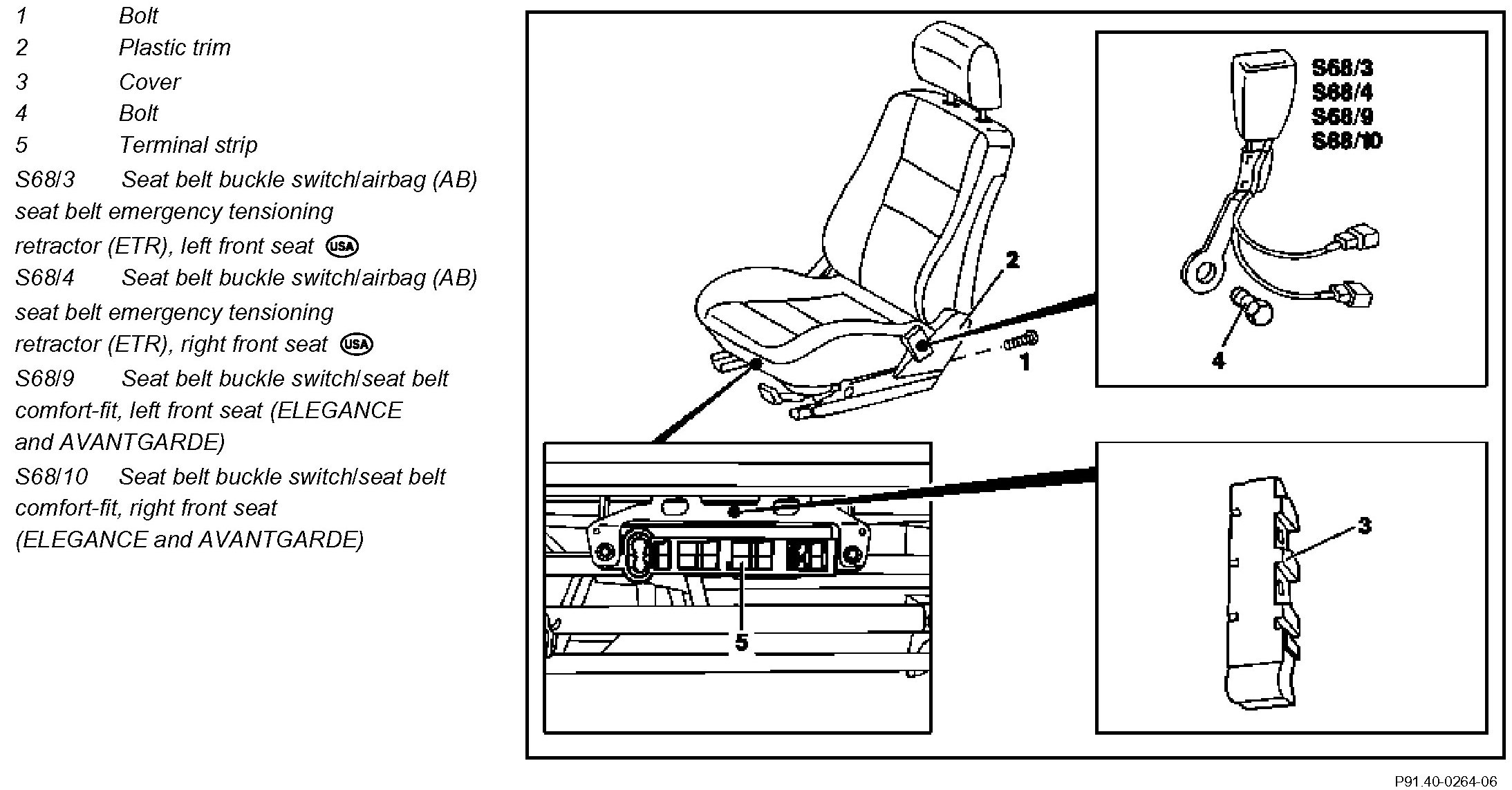

Component Identification:

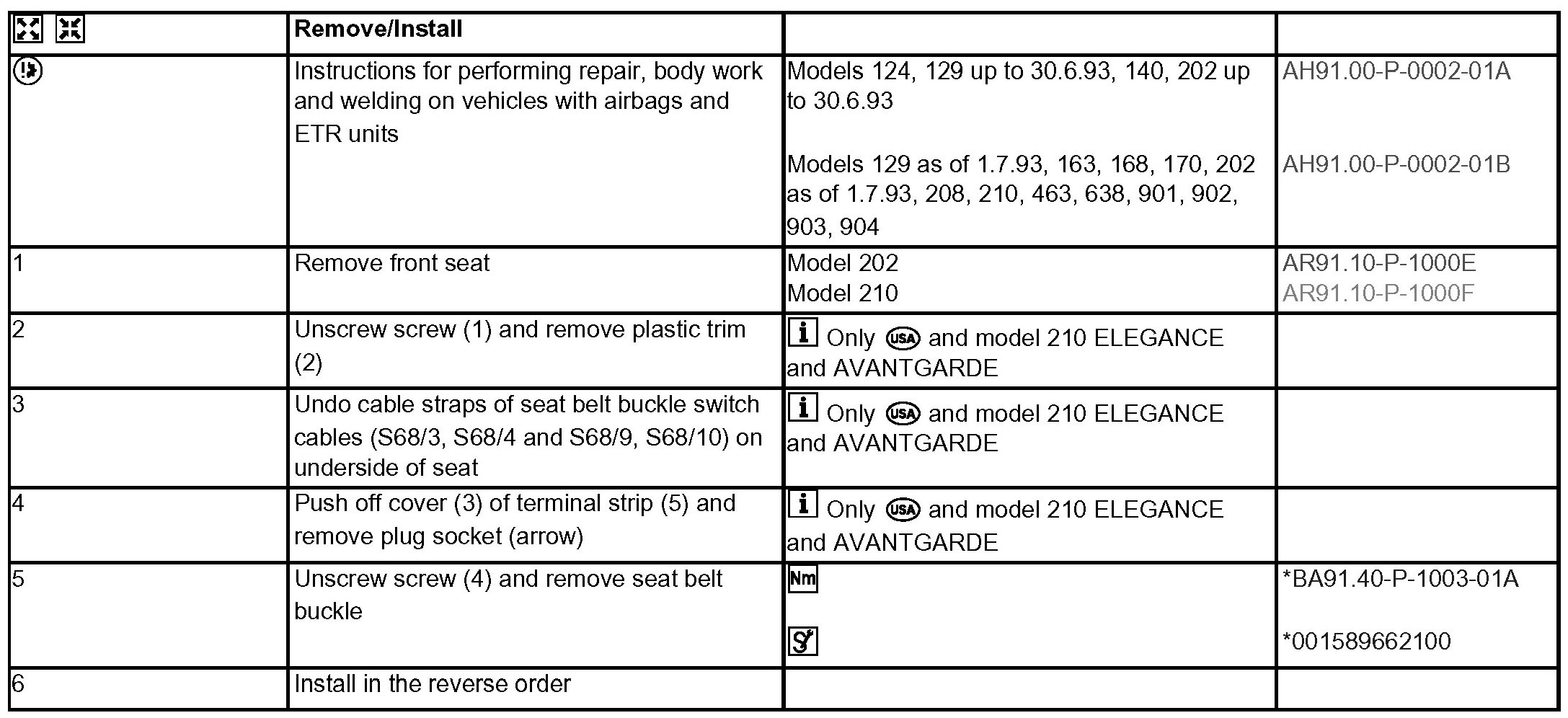

Steps 1 - 6:

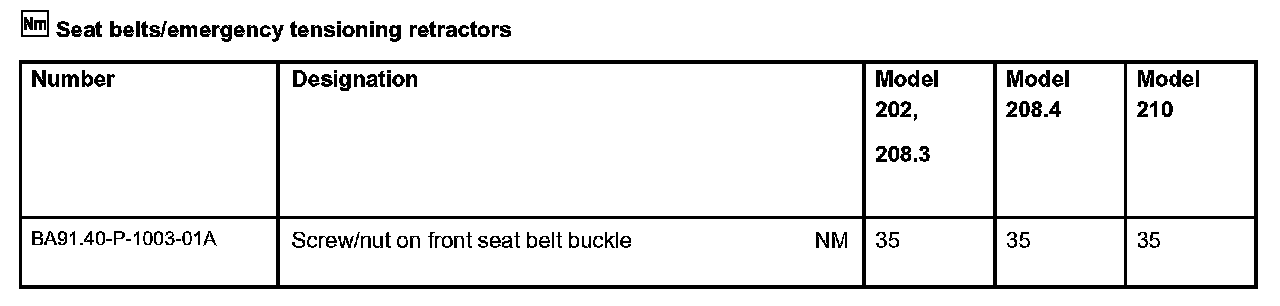

Seat Belts/Emergency Tensioning Retractors:

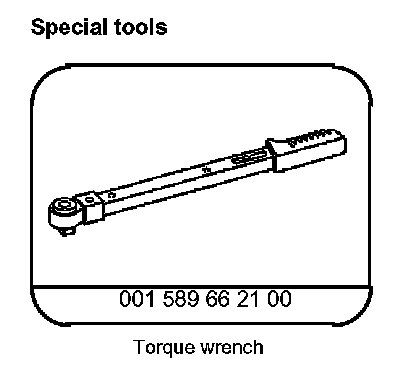

Special Tools:
