Ignition Coil: Locations

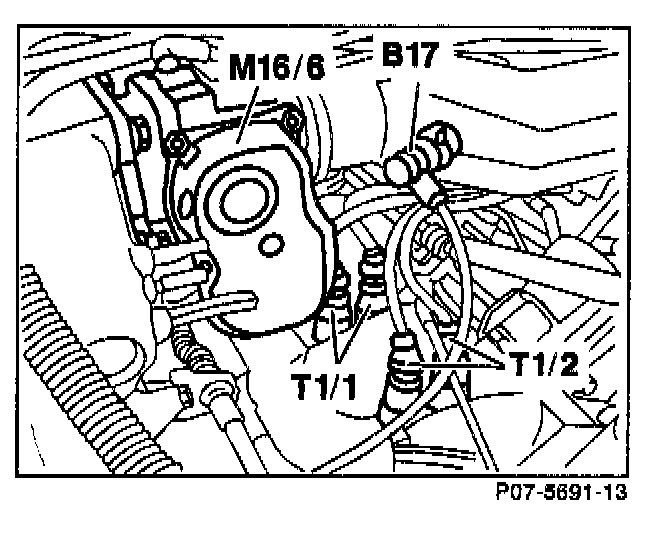

The ignition coils are located between the intake manifolds.
Ignition coil
Cylinders
T1/1
1 and 4
T1/2
2and3
