Electrical Diagrams

CAN Bus - Engine PE00.19-U-2200WA

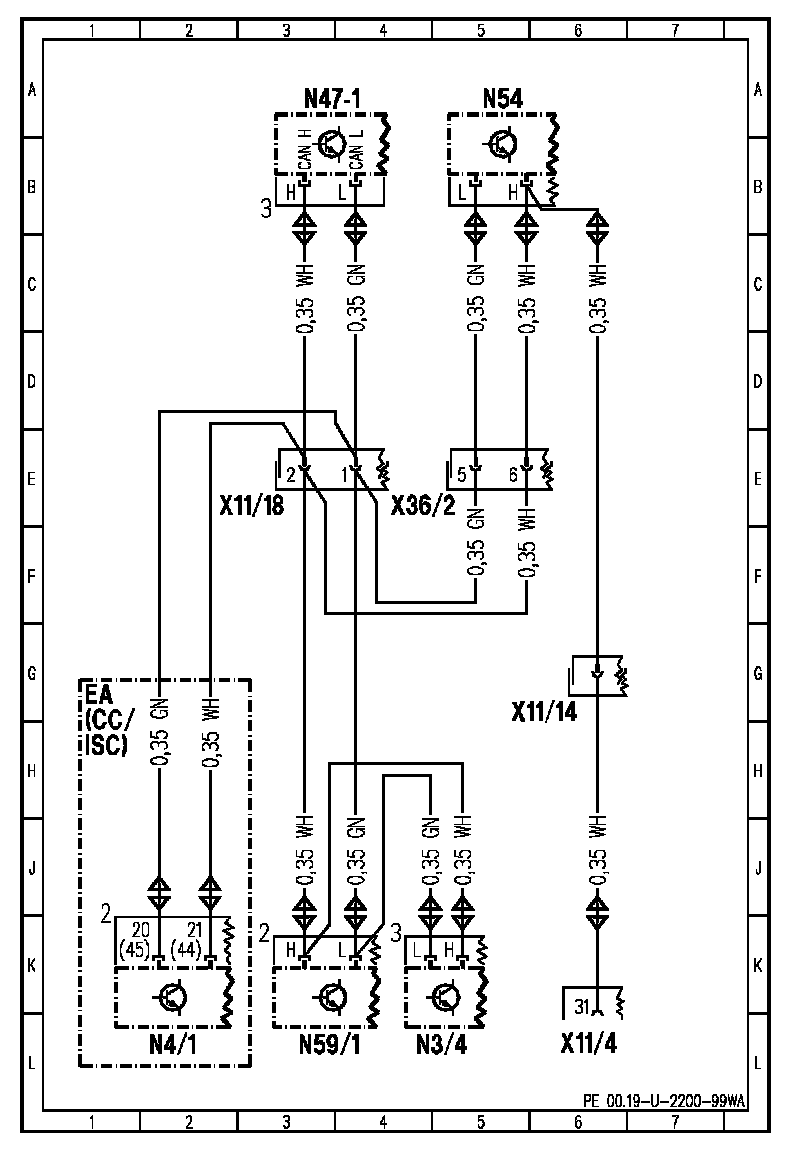

Wiring Diagram:

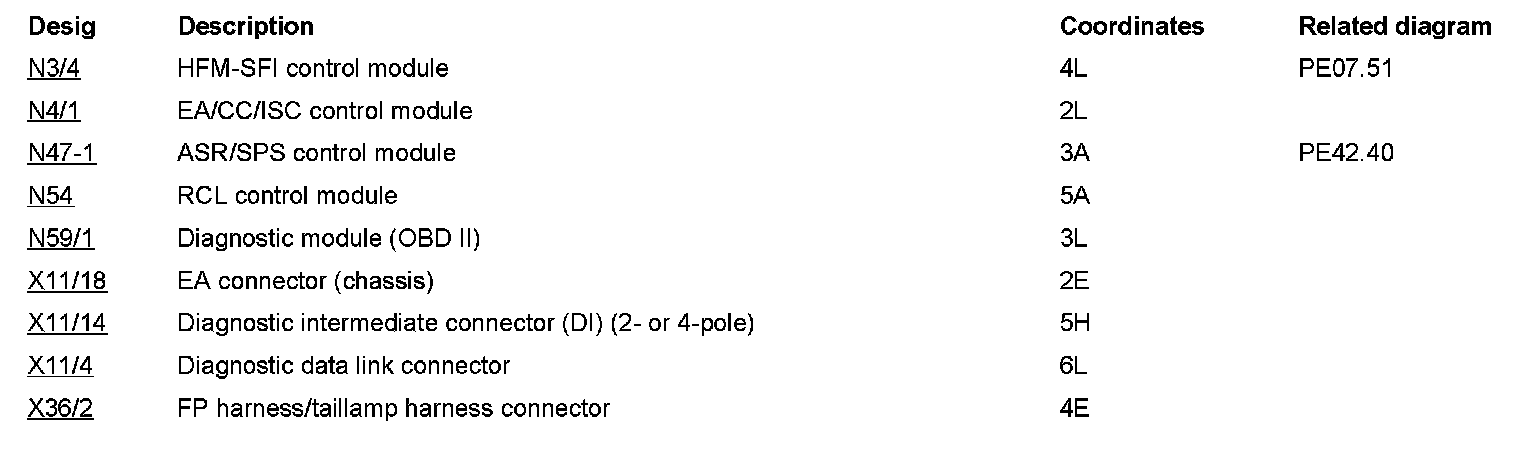

Component Description/Coordinates, N3/4 To X36/2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
