Refrigeration System - Component Locations [41]




Air Conditioning (A/C)

Models 202 (up to MY 1995)

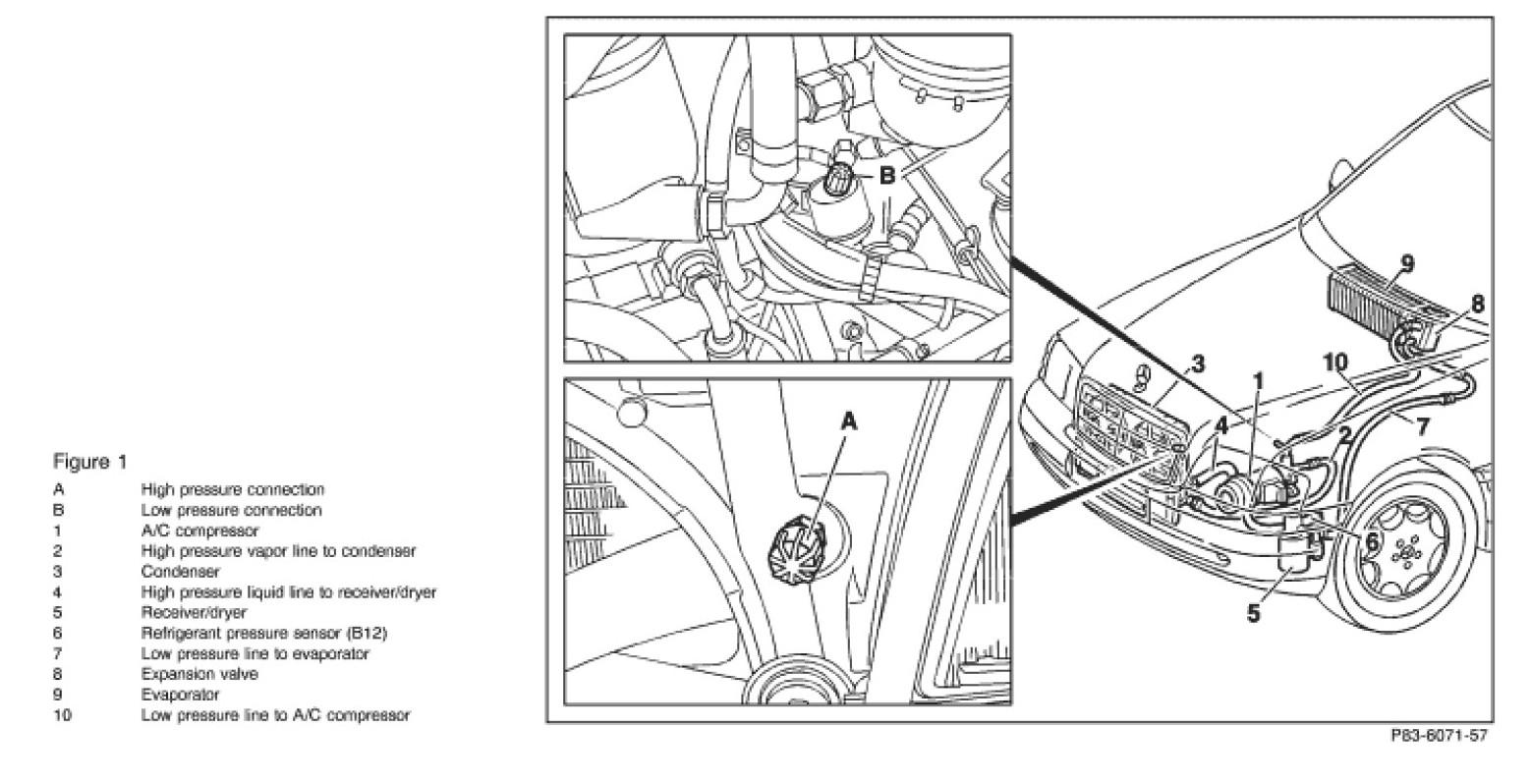

Refrigeration System Test Program - Component Locations
