Intake Manifold: Service and Repair

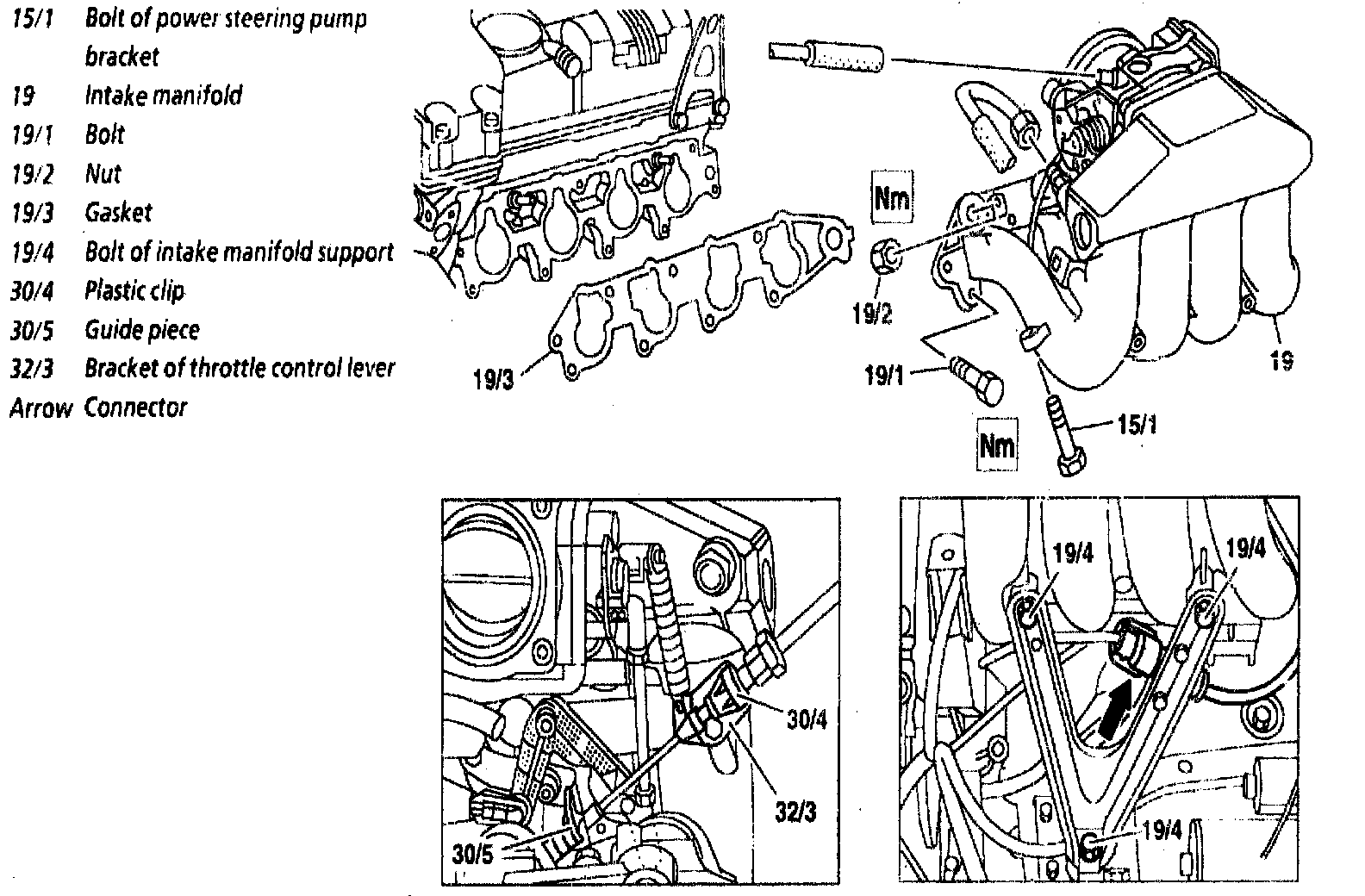

Component Identification

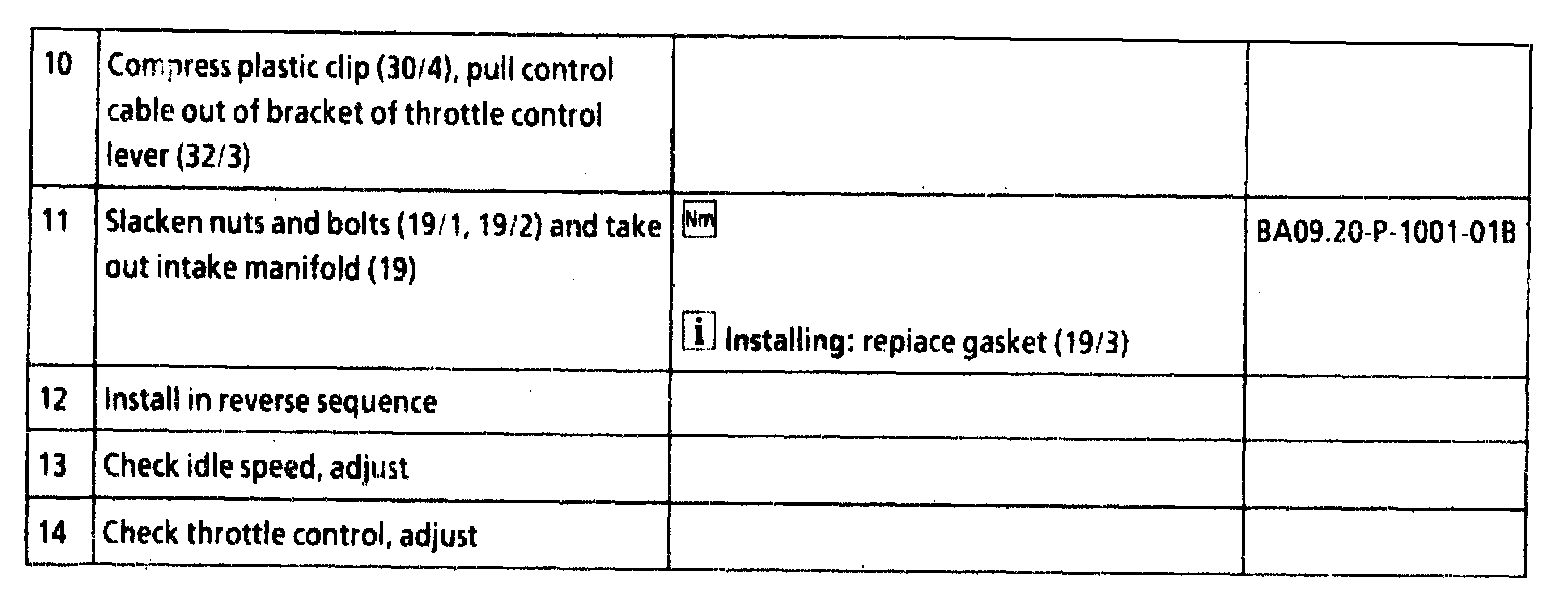

Removing, installing, Part 1 of 2
Removing, installing, Part 2 of 2

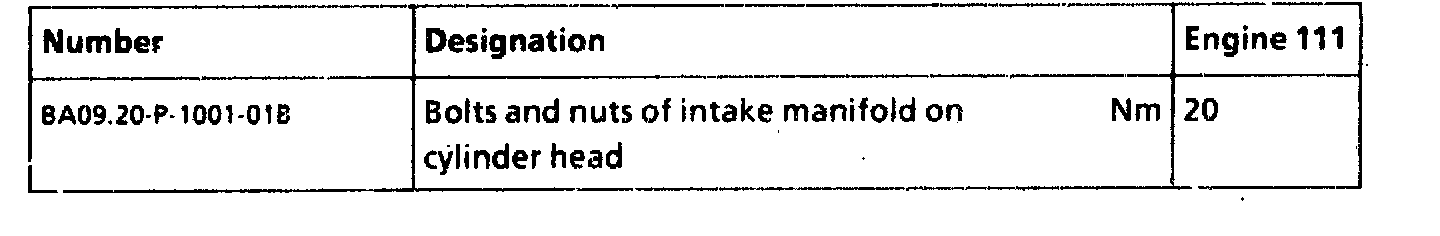

References (BA), Intake manifold
Connecting diagram of vacuum supply HFM-SFI injection with TWC bis 07/96
Component Identification
Removing, installing, Part 1 of 2
Removing, installing, Part 2 of 2
References (BA), Intake manifold
Connecting diagram of vacuum supply HFM-SFI injection with TWC bis 07/96
