ETP - Connector Layout [23]
>>
Traction Systems and Speed-Sensitive Power Steering
Traction Systems and Speed-Sensitive Power Steering

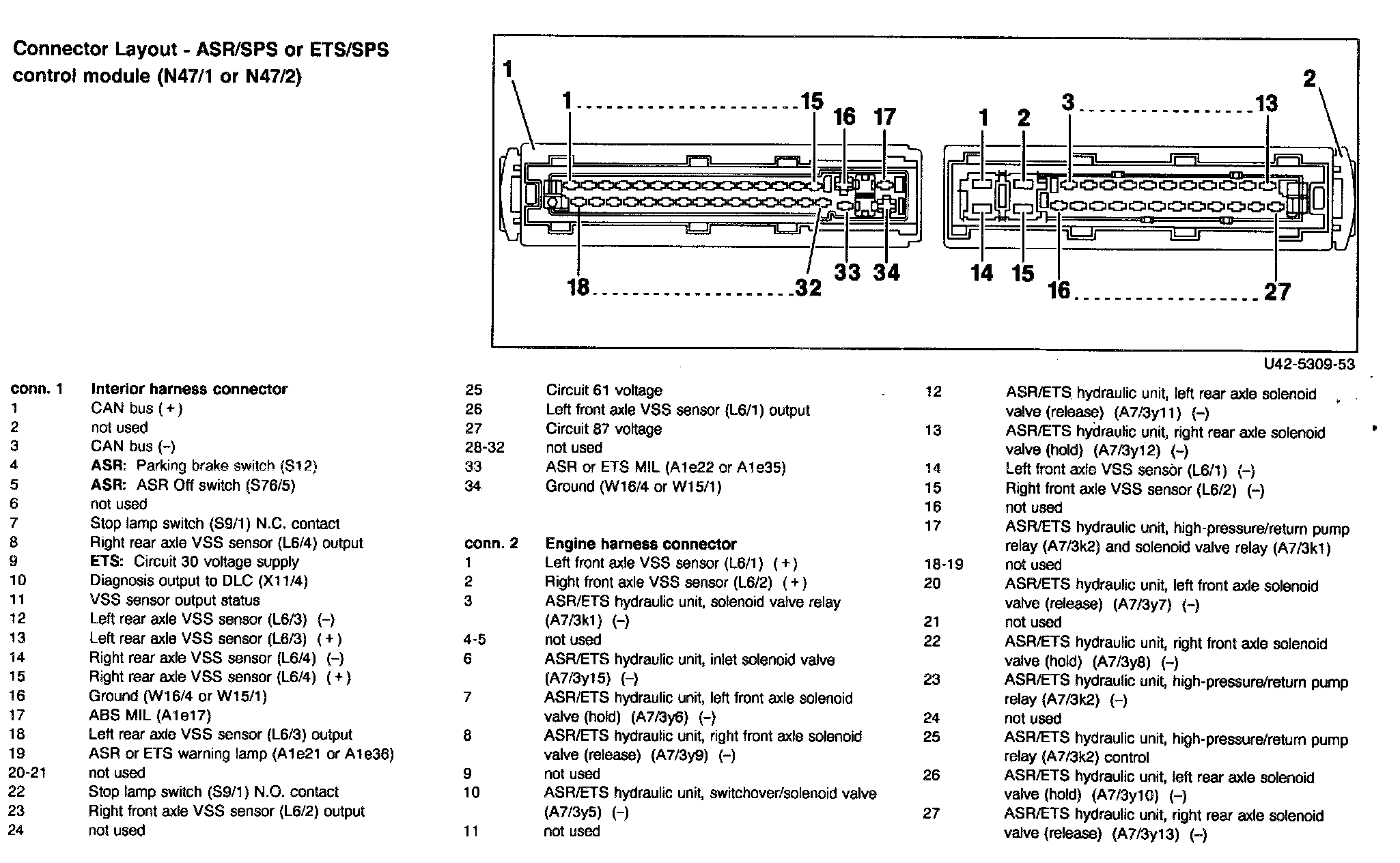

��$Connector Layout - ASR/SPS Or ETS/SPS Control Module (N47/1orN47/2):
