Electronic Throttle Actuator
>>
Locations
Electronic Throttle Actuator: Locations

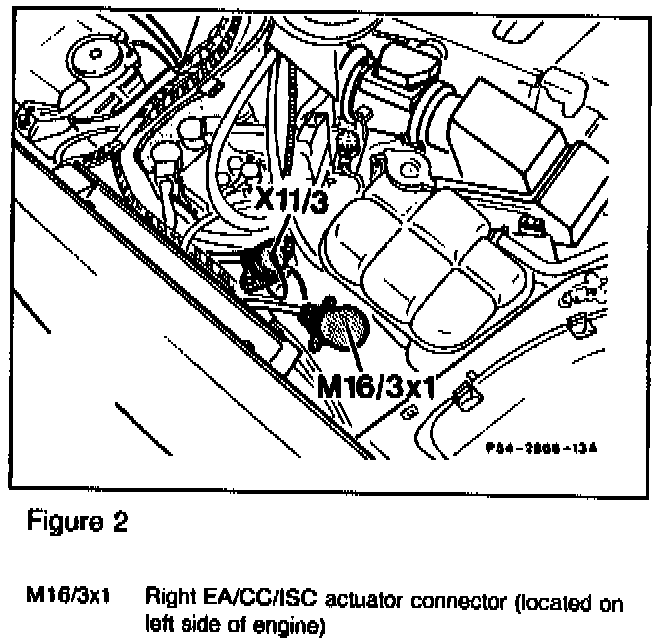

Figure 2:

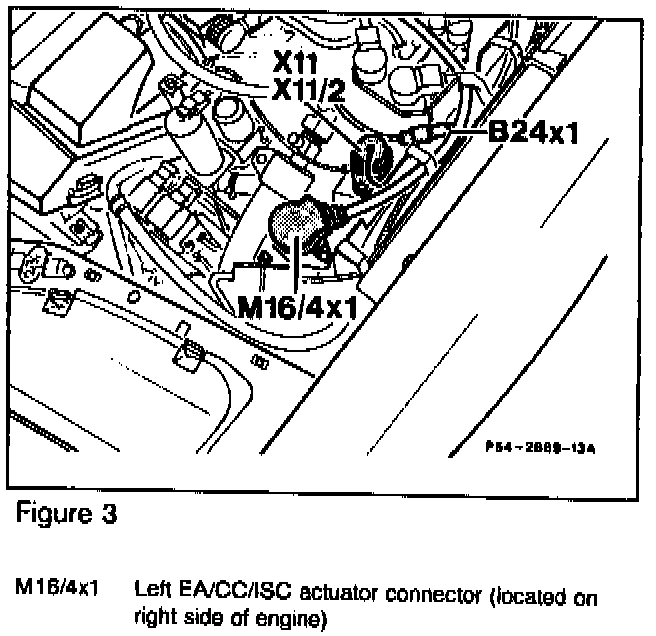

Figure 3:
