Removal and Replacement

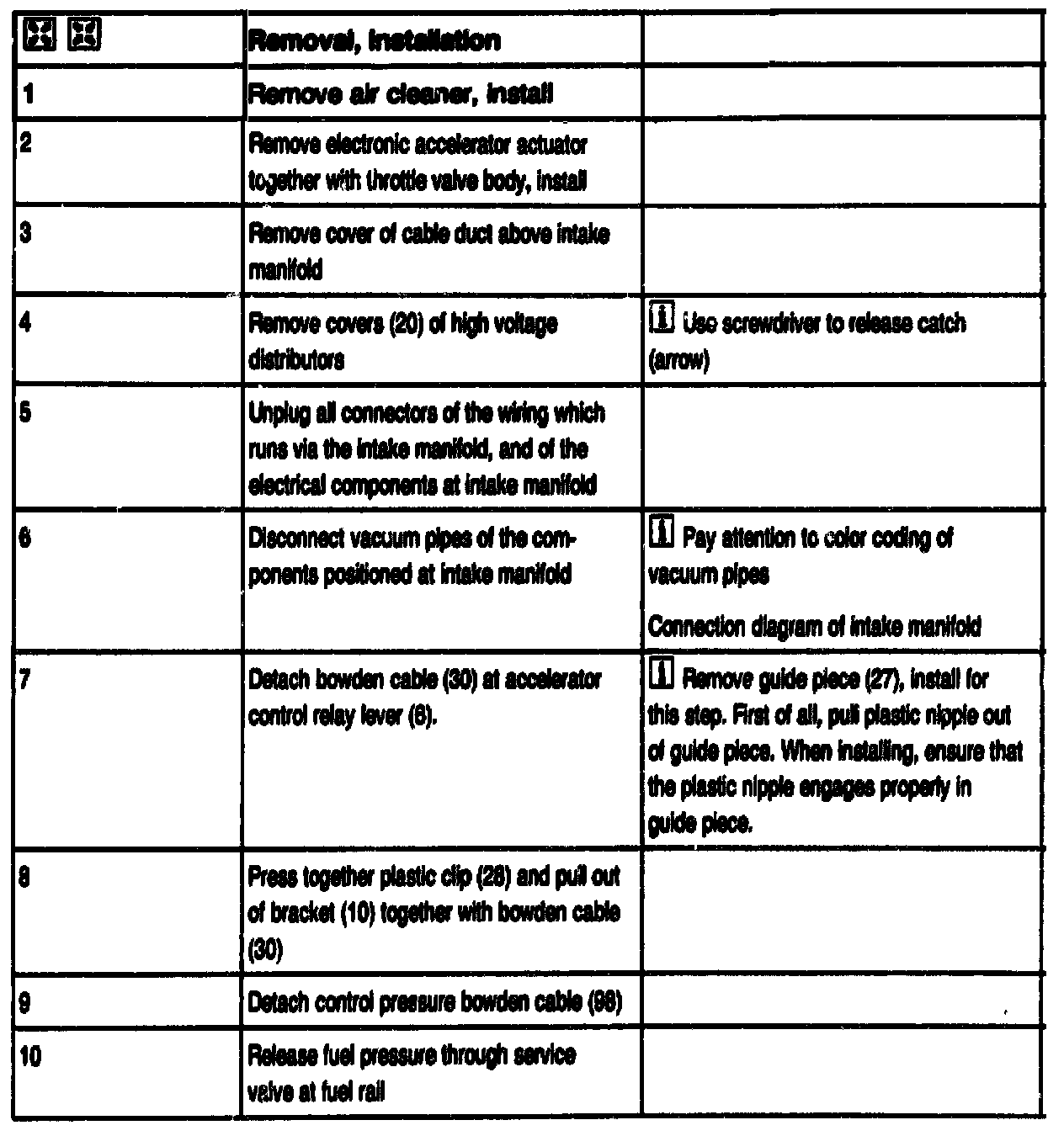

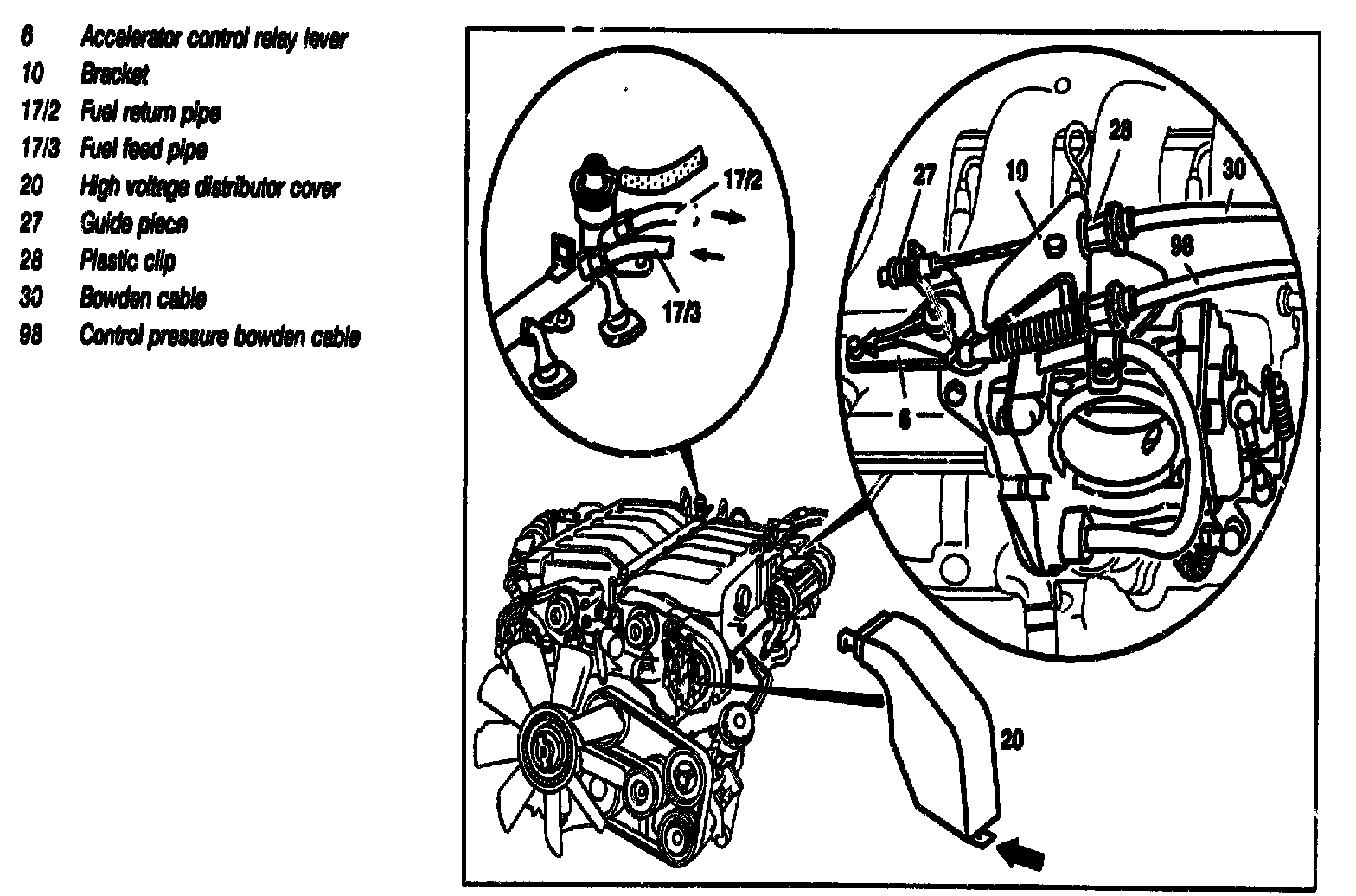

Removal, installation, Part 1 of 3

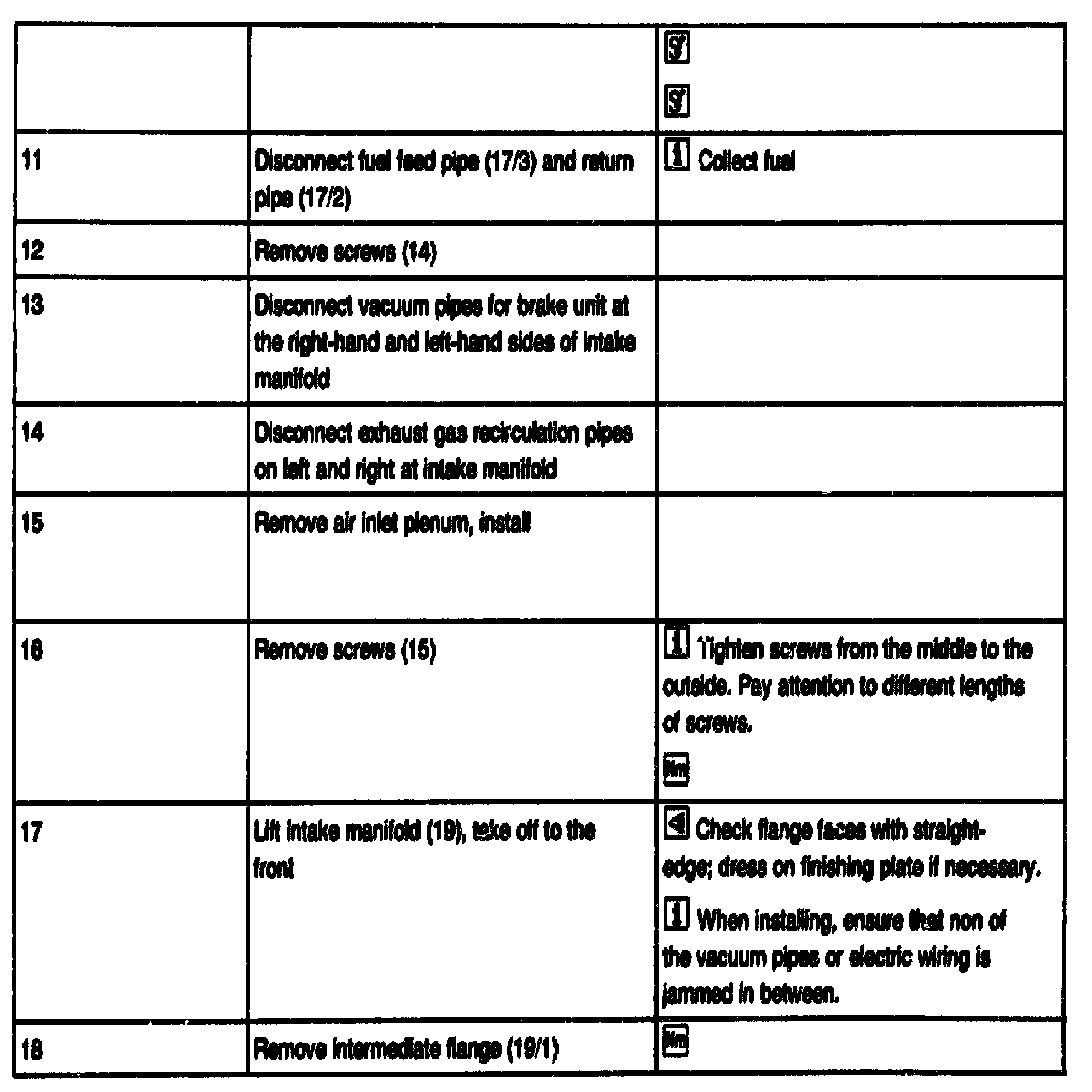

Removal, installation, Part 2 of 3

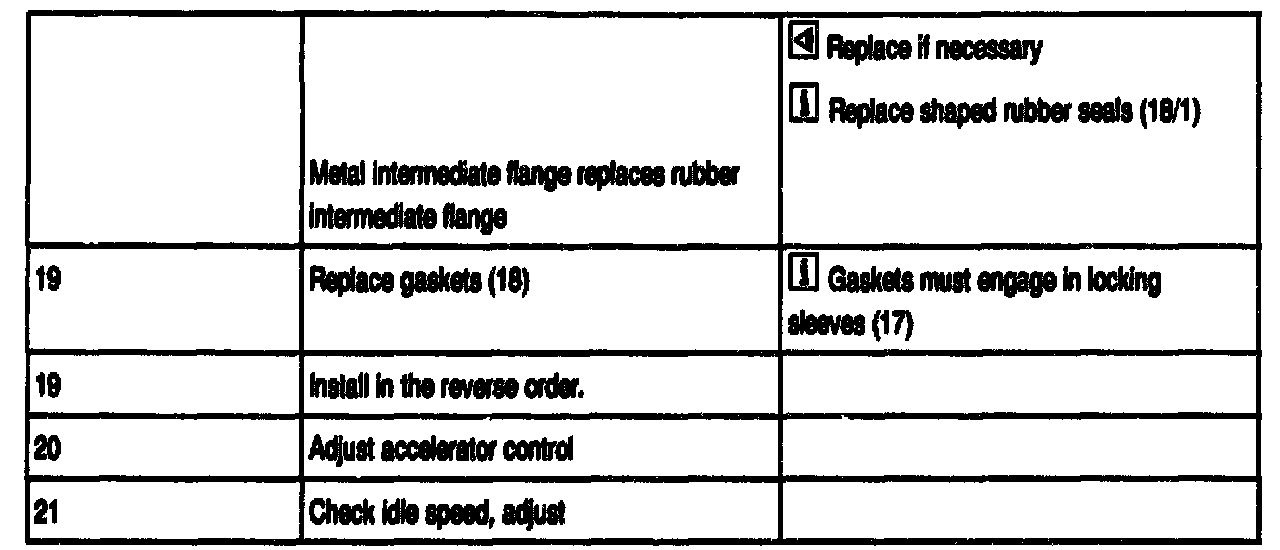

Removal, installation, Part 3 of 3

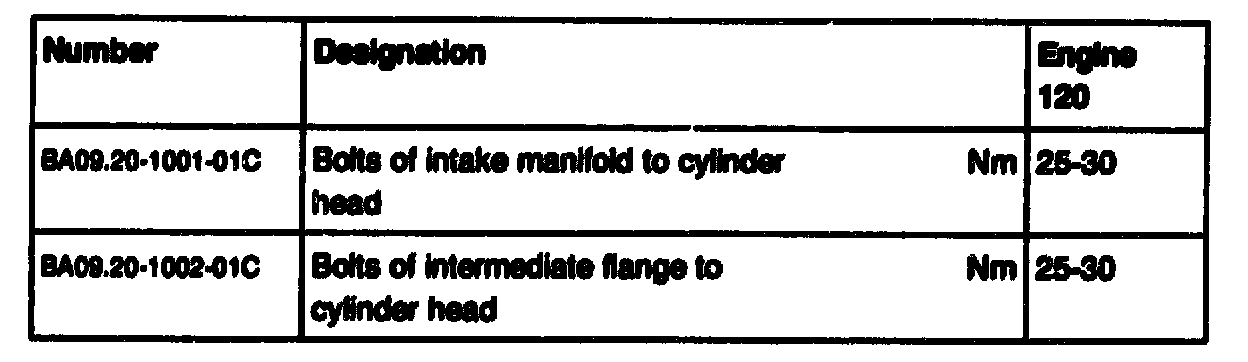

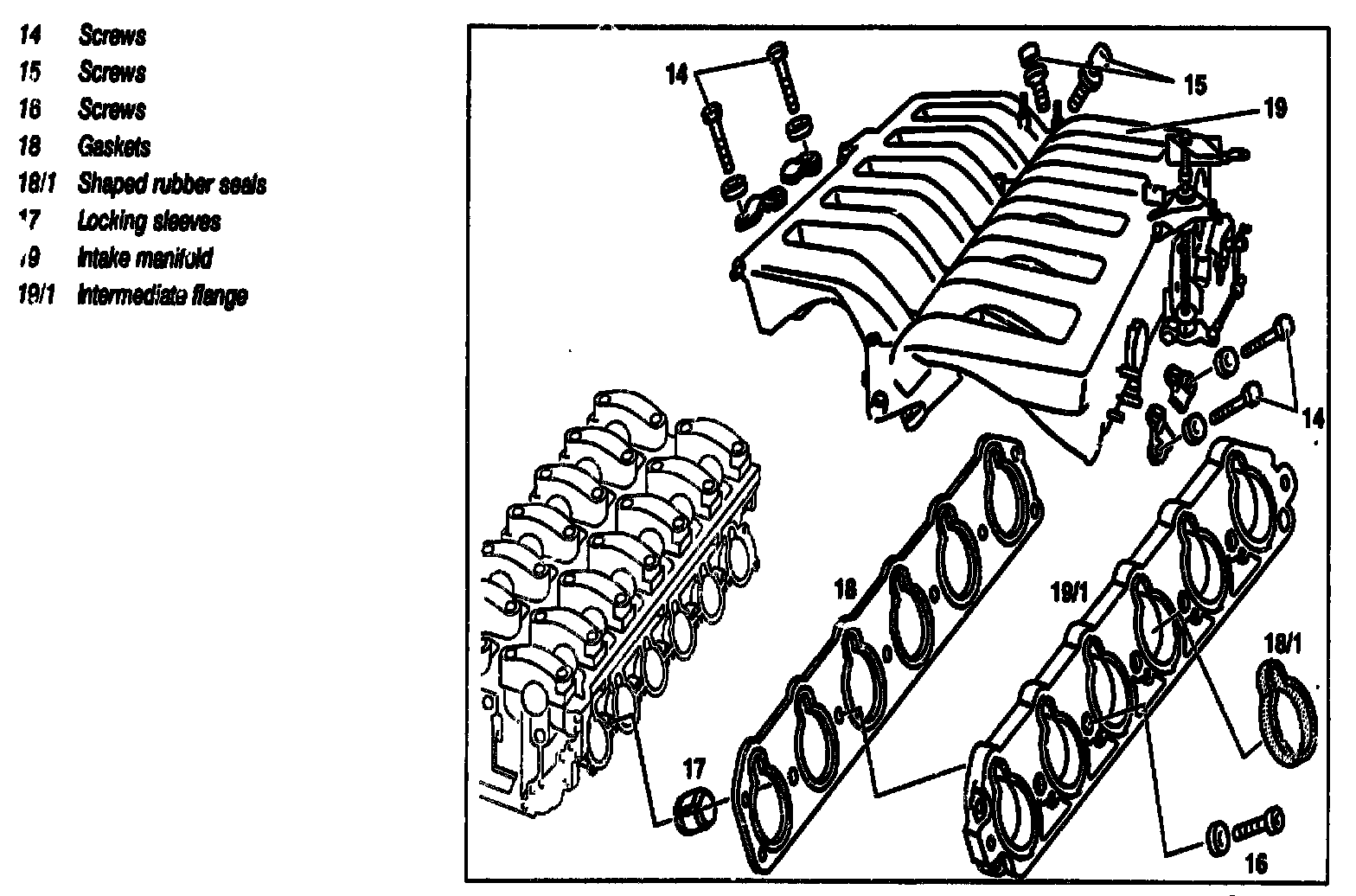

References (BA), Intake manifold






References, Special tools
