Mercedes Benz
>>
1994
>>
SL 600 (129.076) V12-6.0L (120.981)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
Information Bus

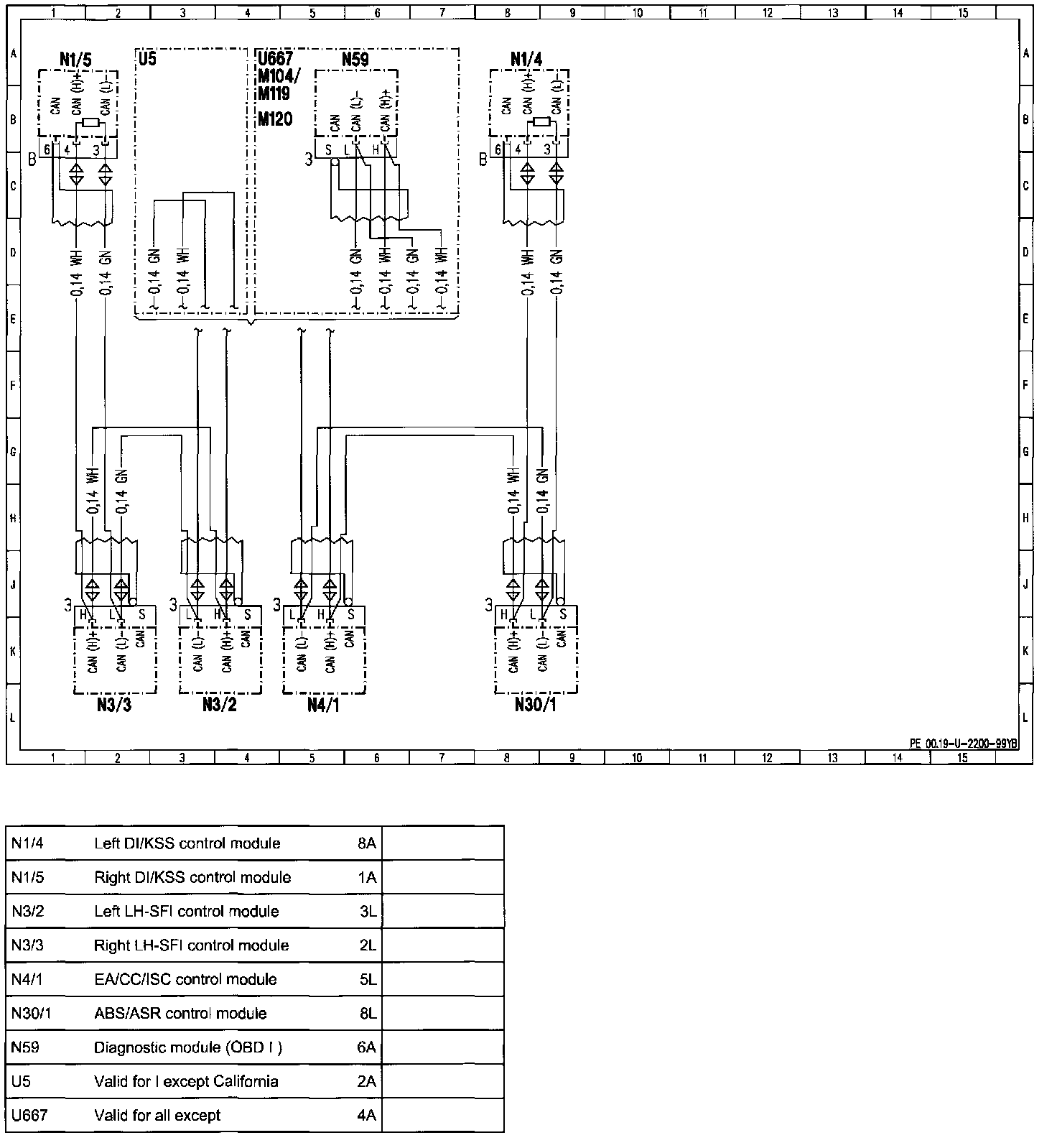

Wiring Diagram
PE00.19-U-2200YB:

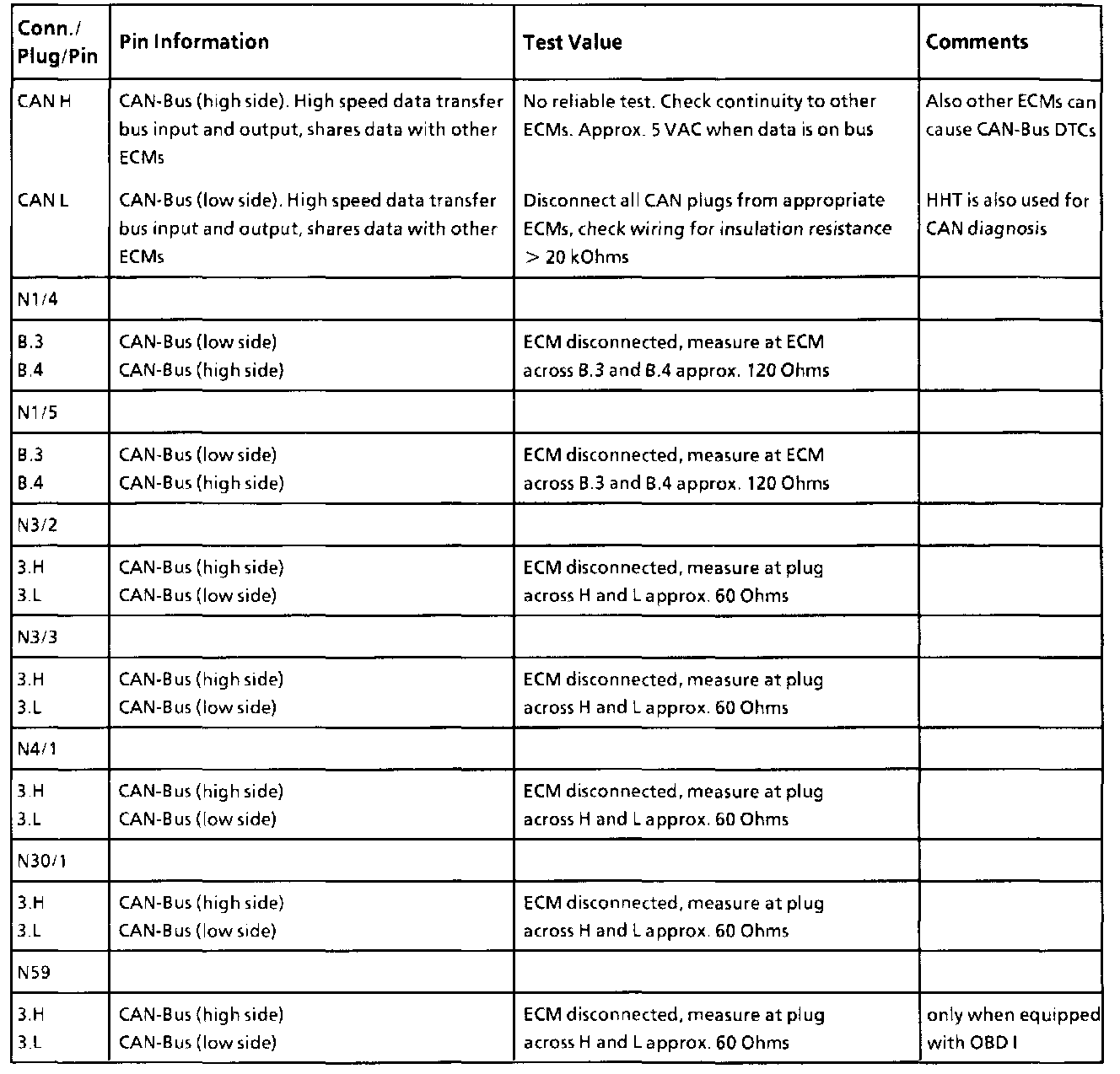

Connector Assignment:
Pin Information:
All values measured to ground unless otherwise noted.
