Alternator Pulley / Clutch: Service and Repair

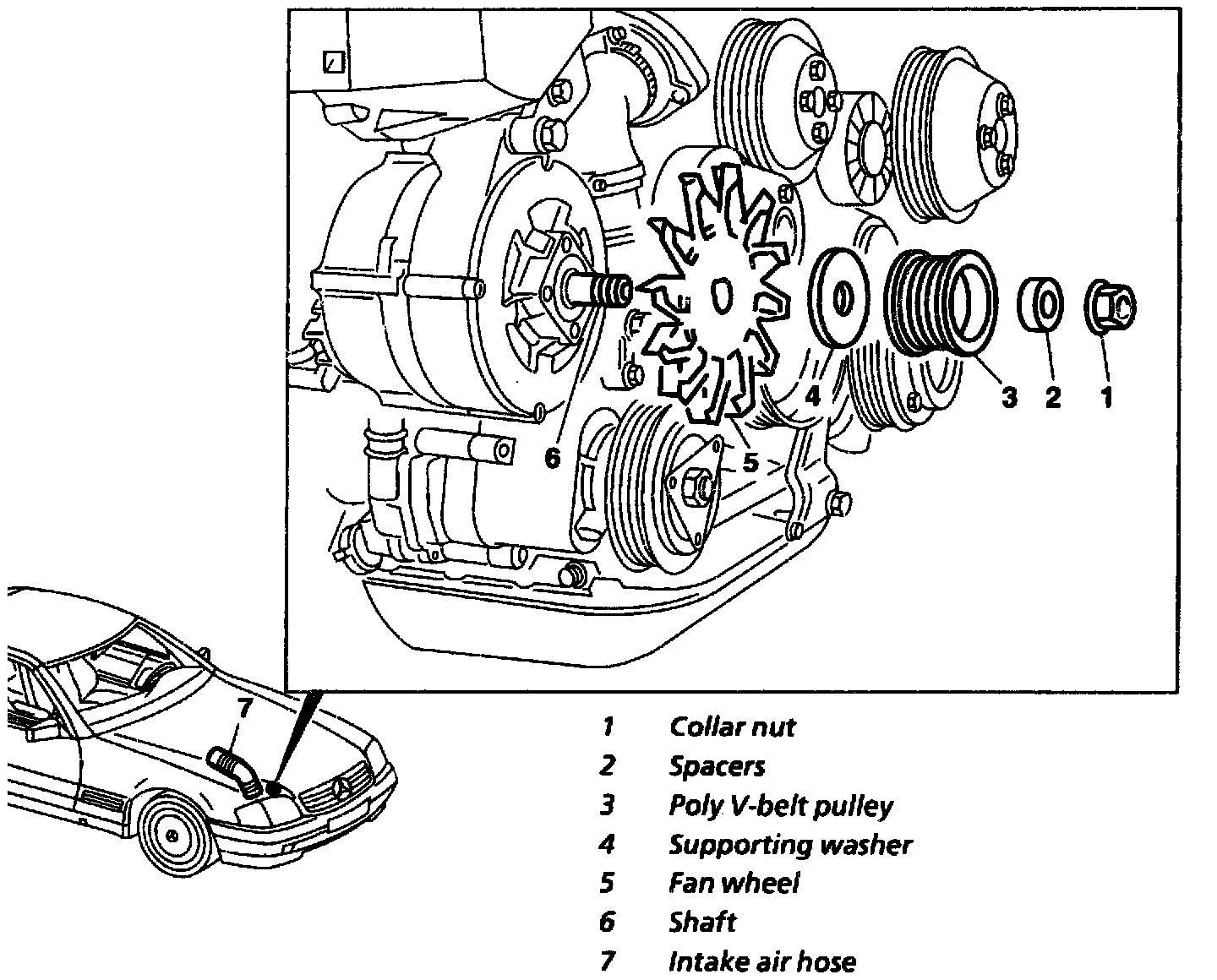

Bowl-Type Generator:

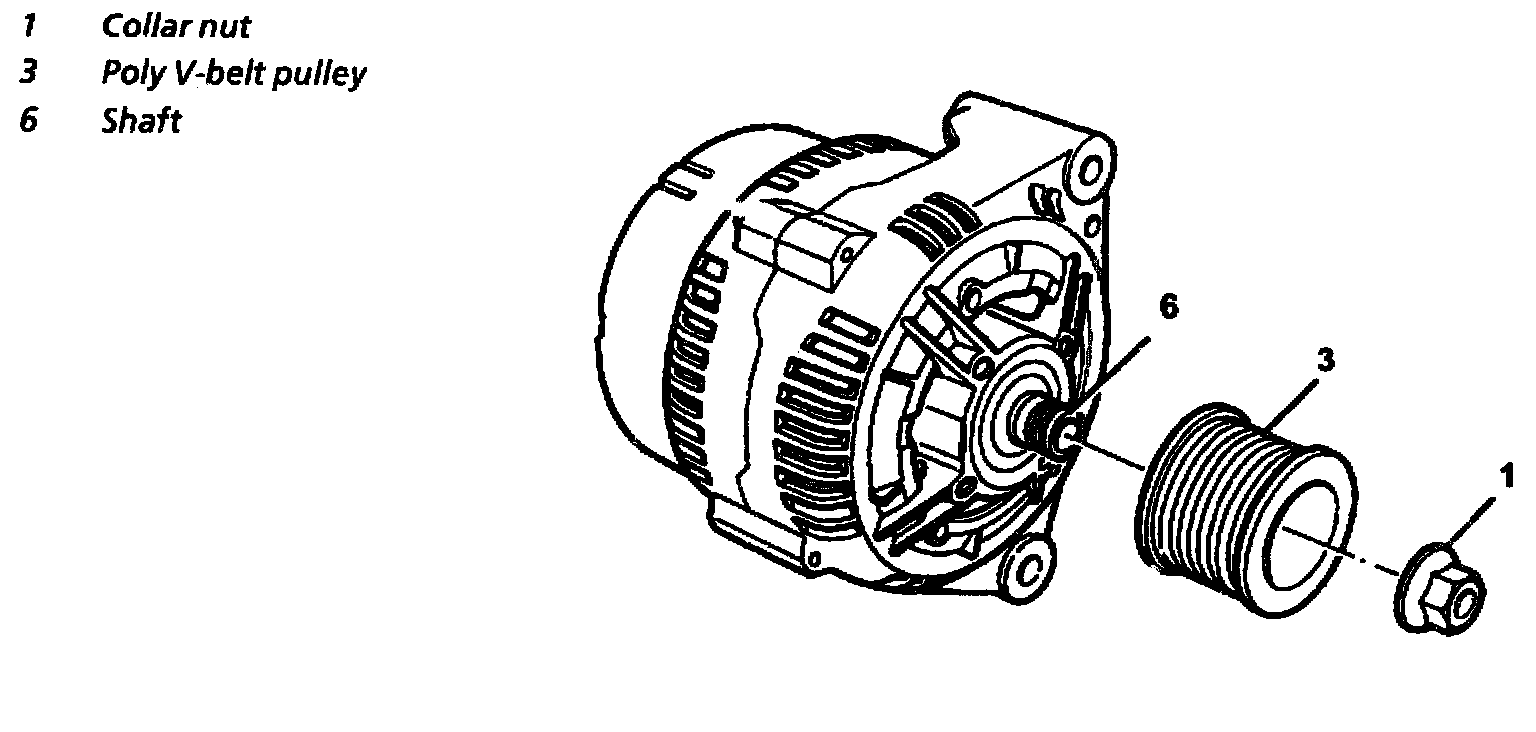

Compact Generator:





Component Identification

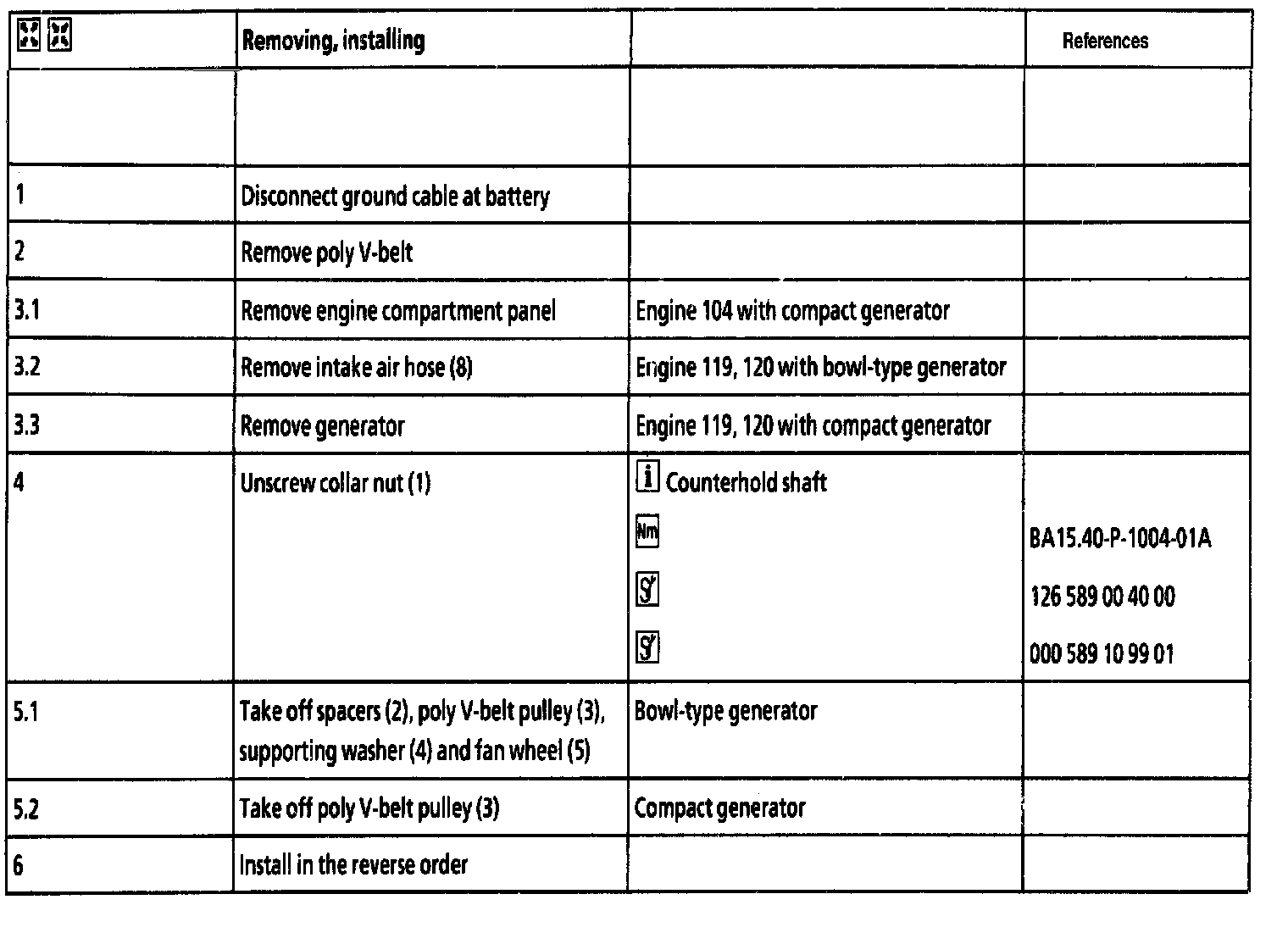

Removing, installing


Engine 104:





Engine 119, 120:

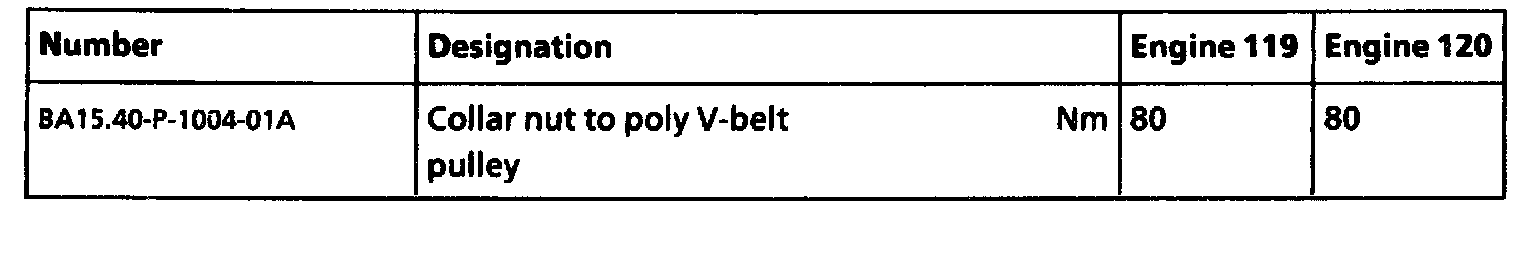

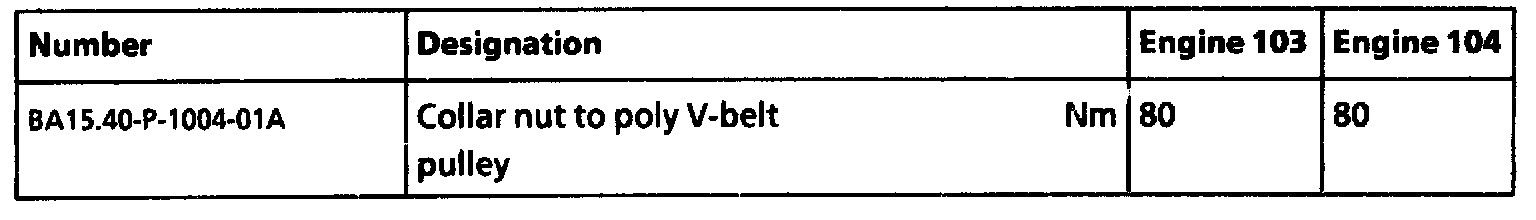

References (BA), Generator, Part 2 of 2

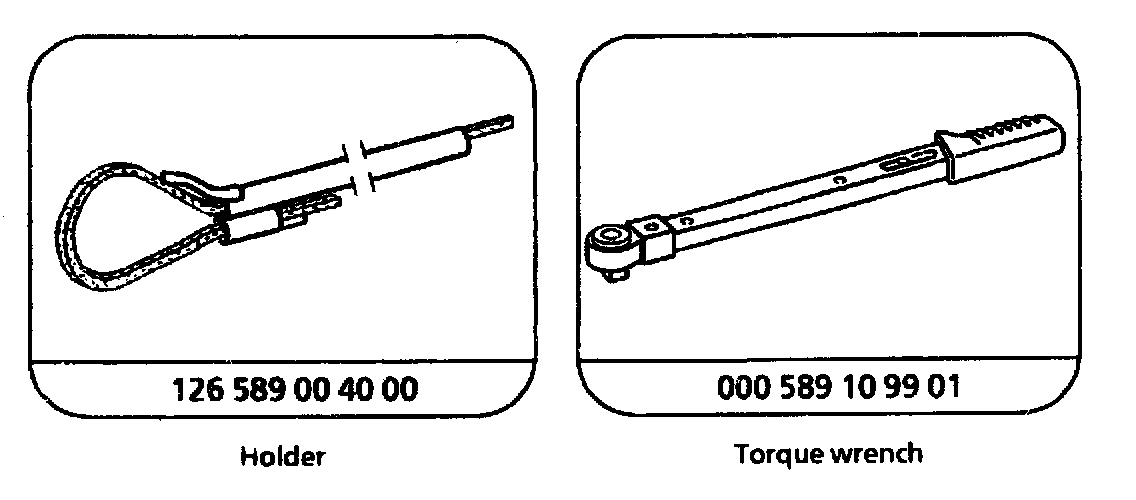

Special tools
