Electrical Diagrams

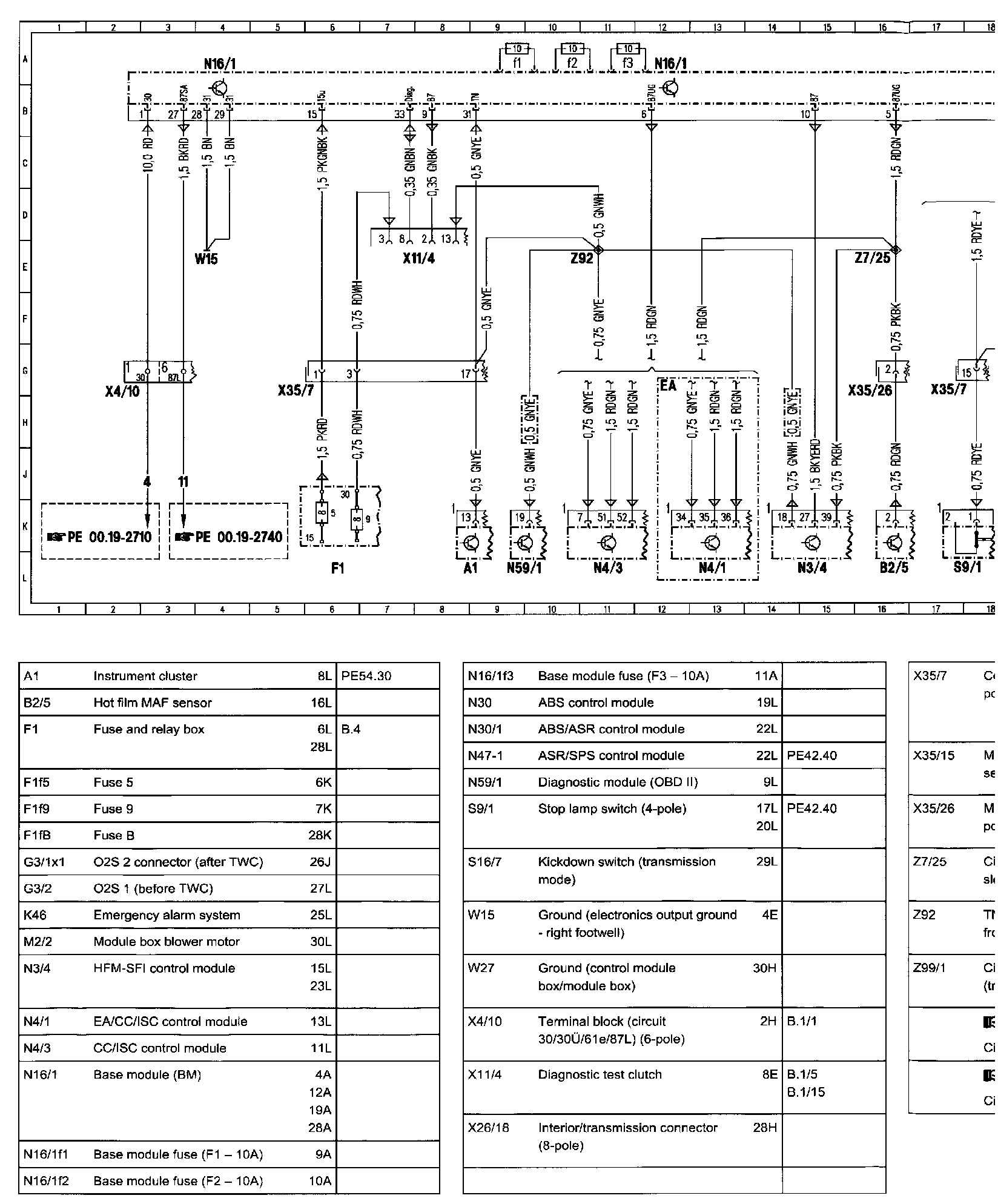

Wiring Diagram
��PE54.21-U-2400YA:

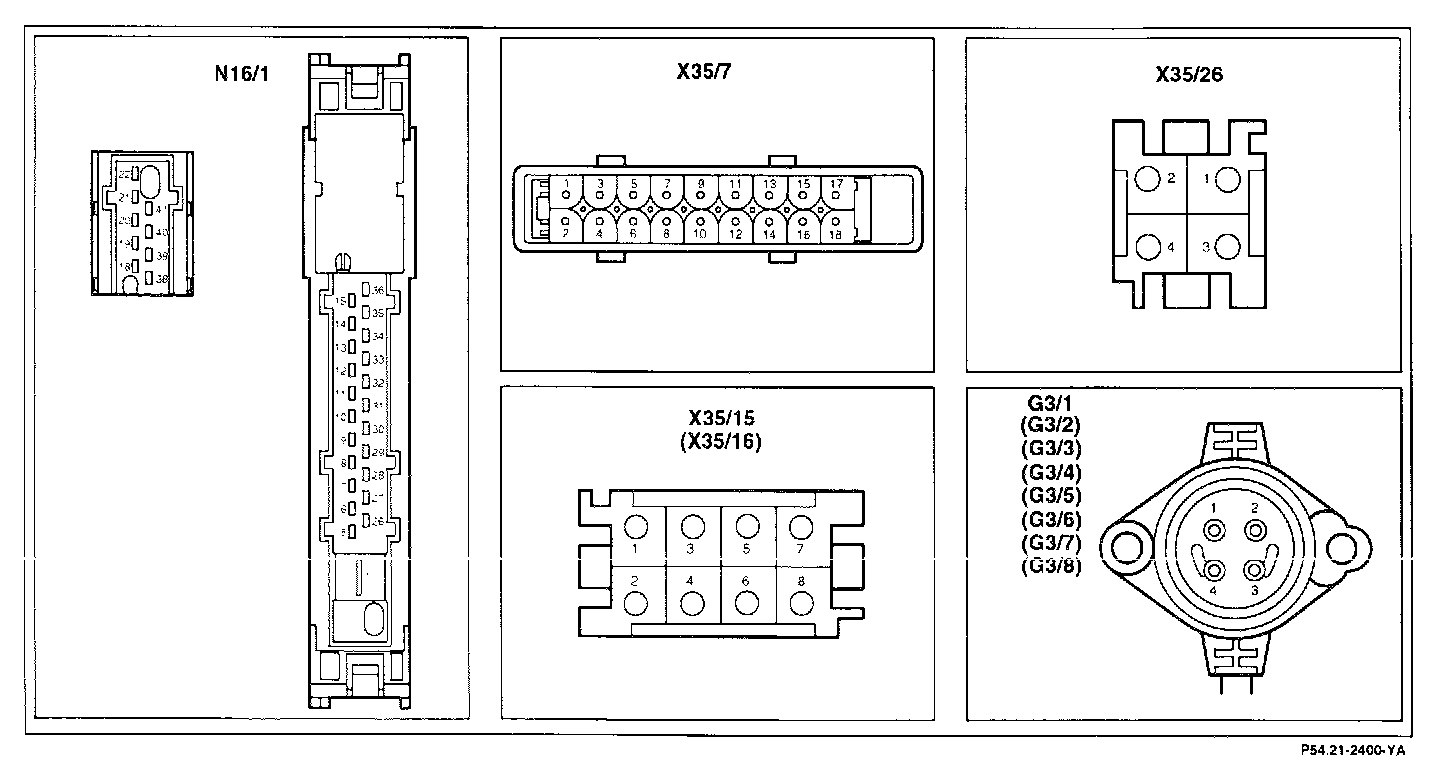

Connector Assignment:

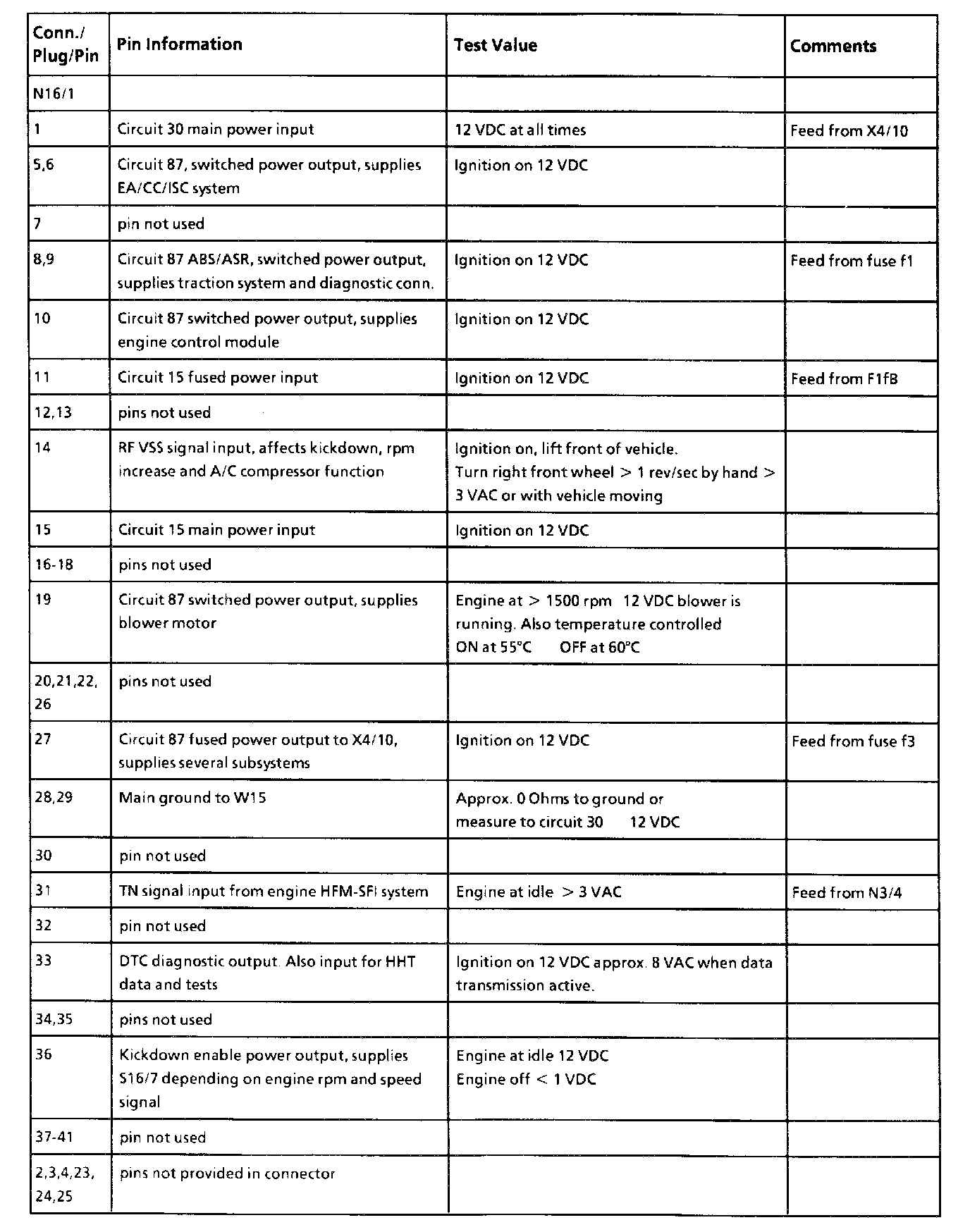

Pin Information:
All values measured to ground unless otherwise noted.
