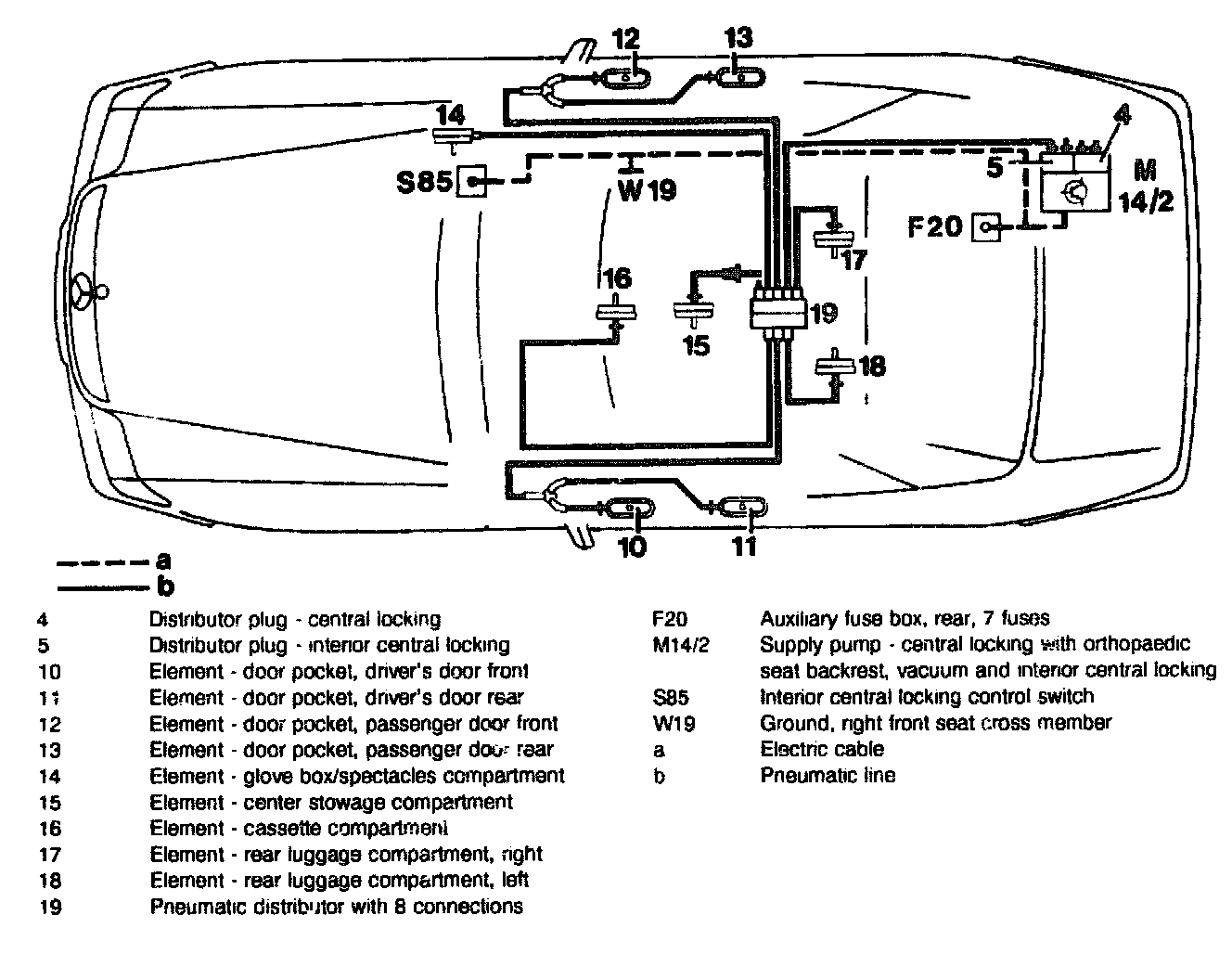

Function Diagram Of Interior Central Locking
Function Diagram Of Interior Central Locking
Version 1 up to 08/95
