Starter Motor: Service and Repair

Preliminary work:
Front and center noise encapsulation removed






Ground cable at battery
disconnect, connect.

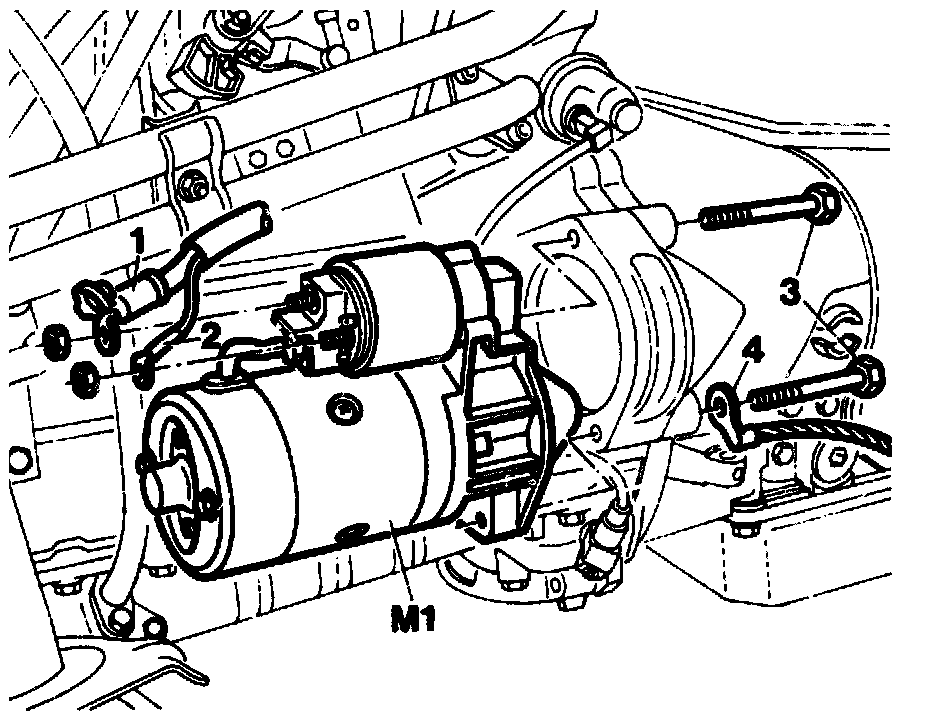

Electric cables (1 and 2) at starter (M1)
disconnect, connect.

Bolts (3)
unscrew, screw in.

Ground cable (4)
pull off, fit on.

Starter (M1)
take out, insert.
