Rear Door Window Motor: Service and Repair

Preliminary work:
Door liner on rear door removed. Refer to "Replacement of Door Liner". Removal and Replacement







Removal
Vapor seal below door liner
pull off.
Couplings (2 each) on window lift motor
pull off.

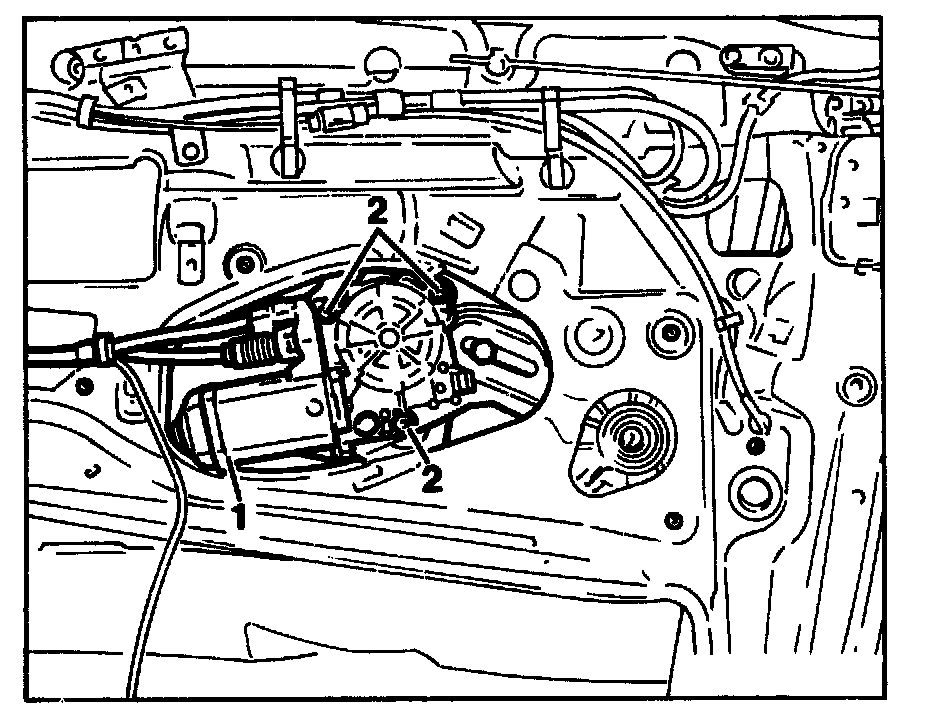

Cable strap (1)
open.
Intorx screws (2) (Tx 30)
screw out (9 Nm).
Window lift motor
remove.

Installation
Reinstall in opposite order.

! The window lift motor must be resynchronized (basic adjustment). For this purpose close window with window lift switch (automatic closing control does not function) and allow window to run against stop for 1-2 s.
