Output Shaft: Adjustments

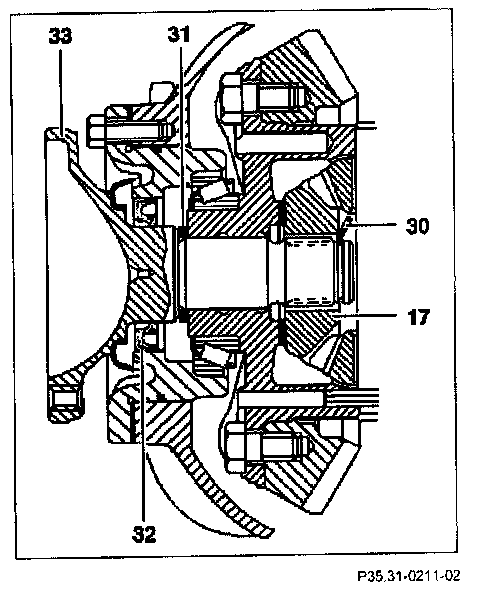

Check and adjust axial play of connecting flange






1. Check axial play between connecting flange (33) and rear axle side gear (17). If necessary install thinner or thicker C-spacer (30a)

Axial play between connecting flange and differential housing 0.03-0.3 mm

Note: End play must be within specified tolerance range.

Circlips are available in thicknesses ranging between 2.6 mm and 3.4 mm in graduations of 0.05 mm.
