Seat Belt Buckle: Service and Repair

Replacement of Belt Buckle (Front Seats)

Preliminary work:
Seat removed, refer to "Replacement of Driver's Seat". Service and Repair





Removal

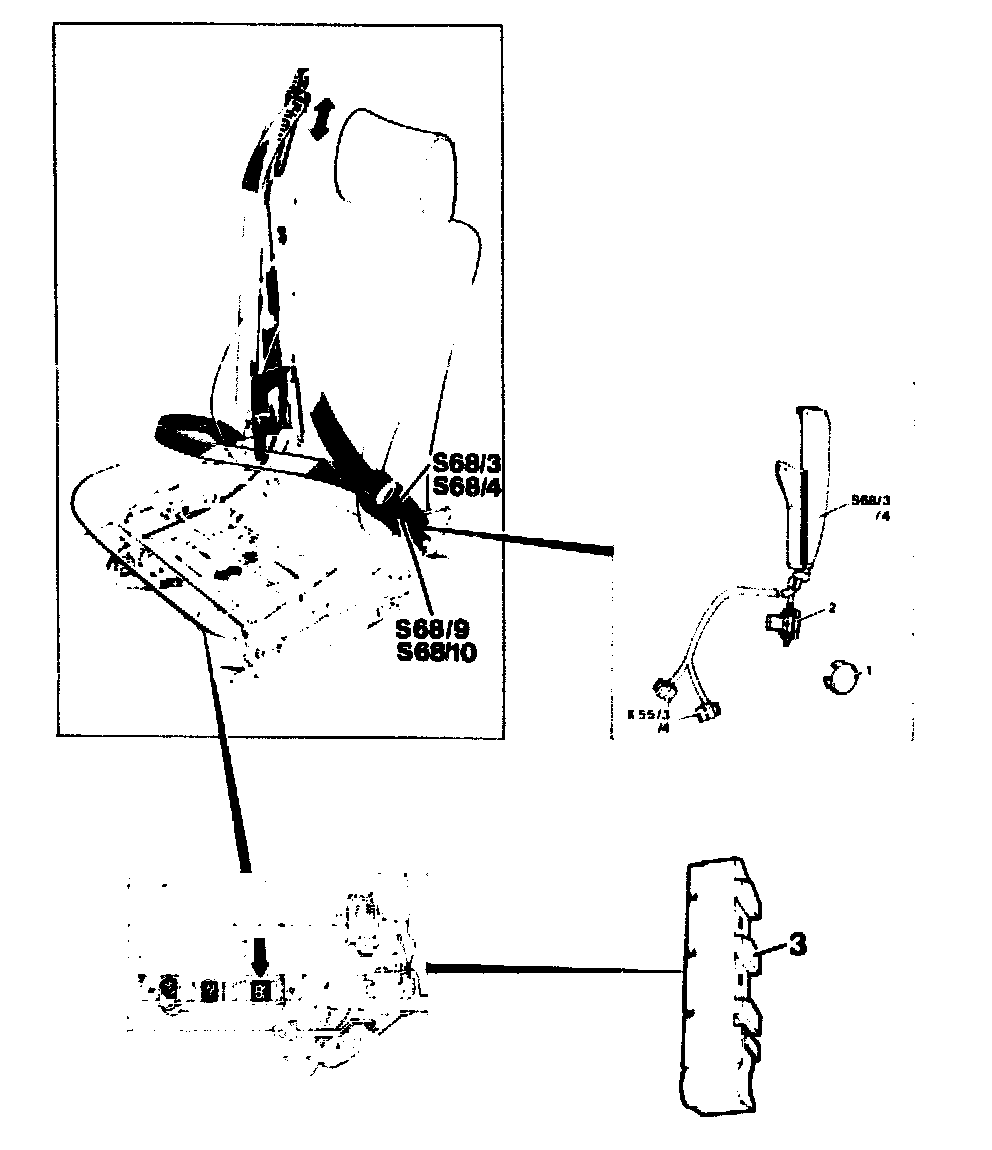

Cable duct, cable straps and insulating straps on bottom of seat
open.
Cover (3)
press off.
Plug connectors (arrows)
remove.
Cover (1)
press out with wedge.
Screw (2) on belt buckle
screw out and remove belt buckle together with wire.
Reinstall in opposite order.
