Air Injection Pump Relay: Description and Operation

PURPOSE
The electronic clutch of the air injection is controlled by the HFM-SFI control module via the air injection relay (K17). When air injection is required, the relay engages and sends power to the air injection clutch and switchover valve.

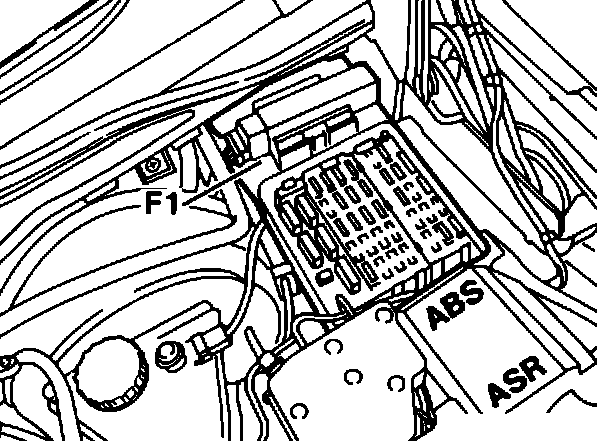

Fuse/Relay Box "F1":

FUSE AND RELAY BOX "F1"

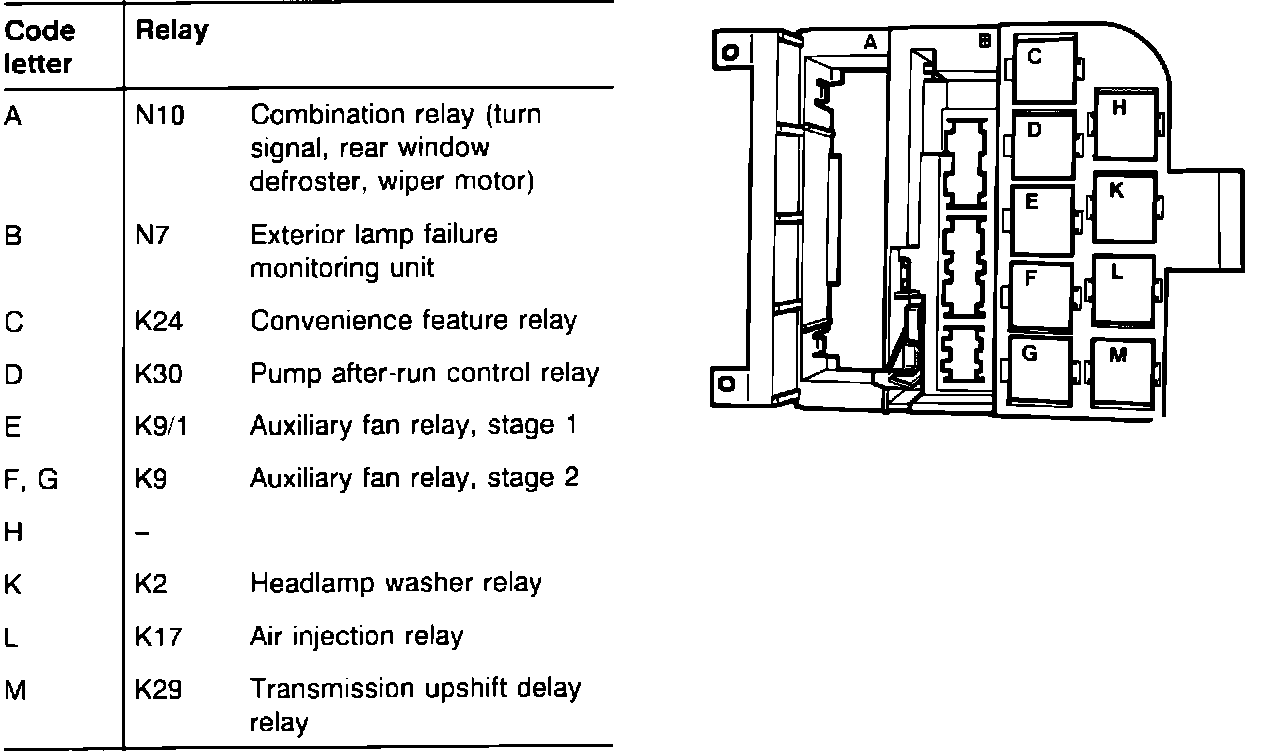

Relay I.D. In Fuse/Relay Box "F1":

AIR INJECTION RELAY (K17)
