With Ski Bag
With Ski Bag

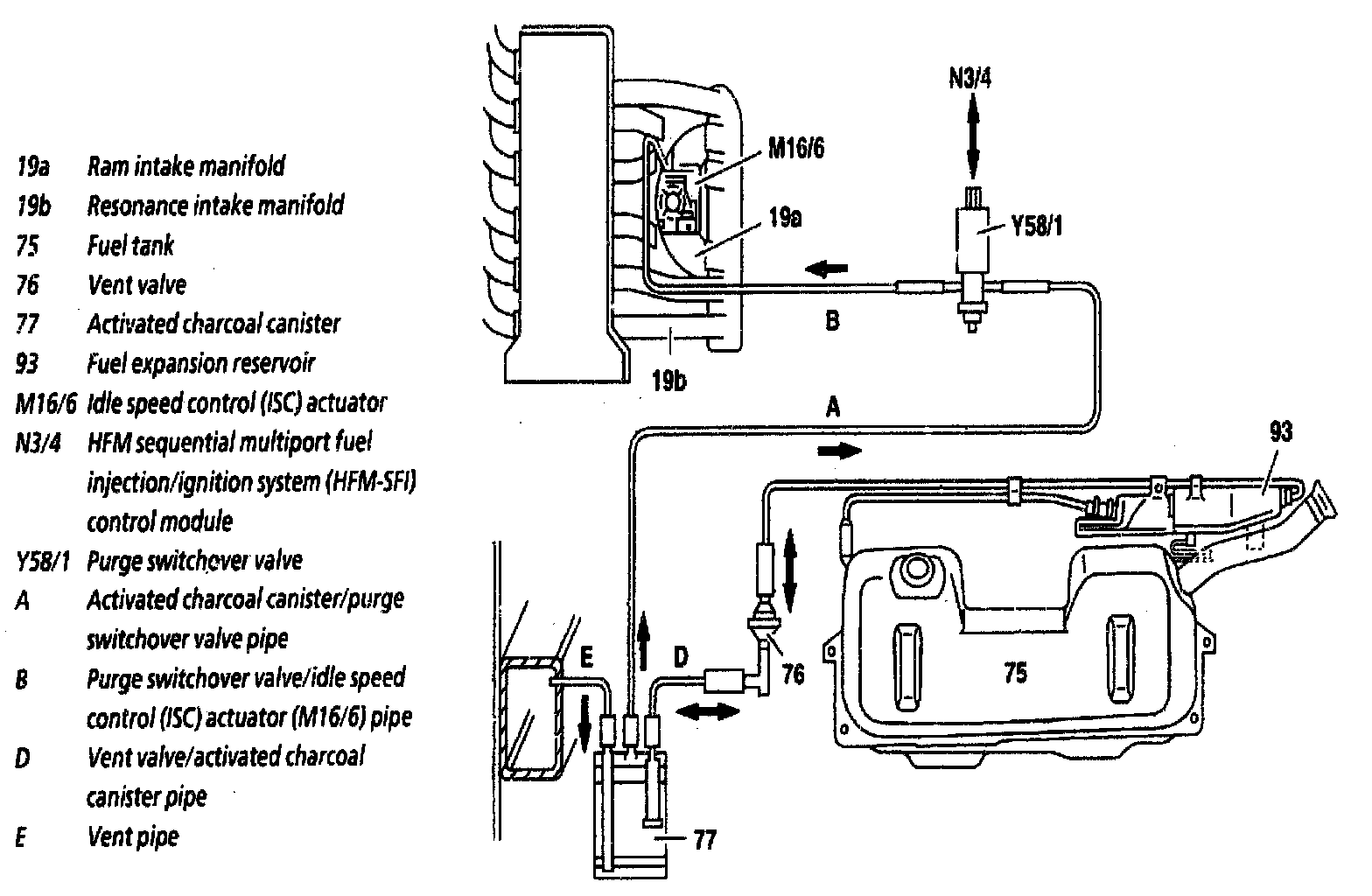

Connecting diagram of evaporation emission control system HFM-SFI
model 140, engine 104 with ski bag
