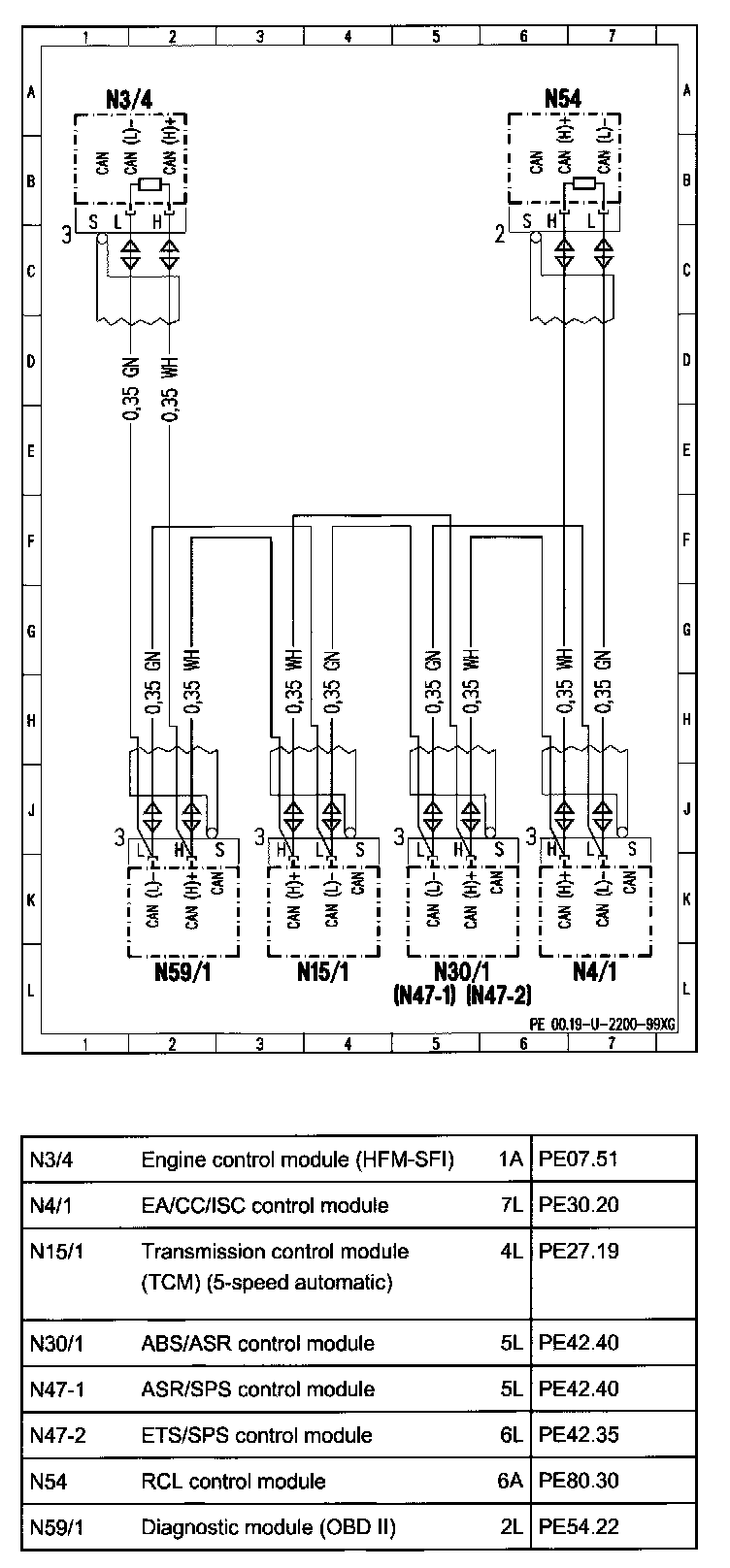

CAN Bus - Engine Compartment PE00.19-U-2200XG
CAN Bus - Engine Compartment PE00.19-U-2200XG
PE00.19-U-2200XG - Engine 104 HFM With AT 5, ASR:
